UD18 Ultrasonic distance sensors

UD18 ultrasonic distance sensor

water quality ultrasonic sensor

distance sensor with warranty

Hàng hiệu:

SICK

Số mô hình:

UD18

Liên hệ với chúng tôi

Yêu cầu Đặt giá

Chi tiết sản phẩm

Nhiệt độ môi trường xung quanh, hoạt động:

+5 °C ... +60 °C

Tần số chuyển đổi:

250 Hz / 100 Hz (tùy loại)

Loại đầu ra kỹ thuật số::

PNP/NPN (tùy loại)

Xếp hạng bao vây:

IP65

Trục gửi:

Thẳng / góc cạnh (tùy loại)

Làm nổi bật:

UD18 ultrasonic distance sensor

water quality ultrasonic sensor

distance sensor with warranty

Điều khoản thanh toán và vận chuyển

Số lượng đặt hàng tối thiểu

1 cái

chi tiết đóng gói

Mỗi đơn vị có hộp riêng lẻ và tất cả các hộp được đóng gói trong các gói tiêu chuẩn hoặc yêu cầu của

Thời gian giao hàng

5-8 NGÀY LÀM VIỆC

Điều khoản thanh toán

MoneyGram,Western Union,T/T,D/P,D/A,L/C

Khả năng cung cấp

1000 mảnh/mảnh mỗi tuần có thể thương lượng

Sản phẩm liên quan

UC12 Ultrasonic distance sensors

Nhận được giá tốt nhất

UC30 Ultrasonic distance sensors

Nhận được giá tốt nhất

UD18 Ultrasonic distance sensors

Nhận được giá tốt nhất

UM12 Ultrasonic distance sensors

Nhận được giá tốt nhất

Liên hệ với chúng tôi

Liên hệ ngay bây giờ

Mô tả sản phẩm

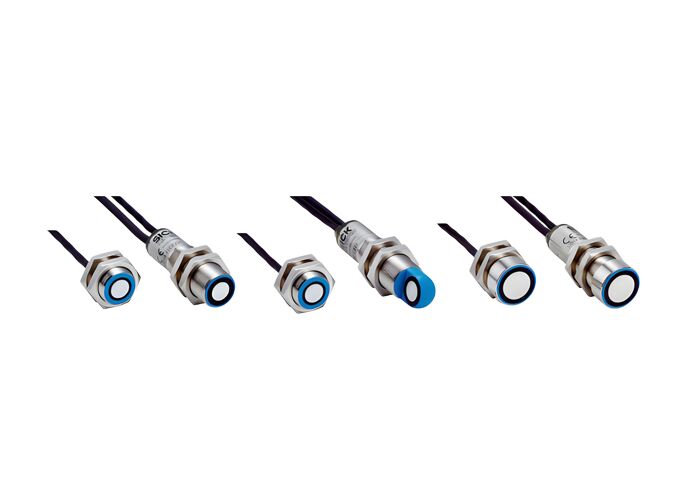

UD18 Ultrasonic Distance Sensors

The UD18 ultrasonic distance sensors specialize in double layer and splice detection for paper, cardboard, metal, and plastic materials. Using advanced ultrasonic technology, these sensors precisely determine whether one, two, or no material layers are present between the sender and receiver units.

Key Applications

The UD18-2 model excels at detecting double layers in challenging materials including paper, cardboard, shiny metal surfaces, and transparent plastics. With the ability to teach up to four sensitivity levels and switch between them during operation, these sensors handle complex applications while maintaining system availability and production quality.

Product Benefits

Maximum productivity and quality through reliable material transportation monitoring
Rapid commissioning with plug-and-play functionality and multiple sensitivity levels
Easy sensitivity level switching during operation prevents downtime during material changes
Individual material teach-in capability for demanding applications
Flexible installation with variable mounting distances
Multi-directional LED indicators for easy monitoring of double sheet detections
Reliable performance in dirty, dusty, and humid environments due to ultrasonic technology immunity

Technical Features

Material classification: no layers, single layer, double layers
Plug-and-play operation with selectable, teachable sensitivity levels
Up to four individual sensitivity levels
Variable mounting distance flexibility
Multi-directional LED visibility
Immunity to dirt, dust, and humidity

Technical Parameters

Parameter	Specification
Resolution	1 material layer
Response time	2.5 ms ... 5.5 ms¹ (depending on type)
Output time	2 ms ... 5 ms, trigger mode: < 0.5 ms¹ (depending on type)
Switching frequency	250 Hz / 100 Hz (depending on type)
Digital output	Type: PNP / NPN (depending on type)
Enclosure rating	IP65
Sending axis	Straight / angled (depending on type)
Ambient temperature, operation	+5 °C ... +60 °C

¹ Values vary by specific model type

Model Selection Guide

Product Variant	Part No.	Digital Output	Measuring Frequency	Switching Frequency	Response Time	Connection Type
UD18-22CC241	6058911	NPN	400 kHz	250 Hz	2.5 ms	Connection cable with open end: 7 x 0,25 mm², 2 m, PUR, sender: connection cable to receiver with M8 male connector, 3-pin, 1 m, PUR, receiver: connection cable to sender with M8 female connector, 3-pin, 1.2 m, PUR
UD18-22DC221	6058914	PNP	200 kHz	100 Hz	5.5 ms	Connection cable with open end: 7 x 0,25 mm², 2 m, PUR, sender: connection cable to receiver with M8 male connector, 3-pin, 1 m, PUR, receiver: connection cable to sender with M8 female connector, 3-pin, 1.2 m, PUR
UD18-22CC221	6058910	PNP	400 kHz	250 Hz	2.5 ms	Connection cable with open end: 7 x 0,25 mm², 2 m, PUR, sender: connection cable to receiver with M8 male connector, 3-pin, 1 m, PUR, receiver: connection cable to sender with M8 female connector, 3-pin, 1.2 m, PUR
UD18-22CC242	6058913	NPN	400 kHz	250 Hz	2.5 ms	Connection cable with open end: 7 x 0,25 mm², 2 m, PUR, sender: connection cable to receiver with M8 male connector, 3-pin, 1 m, PUR, receiver: connection cable to sender with M8 female connector, 3-pin, 1.2 m, PUR
UD18-22DC241	6058915	NPN	200 kHz	100 Hz	5.5 ms	Connection cable with open end: 7 x 0,25 mm², 2 m, PUR, sender: connection cable to receiver with M8 male connector, 3-pin, 1 m, PUR, receiver: connection cable to sender with M8 female connector, 3-pin, 1.2 m, PUR
UD18-22CC222	6058912	PNP	400 kHz	250 Hz	2.5 ms	Connection cable with open end: 7 x 0,25 mm², 2 m, PUR, sender: connection cable to receiver with M8 male connector, 3-pin, 1 m, PUR, receiver: connection cable to sender with M8 female connector, 3-pin, 1.2 m, PUR
