Hàng hiệu:
Honeywell
Số mô hình:
Mẫu P-30-P

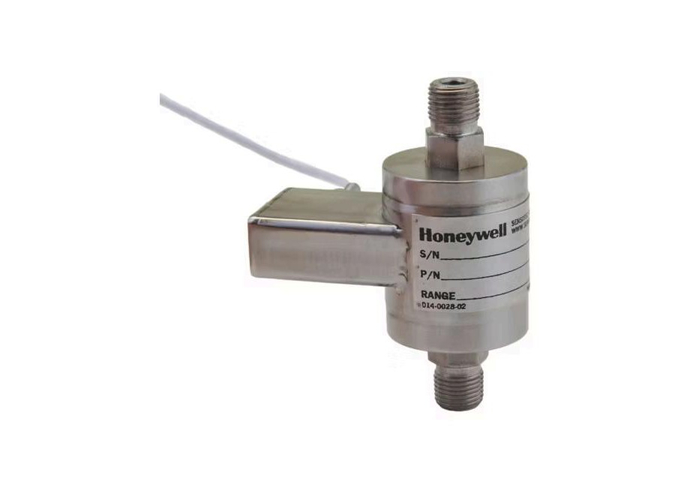

The Model P-30-P wet/wet differential pressure transducer is a subminiature unit uniquely suited for aerospace, chemical, or nuclear applications. This precision instrument features small size, bidirectional overload protection, wide temperature compensation, high natural frequencies, and is manufactured from 17-4 PH stainless steel wetted material.
| Characteristic | Measure |
|---|---|
| Pressure ranges (psid) | 5, 10, 15, 25, 50, 75, 100, 150, 200, 300, 500, 750, 1000, 2000 |
| Accuracy | ±0.3% full scale |
| Linearity | ±0.2% full scale (typical) |
| Hysteresis | ±0.1% full scale (typical) |
| Non-repeatability | ±0.1% full scale (typical) |
| Output (standard) |
5 psid to 25 psid: 100 mV (nominal) 50 psid to 2000 psid: 2 mV/V (nominal) |
| Line pressure |
5 psid to 25 psid: 250 psi 50 psid to 2000 psid: 500 psi or 2X full scale (whichever is higher) up to 2000 psi |
| Resolution | Infinite |
| Characteristic | Measure |
|---|---|
| Temperature, operating | -54°C to 121°C [-65°F to 250°F] |
| Temperature, compensated | 16°C to 71°C [60°F to 160°F] |
| Temperature effect, zero |
5 psid to 25 psid: ±2.0% full scale/100°F 50 psid to 2000 psid: ±1.0% reading/100°F |
| Temperature effect, span |
5 psid to 25 psid: ±2.0% full scale/100°F 50 psid to 2000 psid: ±1.0% reading/100°F |
| Characteristic | Measure |
|---|---|
| Strain gage type |
5 psid to 25 psid: Bonded semiconductor 50 psid to 2000 psid: Bonded foil |
| Excitation (calibration) | 10 Vdc |
| Bridge resistance |
5 psid to 25 psid: 500 ohm 50 psid to 2000 psid: 350 ohm |
| Shunt calibration data | Included |
| Elec. termination (std) | Teflon cable 1.5 m [5 ft] |
| Characteristic | Measure |
|---|---|
| Media | Gas, liquid |
| Overload-safe | Max. line pressure either side |
| Pressure port | 1/8-27 NPT male: 7/16 hex |
| Wetted parts material | 17-4 PH stainless steel |
| Case material | Stainless steel |
| Range Code | Range | Range Code | Range |
|---|---|---|---|
| AT | 5 psid | CJ | 150 psid |
| AV | 10 psid | CL | 200 psid |
| BJ | 15 psid | CP | 300 psid |
| BL | 25 psid | CR | 500 psid |
| BN | 50 psid | CT | 750 psid |
| BP | 75 psid | CV | 1000 psid |
| BR | 100 psid | DL | 2000 psid |
| Wire Color | Connection |
|---|---|
| Red | (+) excitation |
| Black | (-) excitation |
| Green | (-) output |
| White | (+) output |
