Số mô hình:
Mô hình 427

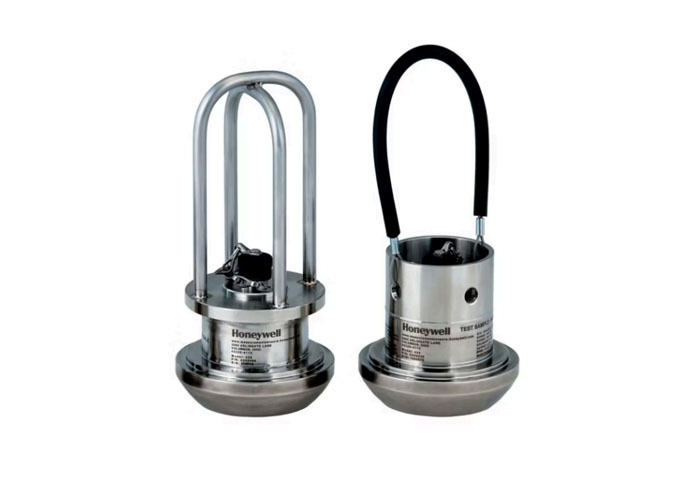

Honeywell's Model 427 Wing Union Pressure Transmitter is a robust and durable solution designed for both onshore and offshore installations. Featuring a 1502 Wing Union, this transmitter incorporates a newly designed pressure port with wider diameter and shallower depth, enabling viscous mud to pass through without residue buildup.
The transmitter delivers maximum accuracy of ±0.2% BFSL (Best Fit Straight Line), providing continuous, high-precision pressure measurement for critical oil industry applications including drilling operations. Its independent pressure-sensing diaphragm minimizes zero drift during torquing and eliminates long-term signal deviation in electric fields.
The fully welded construction with patented electron beam welding process ensures superior seal integrity under all conditions. The integrated wing union design and special assembly process provide exceptional vibration and shock resistance for reliable operation in harsh environments.
| Pressure Specifications | ||
|---|---|---|
| Pressure Range | 0 psi to 5000 psi; 0 psi to 6000 psi; 0 psi to 10000 psi; 0 psi to 15000 psi; 0 psi to 20000 psi; 0 bar to 350 bar; 0 bar to 400 bar; 0 bar to 700 bar; 0 bar to 1000 bar; 0 bar to 1350 bar | |
| Accuracy | ±0.2% of Best Fit Straight Line (BFSL) | |
| Calibration | 5-point calibration: 0%, 50%, and 100% of Full Scale (FS) | |
| Output | 4mA to 20mA, 2-wire measurement range | |
| Environmental Specifications | ||
| Operating Temperature | -43℃ to 93℃ (-45℉ to 200℉) | |
| Compensation Temperature | -34℃ to 82℃ (-30℉ to 180℉) | |
| Temperature Effect - Zero | 0.018% of Full Scale (FS)/℃ (0.01% of Full Scale (FS)/℉) | |
| Temperature Effect - Span | 0.018% of Reading/℃ (0.01% of Reading/℉) | |
| Sealing | Hermetic IP68/NEMA 6P | |
| Electrical Specifications | ||
| Supply Voltage | 9 Vdc to 28 Vdc | |
| Insulation Resistance | > 100 mΩ at 50 Vdc | |
| Maximum Loop Resistance | Linearity from 950 Ω (at 28V) down to 0 Ω (at 9V) | |
| Circuit Protection | Reverse polarity protection for power supply wires | |
| RFI/EMI Protection | Noise immunity from 5000 Hz to 1GHz | |
| Frequency Response | Customer-specified and factory-installed filters for minimization; frequency response from 10Hz up to 2500Hz max | |
| Zero & Span Adjustable | Field adjustable by removing the connector | |
| Shunt Calibration Data | Included | |
| Electrical Terminals (Standard) | Compatible with MS series, 4-pin, with connector; made of stainless steel dedicated to the oil and gas industry, providing full sealing | |
| Mechanical Specifications | ||
| Media | Corrosive and abrasive service, Inconel X-750 | |
| Overload, Safety | 150% of rated full-scale pressure or limit of 1502 fittings | |
| Overload, Burst | 300% of rated pressure or limit of 1502 fittings | |
| Pressure Port | 1502 Wing Union, 51mm [2in] pipe, male end with external threads | |
| Orifice Diameter | 22.86 mm [0.9 in] inner diameter * 10.16 mm [0.4 in] depth; 25.4 mm [1.0 in] inlet diameter | |
| Wetted Material | Inconel X-750 | |
| Weight | 2722 g [6 lb] | |
| Housing Material | 316L (stainless steel with labels featuring molded and embossed characters) | |
