Name: Honeywell 434 435 437 Series Wing Union Hammer Union Pressure Transducer with Weco® 1502/2002/2202 Compatibility 4-20mA Output and 9-28Vdc Supply Voltage
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 434, 435, 437
Price: 152.00 USD
Availability: InStock

Nhà > các sản phẩm > Cảm biến áp suất chính xác >

Honeywell 434 435 437 Series Wing Union Hammer Union Pressure Transducer with Weco® 1502/2002/2202 Compatibility 4-20mA Output and 9-28Vdc Supply Voltage

9 Vdc to 28 Vdc Supply Voltage Wing Union Pressure Transducer

4 mA to 20 mA Output Signal Wing Union Pressure Transducer

4 mA ±0.2 %FSS Output at Null Pressure Wing Union Pressure Transducer

Hàng hiệu:

Honeywell

Chứng nhận:

Số mô hình:

434, 435, 437

Liên hệ với chúng tôi

Yêu cầu Đặt giá

Honeywell 434 435 437 Series Wing Union Hammer Union Pressure Transducer with Weco® 1502/2002/2202 Compatibility 4-20mA Output and 9-28Vdc Supply Voltage

Chi tiết sản phẩm

Cung cấp điện áp:

9 VDC đến 28 VDC

Tín hiệu đầu ra:

4 mA đến 20 mA

Đầu ra ở áp suất null:

4 Ma ± 0,2 %FSS

Điện trở cách nhiệt:

> 100 mohm tại 20 VDC

Tối đa. Điện trở vòng:

950 ohm @ 28 V giảm tuyến tính xuống 0 ohm @ 9 v

Làm nổi bật:

9 Vdc to 28 Vdc Supply Voltage Wing Union Pressure Transducer

4 mA to 20 mA Output Signal Wing Union Pressure Transducer

4 mA ±0.2 %FSS Output at Null Pressure Wing Union Pressure Transducer

Điều khoản thanh toán và vận chuyển

Số lượng đặt hàng tối thiểu

1pcs

chi tiết đóng gói

Mỗi đơn vị có hộp riêng lẻ và tất cả các hộp được đóng gói trong các gói tiêu chuẩn hoặc yêu cầu của

Thời gian giao hàng

5-8 ngày làm việc

Điều khoản thanh toán

L/C, D/A, D/P, T/T, Liên minh phương Tây, Moneygram

Khả năng cung cấp

1000 mảnh/mảnh mỗi tuần có thể thương lượng

Sản phẩm liên quan

Honeywell 434 435 437 Series Wing Union Hammer Union Pressure Transducer with Weco® 1502/2002/2202 Compatibility 4-20mA Output and 9-28Vdc Supply Voltage

Nhận được giá tốt nhất

Honeywell Model DS Digital Pressure Transducer with 0.1% Accuracy 1200 Hz Analog Response and 380 Readings/Second

Nhận được giá tốt nhất

Honeywell Model Z Pressure Transducer with 0.25% Accuracy 0.5 to 60,000 psig/a Range and Stainless Steel Construction

Nhận được giá tốt nhất

Honeywell Model A-105 Pressure Transducer with 100 psi to 15,000 psi Range 0.50% Full-Scale Accuracy and 17-4 PH Stainless Steel Construction

Nhận được giá tốt nhất

Liên hệ với chúng tôi

86--17719566736

Liên hệ ngay bây giờ

Mô tả sản phẩm

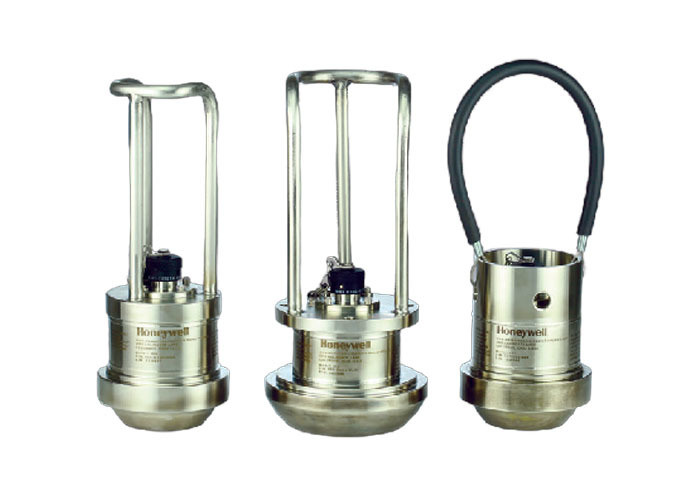

Honeywell 434, 435, 437SERIES Wing Union/Hammer Union Pressure Transducers

Product Overview

Models 434/435/437 Wing Union/Hammer Union Pressure Sensors are engineered for demanding oil and gas applications including stimulation and circulation systems. Featuring an all-welded stainless steel construction with integrated sensor diaphragm and wing union fitting, these transducers provide superior hermetic integrity and minimize media leakage compared to multi-piece designs.

Key Differentiators

High or standard accuracy options for tighter system requirements
Shunt calibration option enhances configurability and reduces installation costs
IEC Ex approval for hazardous area use in multiple regions
Protective cage option available
Robust welded construction for durability

Customer Benefits

Durable: Weco® Wing Union-compatible fittings in Inconel® X-750 or NACE-compliant Inconel® 718 withstand abrasive and corrosive media
Reliable: All-welded stainless steel assembly with shock/vibration ratings and isolated pressure sensing diaphragm
Accurate: High accuracy option enables precise pressure measurement for operational adjustments
Global Support: Worldwide manufacturing and service capabilities

Applications

Acidizing, choke manifold, fracturing and cementing, measurement while drilling (MWD), mud pumps/mud logging, new well development and extraction, oil and gas drilling, service and cement trucks, standpipe, stimulation, well head measurement.

Technical Features

Pressure ranges: 0-20,000 psi (0-1,350 bar)
High accuracy ±0.1% FSS BFSL (Model 435)
Standard aperture (Models 434/435) and wide aperture (Model 437) pressure ports
Inconel® X-750 or NACE-compliant Inconel® 718 wetted parts
Multiple electrical connector options
WECO® 1502, 2002, 2202 pressure connections
RFI/EMI protected with CE approval

Performance Specifications

Characteristic	Parameter
Pressure ranges (Models 435/437)	0-20,000 psi; 0-1,350 bar (working pressure limited to 15,000 psi/1,000 bar)
Pressure ranges (Model 434)	0-20,000 psi; 0-1,350 bar
Accuracy	High accuracy: ±0.1% FSS (Model 435); Standard accuracy: ±0.2% FSS
Calibration	Standard 5-point calibration; 10/20 point options available
Output	4-20 mA, two-wire
Resolution	Infinite

Environmental Specifications

Characteristic	Parameter
Temperature, operating	-40°C to 125°C [-40°F to 257°F]
Temperature, compensating	-40°C to 85°C [-40°F to 185°F]
Temperature effect, zero	<±0.018% FSS/°C [0.01% FSS/°F]
Temperature effect, span	<±0.018% reading/°C [0.01% reading/°F]
Temperature effect, sealing	IP68 / NEMA 6P

Mechanical Specifications

Characteristic	Parameter
Media	Corrosive and abrasive service, Inconel® X-750 or NACE-compliant Inconel® 718
Overload, safe	150% rated full scale pressure or limit of Weco® 1502 fitting
Overload, burst	250% rated full scale pressure or limit of Weco® 1502 fitting
Pressure port	Weco® 1502, 2002, and 2202 wing union, 51 mm [2 in] pipe, male sub end
Weight (approx.)	4.85 lb [2.2 kg]
