Place of Origin:
China
Hàng hiệu:
KACISE
Chứng nhận:
CE
Model Number:
KCZ-301

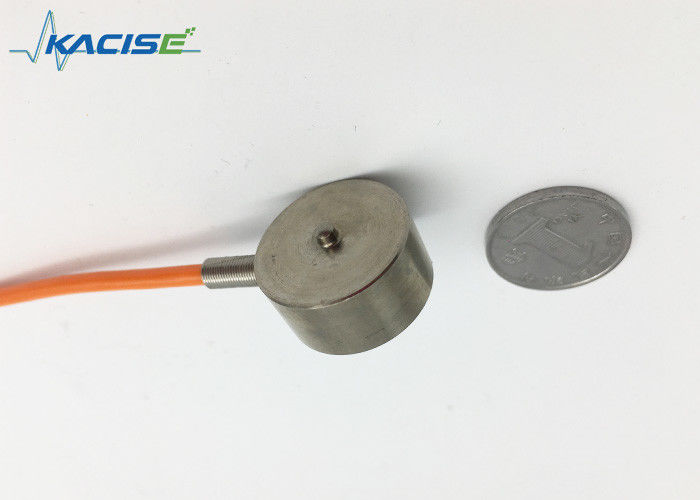

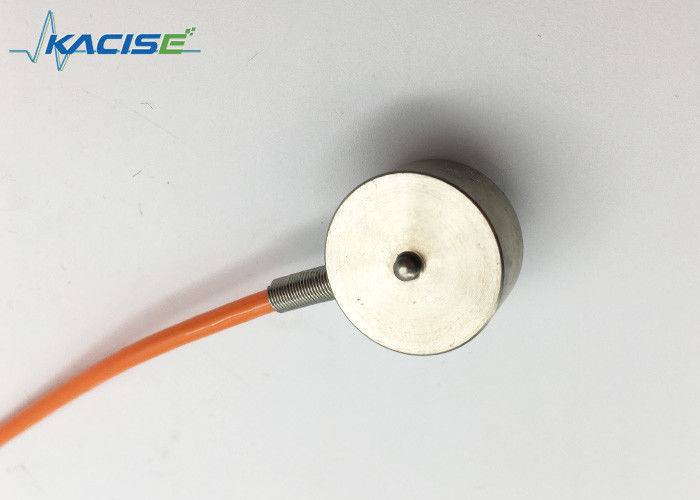

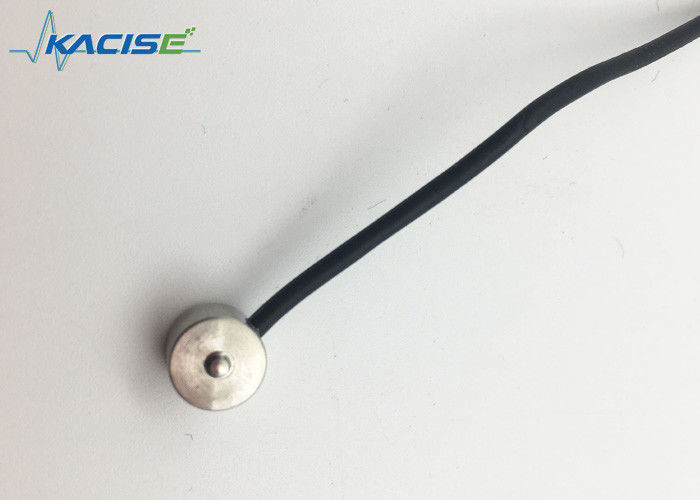

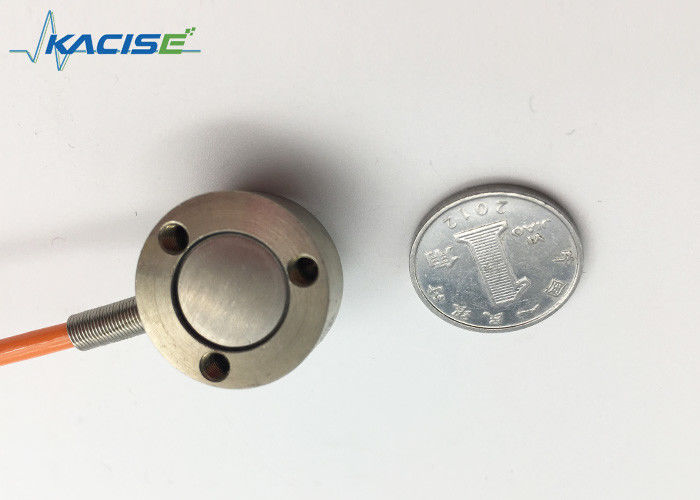

Stainless Steel KCZ-501 Membrane Box Load Cell For Medical Testing
Features
Small defromation with strong ability of anti-side force;
Made of stainless steel;
Applications
Compression application;
Can be used for industrial polishing;
Suitable for automotive press fit, automated assembly, 3C products testing, new energy product assembly, medical testing, robotics and other industrial testing and control system
High dynamic response frequency.
Technical Specifications
| Capacity | 0.5, 1, 2, 3, 5, 10, 20, 30, 50, 100kN |
| Sensitivity | 1.5±10%mV/V |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.1%F.S |
| Hysteresis | 0.1%F.S |
| Repeatability | 0.05%F.S |
| Creep (30min) | 0.1%F.S |
| Temp.effect on output | 0.05%F.S/10℃ |
| Temp.effect on zero | 0.05%F.S/10℃ |
| Input impedance | 780±10Ω |
| Output impedance | 700±5Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 150%F.S |
| Ultimate overload | 300%F.S |
| Cable size | Φ4x4000mm |
| Material | Stainless steel |
| IP class | IP68 |
| Capacity | 0.5, 1, 2, 3, 5, 10, 20, 30, 50, 100kN |
| Sensitivity | 1.5±10%mV/V |
| Zero balance | ±2%F.S. |
Mounting dimension
| Cap (kN) | A | B | C | D | E | F | G | H | K | M | Weight |
| 0.5, 1,2,3,5,10 | 54 | 50 | 34 | 8.5 | 5 | 13 | 5.5 | 47 | 42 | 8-M5 | 0.8kg |
| 20, 30, 50, 100 | 95 | 90 | 55 | 15 | 5.5 | 20 | 11 | 72 | 70 | 16-M5 | 2kg |
Dimensions and Connection
