Nguồn gốc:
Thụy Sĩ
Hàng hiệu:
Endress+Hauser
Chứng nhận:
CE
Số mô hình:

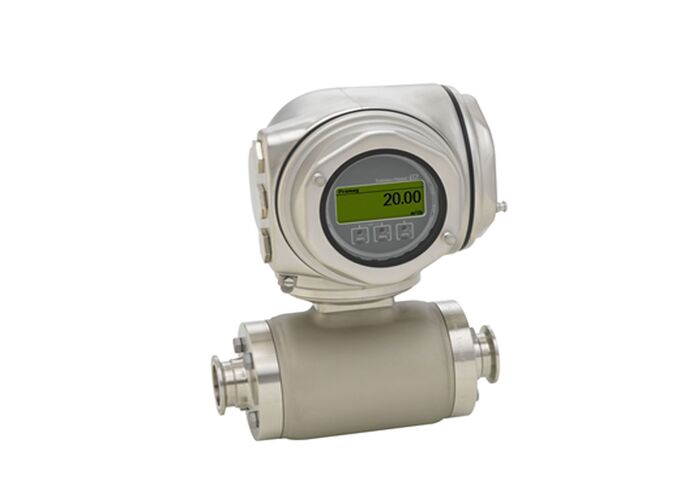

Proline Promag H 300
| Measuring Principle | Electromagnetic |
| Nominal Diameter Range | DN 2 to 150 (¹⁄₁₂ to 6) |
| Measuring Range | 0.06 dm³/min to 600 m³/h (0.015 gal/min to 2,650 gal/min) |
| Max. Measurement Error | Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s) Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s) |
| Medium Temperature Range | -20 to +150 °C (-4 to +302 °F) |
| Max. Process Pressure | PN 40, Class 150, 20K |
| Ambient Temperature Range | -40 to +60 °C (-40 to +140 °F) |
| Hazardous Area | ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC; JPN, UK Ex, KC |
| Product Safety | CE, C-tick, EAC marking |
| Functional Safety | IEC 61508, applicable in safety-relevant applications per IEC 61511 |
| Metrological | Calibration per ISO/IEC 17025; Heartbeat Technology complies with ISO 9001:2015 requirements |
| Marine | LR, DNV, ABS, BV approvals |
| Pressure | PED, CRN |
| Material | 3.1 material certificate |
| Hygienic | EHEDG, 3-A, liner and seals per FDA, cGMP |
