Nguồn gốc:
Thụy Sĩ
Hàng hiệu:
Endress+Hauser
Số mô hình:

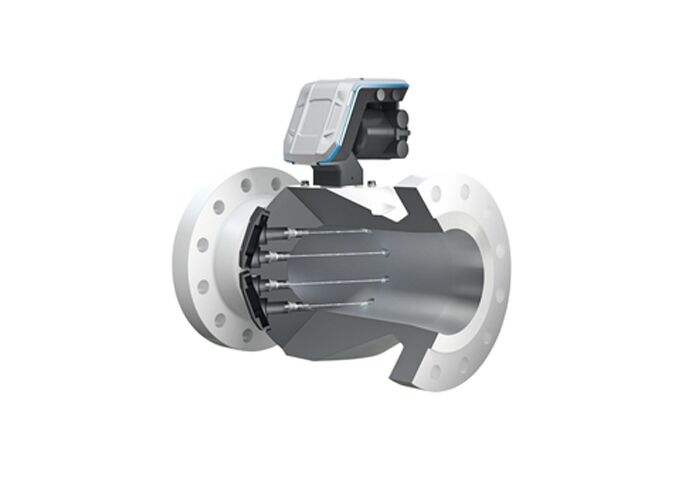

FLOWSIC600-XT
| Measured Variables | Volumetric flow a.c., volume a.c., gas velocity, speed of sound, optional volume correction via integrated electronic volume corrector (EVC) |
| Measuring Medium | Natural gas (with up to 30% hydrogen), air, natural gases containing increased levels of CO₂, N₂, H₂S, O₂, H₂ |
| Nominal Pipe Size | 3″ ... 56″ (DN 80 ... DN 1400), other nominal pipe sizes on request |
| Repeatability | ≤ 0.05% of the measured value (typical) |
| Accuracy |
4-path and 8-path version ≤ ±0.5% | (≤ ±1%) Dry-calibrated 4-path and 8-path version ≤ ±0.2% | (≤ ±0.5%) After flow calibration and alignment using constant factor 4-path and 8-path version ≤ ±0.1% | (≤ ±0.2%) After flow calibration and alignment using polynomial or piecewise correction |
| Medium Temperature Range | -46°C ... +180°C / -51°F ... +356°F On request: -194°C ... +280°C / -381°F ... +536°F |
| Operating Pressure Range | 0 bar (g) ... 450 bar (g) / 0 psi (g) ... 6527 psi (g) |
| Digital Outputs | 4 outputs: 2 x status, 2 x pulse: ≤ 30 V, 50 mA Passive, electrically isolated, open collector or conforming to NAMUR (DIN EN 60947-5-6), fmax = 10 kHz (scalable) |
| Digital Communication | Modbus TCP |
