Nguồn gốc:
Trung Quốc
Hàng hiệu:
kacise
Chứng nhận:
ce
Số mô hình:
TDLAS302

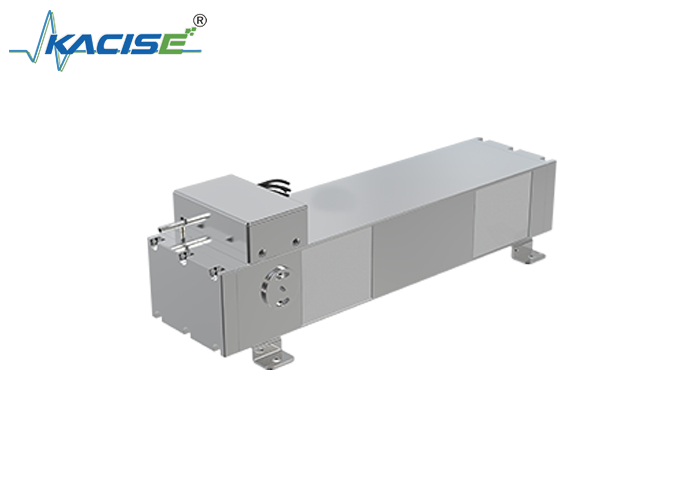

The TDLAS302 Series Laser Methane Sensor is a high-performance gas analysis sensor independently developed by KACISE. Based on Tunable Diode Laser Absorption Spectroscopy (TDLAS302) technology, it features a high-performance probe and specially processed gas chamber, offering:
The sensor incorporates a temperature compensation algorithm to eliminate environmental interference, ensuring stable operation in harsh conditions and complex gas environments. Its modular design simplifies installation, while the TTL communication interface enables easy calibration and adjustment. The low-power design facilitates maintenance and customer integration.
| Parameter | Specification |
|---|---|
| Test Gas | Methane (CH₄) |
| Detection Principle | Tunable Diode Laser Absorption Spectroscopy (TDLAS302) |
| Measurement Range | 0-1000 ppm |
| Measurement Accuracy | 5 ppm + 2% reading |
| Resolution | 0.1 ppm |
| Warm-up Time | < 10 s |
| Operating Temperature | -20℃ to 60℃ |
| Operating Humidity | 0-98% RH (non-condensing) |
| Operating Pressure | 80 kPa - 120 kPa |
| Operating Voltage | 3.2 V - 5.5 V |
| Operating Current | < 100 mA (@25℃, 3.3 V) |
| Output | TTL (3.3 V) |
| Storage Conditions | -40℃ to 85℃, 0-98% RH (non-condensing) |
| Product Dimensions (L*W*H) | 278 * 97 * 84 mm |
