Hàng hiệu:
Honeywell
Số mô hình:
Dòng 24CE
| Characteristic | Parameter |
|---|---|

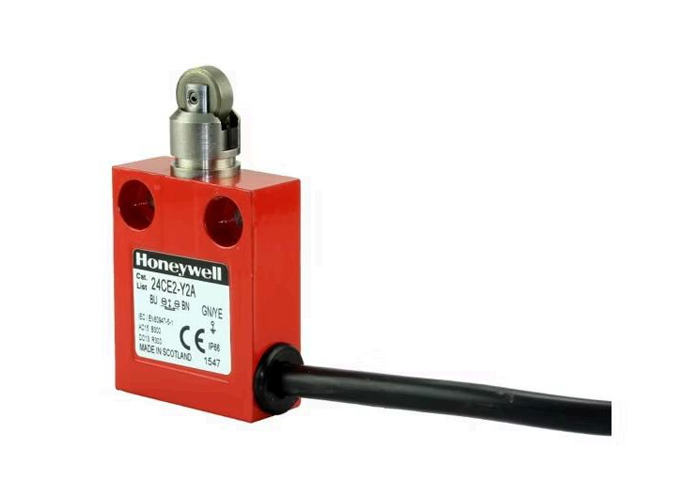

| Description | Miniature safety electromechanical switch |
| Certifications | CE, UKCA, IEC/EN 60947-5-1 |
| Housing material | Epoxy coated die-cast zinc |
| Actuators | Multiple options including pin plunger, roller plunger (parallel/perpendicular), rotary, and ball-bearing plunger variants |
| Terminations | 3-core or 5-core harmonised Cenelec cable |
| Contact options | 1NC/1NO BBM, 1NC/1NO MBB, 1NC (all normally closed contacts are positive opening) |
| Contact type | Slow action |
| Contact material | Silver alloy (gold-plated optional) |
| Utilization category | AC15, B300: DC13, R300 |
| Rated operational voltage (Ue) | 240 V ac or dc |
| Rated operational current | 1.5 A, 0.1 A |
| Rated thermal current (Ith) | 10 A |
| Rated impulse withstand (Uimp) | 2500 V |
| Maximum fuse rating | 10 A |
| Environmental sealing | IP66 |
| Operating temperature | Standard: 0°C to 70°C [32°F to 158°F] Optional: -40°C to 70°C [-40°F to 158°F] |
| Mechanical life (MCTF) | >1,000,000 cycles |
| Electrical life (MCTF) | >25,000 cycles |
| SIL Capability | Up to SIL3 (HFT1), IEC 61508-2 |
| Proof test interval | 1 year |
| AC | DC | ||||
|---|---|---|---|---|---|
| B300 | AC15 | R300 | DC13 | ||
| UE (Volts) | IE (Amps) | VA Rating | UE (Volts) | IE (Amps) | VA Rating |
| 120 | 3 | 3600 (Make) 360 (Break) |
125 | 0.22 | 28 (Make/Break) |
| 240 | 1.5 | 3600 (Make) 360 (Break) |
250 | 0.1 | 28 (Make/Break) |
| Part Number | Description |
|---|---|
| 24CE31-T2 | SAFETY LIMIT SWITCH - ENCLOSED |
| 24CE31-Y5 | ENCLOSED BASIC SWITCH |
