Name: Honeywell CLSX Series Explosion-proof Cable Pull Safety Limit Switch with 200 ft Cable Length UL Listed and CSA Certified for Hazardous Locations
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Honeywell
Price: 152.00 USD
Availability: InStock

Nhà > các sản phẩm > Cảm biến áp suất chính xác >

Honeywell CLSX Series Explosion-proof Cable Pull Safety Limit Switch with 200 ft Cable Length UL Listed and CSA Certified for Hazardous Locations

200 ft Cable Length Explosion-proof Switch

UL Listed Cable Pull Safety Limit Switch

CSA Certified Emergency Stop Switch

Hàng hiệu:

CLSX Series

Số mô hình:

Honeywell

Liên hệ với chúng tôi

Yêu cầu Đặt giá

Honeywell CLSX Series Explosion-proof Cable Pull Safety Limit Switch with 200 ft Cable Length UL Listed and CSA Certified for Hazardous Locations

Chi tiết sản phẩm

Làm nổi bật:

200 ft Cable Length Explosion-proof Switch

UL Listed Cable Pull Safety Limit Switch

CSA Certified Emergency Stop Switch

Điều khoản thanh toán và vận chuyển

Số lượng đặt hàng tối thiểu

1 CÁI

chi tiết đóng gói

Mỗi đơn vị có hộp riêng lẻ và tất cả các hộp được đóng gói trong các gói tiêu chuẩn hoặc yêu cầu của

Thời gian giao hàng

5-8 ngày làm việc

Điều khoản thanh toán

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Khả năng cung cấp

1000 mảnh/mảnh mỗi tuần có thể thương lượng

Sản phẩm liên quan

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

Nhận được giá tốt nhất

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

Nhận được giá tốt nhất

GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance

Nhận được giá tốt nhất

Honeywell GKM Series Compact SIL3 Capable Key-Operated Safety Interlock Switch with IP66/IP67 Rating and NEMA 1, 12, 13 Compliance

Nhận được giá tốt nhất

Liên hệ với chúng tôi

Liên hệ ngay bây giờ

Mô tả sản phẩm

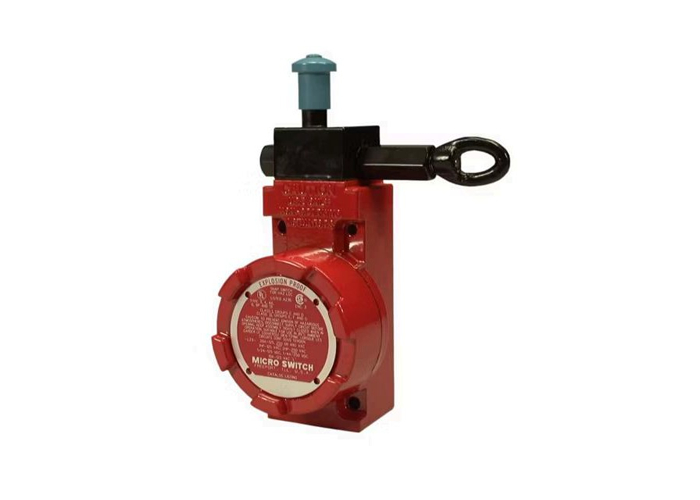

Honeywell CLSX Series Single Head Cable Pull

The CLSX Series Cable Pull Safety Limit Switch is designed to provide emergency stop protection for conveyor lines in hazardous atmospheres. The CLSX Series withstands the pressure of an internal explosion and cools the exploding gases below the kindling temperature of the explosive atmosphere. Flame paths are provided by the cover housing threads and an extended plunger between the switch cavity and head.

GENERAL INFORMATION

Explosion-proof switches are designed specifically for use in hazardous location applications
Flame paths within the switch housing cool exploding gases below kindling temperature of the atmosphere
Complies with NEMA standards: 1, 3, 4, 7, 9, 13. UL listed and CSA certified: Class I, Div 1, Groups B, C, D; Class II, Div 1, Groups E, F, G
A pull on the actuating cable will cause all switch contacts to change state: NC (normally closed) to open and NO (normally open) to close
When cable is released, switch contacts return to their original state

Available Basic Switch Options:

Direct acting switch contact: 1 NC
Direct acting switch contacts: 1 NO 1 NC
Snap action switch contacts: 1 NO 1 NC (NC circuit does not meet requirements for positive break and is not electrically isolated from the NO circuit)

Head may be positioned in any of four directions

Momentary Switch

AUXILIARY CONTACTS

Used for monitoring or signaling, i.e., indicators, pilot lights and alarms.

MAXIMUM ACTUATING CABLE LENGTH

Depending upon variations in ambient temperature, maximum cable length is 200 ft. (60 m).

OTHER AVAILABLE FEATURES

Conduit opening options
Hardware kits and cables for various length installations

PRODUCT MODELS

Part Number	Description
CLSXB4B	LIMIT SWITCH
CLSXB4T	MICRO SWITCH CLSX Series Explosion-proof Cable Pull Safety Switch, 1NC1NO Direct Opening, Slow Action, Explosion-proof, 12 NPT, Silver Contacts
CLSXB8T	MICRO SWITCH CLSX Series Explosion-proof Cable Pull Safety Switch, 2NC Direct Opening, Slow Action, Explosion-proof, 12 NPT, Silver Contacts
