Mô hình JS
4 mA to 20mA or 0 Vdc to 5 Vdc output | 1 psi to 10000 psi range | 0.2% FS accuracy | Stainless steel wetted material

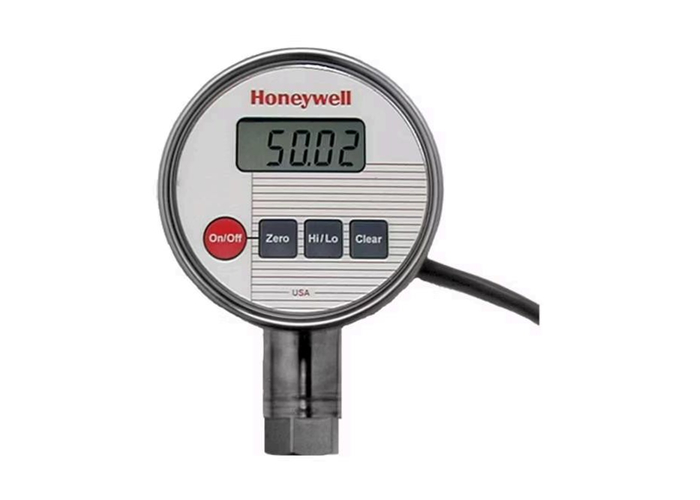

The Model JS digital pressure test gauge features 0.2% full scale accuracy using advanced transducer technology. Constructed with Ha C276/316 Stainless Steel wetted material for ranges up to 1,500 psi or 15-5 PH Stainless Steel for higher ranges (1,500 psi and above), providing superior overpressure protection.
This transducer-based design delivers enhanced accuracy across the entire pressure range with no moving parts, ensuring long service life and minimal recalibration needs. The stainless steel NEMA construction offers EMI and RFI protection, while the high-resolution digital display eliminates reading errors associated with analog gauges.
| Characteristic | Measure |
|---|---|
| Linearity and hysteresis | 0.2% full scale (better than test gauge accuracy) |
| Pressure range | 1, 5, 15, 30, 50, 100, 200, 300, 500, 750, 1000, 1500, 2000, 3000, 5000, 7500, 10000 psi |
| High and low capture | Standard |
| Update speed | 3 times per sec |
| Zero and span signal adjustment | Standard: Models JSB, JSE, JSX |
| Characteristic | Measure |
|---|---|
| Temperature, operating | -1°C to 71°C [30°F to 160°F] |
| Characteristic | Measure |
|---|---|
| Rating | NEMA 2 (optional NEMA 4) |
| Power, Model JSB | 11 Vdc to 32 Vdc (depending on loop resistance) @ 20 mA |
| Power, Model JSE | 11 Vdc to 32 Vdc @ 100 mA |
| Power, Model JSR | 11 Vdc to 32 Vdc @ 100 mA |
| Power, Model JSX | 11 Vdc to 32 Vdc @ 100 mA |
| Electrical connection | 3 ft cable (standard) |
| Characteristic | Measure |
|---|---|
| Diameter | 93.98 mm [3.7 in] |
| Display | 4½ LCD digits - 12.7 mm [0.5 in] high |
| Pressure port | 1/4-18 NPT male (1 psi to 300 psi); 9/16-18 UNF-2B female straight thread with SAE spec J514 o-ring boss (500 psi and above) |
| Wetted parts | Stainless steel |
| Case material | Stainless steel |
| Face membrane | Tactile feedback raised buttons |
| Calibration data | Stored on memory chip |
| Limits and relays | Models JSR and JSX |
| Part Number | Description |
|---|---|
| 060-CS98644908738 | JSR15AC:MODEL JS, 15 PSIA |
| 77-01635-03 | JSB15VB:MODEL JS, 15 PSI |
| 77-01648-04 | JSE30GC:MODEL JS, 30 PSI |
| 77-01648-07 | JSE200GC:JSE200GC MODEL JSE, 200 PSIG |
| 77-01648-11 | JSE1KGC:MODEL JS, 1K PSI |
| 77-01648-13 | JSE2KGC:MODEL JS, 2K PSI |
| 77-01648-15 | JSE5KGC:MODEL JS, 5K PSI |
| 77-01648-16 | JSE7.5KGC:MODEL JS, 7.5K PSI |
| 77-01648-17 | JSE10KGC:MODEL JS, 10K PSI |
| 77-01649-06 | JSE100AC:MODEL JS, 100 PSI |
| 77-01653-07 | JPW50GZQ4:MODEL JP, 50 PSI |
| 77-01654-01 | JSB1VC:MODEL JS, 1 PSI |
| 77-01654-03 | JSB15VC:MODEL JS, 15 PSI |
| 77-01668-03 | JSB15GC:MODEL JS, 15 PSI |
| 77-01668-05 | JSB50GC:MODEL JS, 50 PSI |
| 77-01668-06 | JSB100GC:MODEL JS, 100 PSI |
| 77-01668-07 | JSB200GC:MODEL JS, 200 PSI |
| 77-01668-08 | JSB300GC:MODEL JS, 300 PSI |
| 77-01668-09 | JSB500GC:MODEL JS, 500 PSIG |
| 77-01683-06 | JSR100GC:MODEL JS, 100 PSI |
| 77-01683-17 | JSR10KGC:MODEL JSR, 10,000 PSIG |
| 77-01774-17 | JSE10KGB:MODEL JS, 10K PSI |
| 77-01864-01 | JSB50CC:MODEL JS, 50 PSI |
