Hàng hiệu:
Yokogawa
Số mô hình:
RC800D
No.1 Process analyzer supplier to Japanese market*
"Reliable Chlorine monitoring and minimize Chlorine injection"
"Continuous automatic cleaning and achieved less maintenance time"
"Maintenance remotely and reduce maintenance time"
Many of our customers face these challenges - Yokogawa Chlorine Analyzers resolve them.

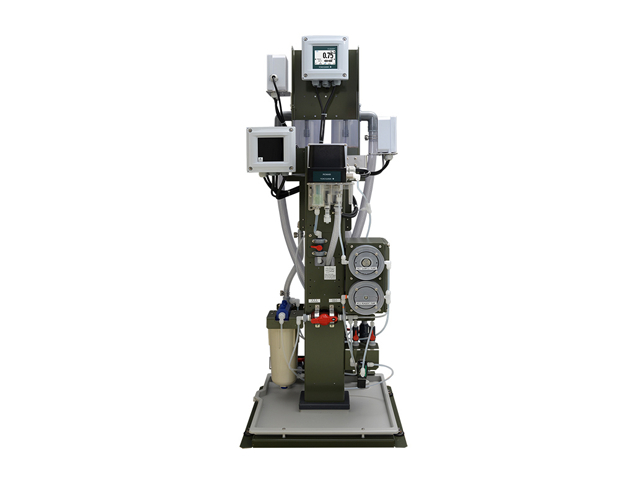

The RC800D residual chlorine analyzer employs a polarographic system that uses rotating platinum electrodes to provide a continuous online measurement of residual chlorine concentration. It is possible to separate residual chlorine (free chlorine + combined-chlorine) from free chlorine for measurements by appropriate use of reagents.
The RC800D is suitable for various water condition measurements and gives you a stable and high-quality measurement thanks to the rotation electrodes and superior reagent pump.
The RC800D is intended for water distribution measurements at pumping stations, water delivery points, schools, and public facilities.
*Based on a Yokogawa survey in 2019
| Measured Object | Free chlorine or residual chlorine (total chlorine) in water |
|---|---|
| Measuring System | Amperometric method (Polarographic method) using rotating electrode |
| Measuring Range | 0-10 mg/L |
| Sample Conditions | Temperature: 0 to 50°C (Temperature compensation is effective within 0 to 40°C) |
| pH: 3 to 9 | |
| Flow Rate: 1 to 4 L/min, for pure water or municipal water application. | |
| 5 to 10 L/min, for raw water or sea water application. | |
| 10 to 20 L/min, for secondary sewage treatment application. | |
| Pressure | 20 to 500 kPa |
| Power Supply | 100 to 240 V DC, 50/60 Hz |
| Digital Communication | Modbus TCP/IP, Modbus RTU |
| Installation | Indoor (Outdoor use requires protection against rain. Direct sunlight must be avoided.) |
| Linearity | ±3% of reading or ±0.03 mg/L whichever is greater |
|---|---|
| Repeatability | ±1% of reading or ±0.01 mg/L whichever is greater |
