Name: Industrial pH/ORP Electrode Water Quality Sensor with Wide Measuring Range High Temperature and Pressure Resistance
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: SC29
Price: 5,000.00 USD
Availability: InStock

Nhà > các sản phẩm > Cảm biến chất lượng nước >

Industrial pH/ORP Electrode Water Quality Sensor with Wide Measuring Range High Temperature and Pressure Resistance

Wide measuring range pH/ORP Electrode

High temperature range Water Quality Sensor

High pressure resistance Industrial Electrode

Hàng hiệu:

Yokogawa

Số mô hình:

SC29

Liên hệ với chúng tôi

Yêu cầu Đặt giá

Industrial pH/ORP Electrode Water Quality Sensor with Wide Measuring Range High Temperature and Pressure Resistance

Chi tiết sản phẩm

Phạm vi đo::

-1500 ... 1500mV

Phạm vi nhiệt độ::

-10 đến 100 °C

Phạm vi áp suất:

1,5 kPa ... 500 kPa

Màng:

Cốc bạch kim rắn

Cơ hoành:

PTFE xốp

Làm nổi bật:

Wide measuring range pH/ORP Electrode

High temperature range Water Quality Sensor

High pressure resistance Industrial Electrode

Điều khoản thanh toán và vận chuyển

Số lượng đặt hàng tối thiểu

1pcs

chi tiết đóng gói

Mỗi đơn vị có hộp riêng lẻ và tất cả các hộp được đóng gói trong các gói tiêu chuẩn hoặc yêu cầu của

Thời gian giao hàng

5-8 ngày làm việc

Điều khoản thanh toán

L/C, D/A, D/P, T/T, Liên minh phương Tây, Moneygram

Khả năng cung cấp

1000 mảnh/mảnh mỗi tuần có thể thương lượng

Sản phẩm liên quan

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Nhận được giá tốt nhất

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Nhận được giá tốt nhất

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Nhận được giá tốt nhất

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Nhận được giá tốt nhất

Liên hệ với chúng tôi

86--17719566736

Liên hệ ngay bây giờ

Mô tả sản phẩm

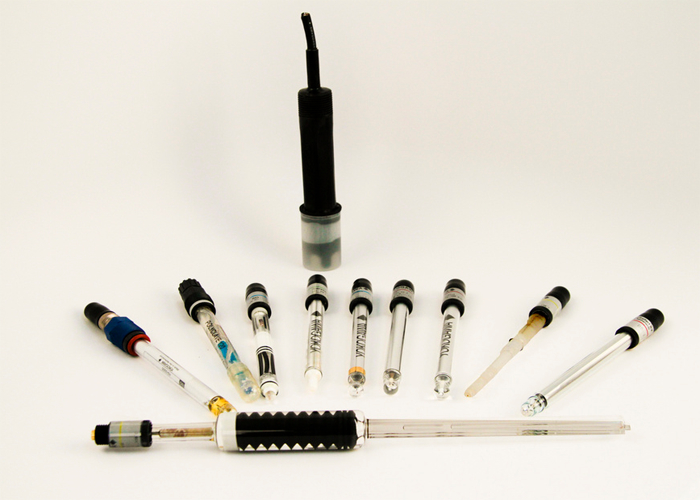

Industrial pH/ORP Electrodes

The heart of a pH measuring loop is the electrode system. Yokogawa has designed a wide range of electrodes to ensure reliable performance under the most severe industrial conditions. These electrodes meet DIN 19263 standards (excluding refillable types) and feature high standardization for compatibility with standard fittings. Color-coded strips on electrodes and cables prevent incorrect installation.

Key Features

Comprehensive electrode selection for all process conditions
Gold-plated spring connectors ensure excellent electrical contact
Coaxial plug and socket with IP65-rated watertight sealing
Color-coded identification system for easy installation
Standardized design for mounting in flow- and immersion fittings

Technical Specifications

SC29(C) Series Models

Model	Specifications
SC29(C)-PT29	Combined reference/reference electrode (Non-flow type) Measuring range: -1500...1500mV Temperature range: -10 to 100°C Pressure range: 1.5 kPa...500 kPa Membrane: Solid Platinum cup Diaphragm: Porous PTFE (Impedance <5 kΩ) Reference system: Ag/AgCl Saturated KCl
SC29(C)-PT55	Combined reference/reference electrode (Flow type) Temperature range: -10 to 100°C Pressure range: 1.5 kPa...500 kPa Membrane: Solid Platinum cup Diaphragm: Ceramic (Impedance <5 kΩ) Reference system: Ag/AgCl 3.3m KCl
SC29-PtG29	Combined reference/glass electrode Temperature range: 0 to 100°C Pressure range: 1.5 kPa...1000 kPa Membrane: Solid Platinum Glass: General purpose pH glass

Shipping Details

Model	Package Size	Weight
SC21(C), SC29(C)	1204545 mm (10.621 in)	0.08 kg (0.17 lbs)
SC21(C-AGESS, SC29C-PT55	3009573 mm (11.83.72.9 in)	0.22 kg (0.48 lbs)

Environmental Conditions

Storage temperature: -10 to +50°C (14 to 122°F). For long-term storage of unused electrodes, completely fill with electrolyte solution, close the refill opening, and fit the protective cap with a small piece of membrane filled with water.

Regulatory Compliance

CE: Compliant with RoHS Directive 2011/65/EU and Commission Delegated Directive (EU) 2015/863

Standards: EN-IEC 63000:2018 for technical documentation and hazardous substance assessment

UKCA: Compliant with The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012
