Nguồn gốc:
Trung Quốc
Hàng hiệu:
kacise
Chứng nhận:
ce
Số mô hình:
KWD120

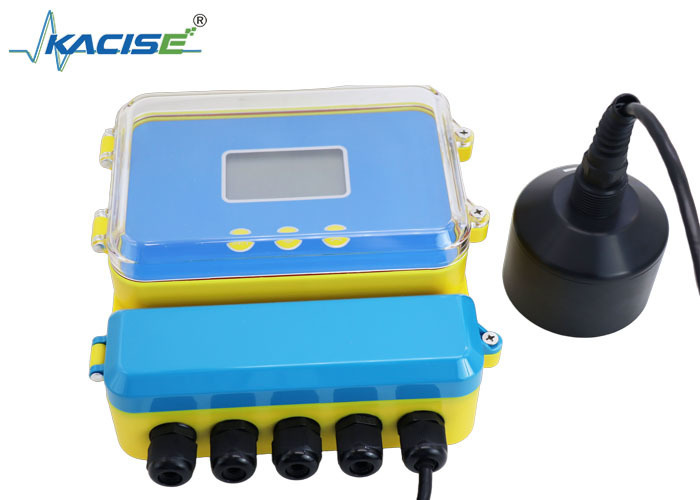

The KWD120 Ultrasonic Depth Sounder is a reliable, cost-effective level measurement instrument designed for sludge and liquid applications. This contact-type device measures underwater distance through liquid propagation, offering easy installation and maintenance.
| Function | Split type |
|---|---|
| Range | Standard measuring ranges: 5m, 10m, 15m, 20m. Customizable up to 70m or special ranges |
| Measurement Accuracy | 1%-3% |
| Resolution | 5mm or 0.5% (whichever is larger) |
| Display | Chinese LCD display |
| Analog Output | 4-20mA/510Ω load |
| Relay Output | 2-way AC 250V/5A or DC 30V/5A, programmable status |
| Power Supply | Standard 220V AC ±15% 50Hz, Optional 24VDC 120mA, Custom 12VDC or battery power |
| Ambient Temperature | Display: -20°C to +60°C, Probe: -20°C to +80°C |
| Communication | Optional 485, 232 communication (manufacturer protocol) |
| Protection Level | Display: IP65, Probe: IP68 |
| Probe Cable | Standard 10m, customizable up to 100m (without electromagnetic interference) |
| Power Consumption (24V) |
|
| Power Consumption (220V) | 220VAC split instrument: 5W |
