Place of Origin:
CHINA
Hàng hiệu:
KACISE
Chứng nhận:
CE
Model Number:
KSACC113Q
| Power Voltage | ±12~±18V DC |
|---|---|
| Operating Temperature | -45°C~+80°C |
| Storage temperature | -55°C～+80°C |
| Shock | 100g |
| Vibration Peak Sine | 20g@20Hz ~ 2000Hz |

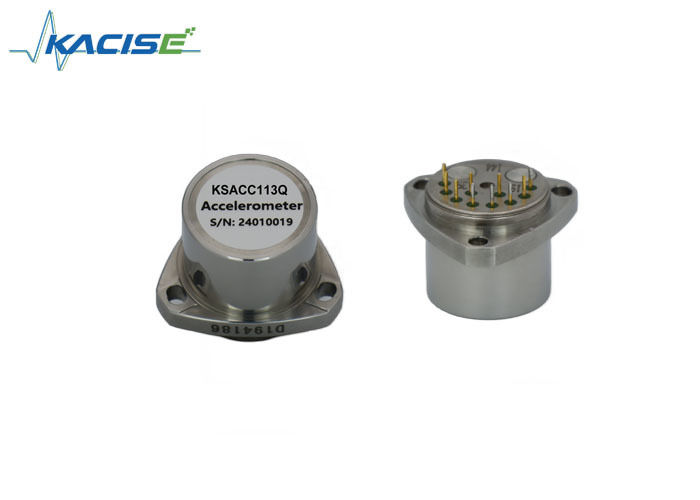

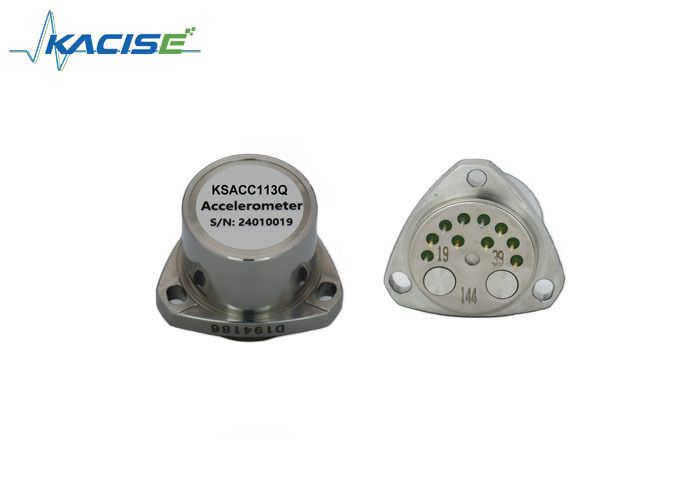

The KSACC113Q Quartz Flexible Accelerometer is a precision instrument comprising quartz glass flexible support and advanced servo circuit based on the principle of inertia. When the carrier is subjected to acceleration, the output is precisely proportional to the input acceleration.
Our accelerometer features current output with high output impedance, allowing users to select sampling resistance according to their requirements without affecting system stability.
Our quartz flexible accelerometer series includes products ranging from high-precision μg KSACC111Q accelerometers for satellite microgravity measurement to cost-effective, rugged KSACC117Q accelerometers, with applications across aerospace, aviation, navigation, marine, automotive, petroleum, and geotechnical engineering fields.
| Power Supply Parameters | |
|---|---|
| Power Voltage | 12~18VDC |
| Power @ 25°C | 90mW |
| Supply current | 6mA |
| Product Performance | |
| Range | ±80g |
| Size | Ø25.4×30 |
| Bias | <5mg |
| Bias stability | ≤30ug |
| Bias temperature sensitivity | 30ug/°C |
| Bias repeatability | ≤30ug |
| Scale factor | 0.9～1.3mA/g |
| Scale factor temperature sensitivity | 50ppm/°C |
| Second order nonlinear coefficient | ≤40μg/g² |
| Second order nonlinearity coefficient repeatability | ≤15μg/g² |
| Scale factor repeatability | 40ppm |
| Noise | <5μg |
| Threshold | <5 μg |
| Bandwidth | <200 Hz |
| Weight | ≤80g |
| Environmental Specifications | |
| Operating temperature | -45°C～80°C |
| Storage temperature | -55°C～80°C |
| Random vibration | 20g(20~2000Hz) |
| Sine vibration | 10g peak,50 to 800Hz |
| Working shock | 50g |
| Shock | 100g |
Unit: mm
