Name: KSACC112Q Quartz Flexible Accelerometer ±20g Range
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSACC112Q
Price: 431.00 USD
Availability: InStock

Nhà > các sản phẩm > Bộ cảm biến vòng xoáy điện tử >

KSACC112Q Quartz Flexible Accelerometer ±20g Range

quartz flexible accelerometer 20g range

quartz accelerometer fluid level meter

flexible accelerometer with high range

Place of Origin:

CHINA

Hàng hiệu:

kacise

Chứng nhận:

Model Number:

KSACC112Q

Liên hệ với chúng tôi

Yêu cầu Đặt giá

KSACC112Q Quartz Flexible Accelerometer ±20g Range

Chi tiết sản phẩm

Điện áp điện:

± 12 ~ ± 18V dc

Nhiệt độ hoạt động:

-45 ° C ~+80 ° C.

Nhiệt độ lưu trữ:

-55 ° C+80 ° C.

Sốc:

100g

Độ rung sin đỉnh:

15g@20Hz ~ 2000Hz

Làm nổi bật:

quartz flexible accelerometer 20g range

quartz accelerometer fluid level meter

flexible accelerometer with high range

Điều khoản thanh toán và vận chuyển

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Sản phẩm liên quan

Low power triaxial angular rate gyroscope, can be applied to robots, Storage temperature -65 ~ +125(°C), Weight ≤40(g)

Nhận được giá tốt nhất

Bias Drift ≤0.1°/H Gyro North Finder with ±5V Supply Voltage for Accurate Navigation and Uav

Nhận được giá tốt nhất

Gyroscope/Angular velocity sensor/Used to measure the angular velocity in the direction of the sensitive axis

Nhận được giá tốt nhất

AI vision inertial navigation system for aircraft lifting assistance with weight ≤2.0kg

Nhận được giá tốt nhất

Liên hệ với chúng tôi

86--17719566736

Liên hệ ngay bây giờ

Mô tả sản phẩm

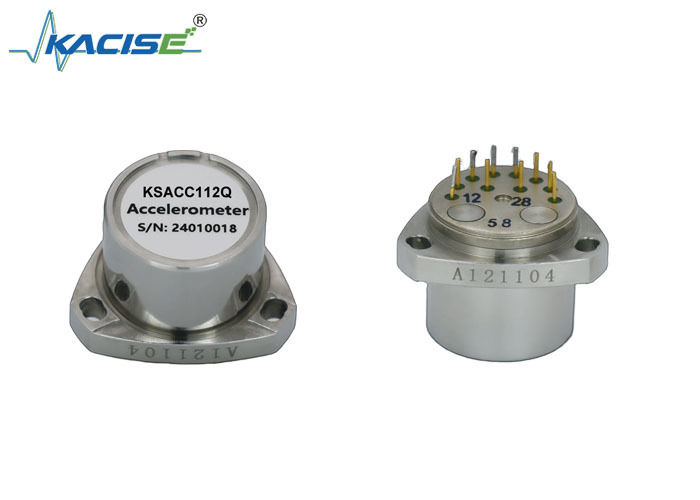

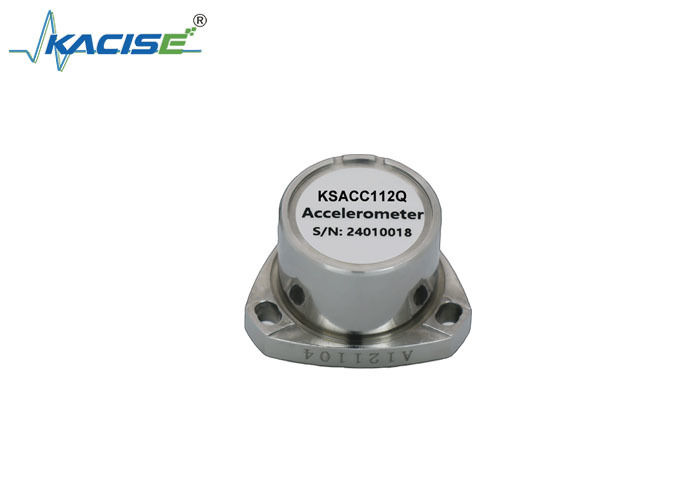

KSACC112Q Quartz Flexible Accelerometer ±20g Range

Product Attributes

Attribute	Value
Power Voltage	±12~±18V DC
Operating Temperature	-45°C~+80°C
Storage temperature	-55°C～+80°C
Shock	100g
Vibration Peak Sine	15g@20Hz ~ 2000Hz

Product Description

KSACC112Q Quartz Flexible Accelerometer is a precision instrument comprising quartz glass flexible support and advanced servo circuit based on the principle of inertia. When the carrier is subjected to acceleration, the output is precisely proportional to the input acceleration. The accelerometer features current output with high output impedance, allowing users to select sampling resistance according to requirements without affecting system stability.

Product Series

Our quartz flexible accelerometer series includes products ranging from high-precision μg KSACC111Q accelerometers for satellite microgravity measurement to low-cost, harsh environment-resistant KSACC117Q accelerometers. These are widely used in aerospace, aviation, navigation, marine, vehicle, petroleum, and geotechnical engineering applications, providing signals for navigation, guidance, control, leveling, and monitoring systems.

Key Features

Excellent index repeatability
Analog output
Built-in digital temperature sensor
Wide load resistance range
Triangle precision mounting flanges
Application in next-generation weapon inertial navigation systems
Two models available

Applications

Inertial monitoring systems
Inertial navigation systems
Flight control systems
Vibration monitoring
Oil drilling platforms and geological exploration
Inertial measurement units
Motion monitoring equipment

Technical Specifications

Power Supply Parameters
Power Voltage	12~18VDC
Power at 25°C	90mW
Supply current	6mA
Product Performance
Range	±20g
Size	Ø25.4×30
Bias	<5mg
Bias stability	≤10ug
Bias temperature sensitivity	10ug/°C
Bias repeatability	≤10ug
Scale factor	1.2～1.6mA/g
Scale factor temperature sensitivity	10ppm/°C
Second order nonlinear coefficient	≤10μg/g²
Second order nonlinearity coefficient repeatability	≤5μg/g²
Scale factor repeatability	10ppm
Noise	<1μg
Threshold	<1 μg
Bandwidth	<200 Hz
Weight	≤70g
Environmental Specifications
Operating temperature	-45°C～80°C
Storage temperature	-55°C～80°C
Random vibration	15g(20~2000Hz)
Sine vibration	10g peak,50 to 800Hz
Working shock	50g
Shock	100g

Dimensions

Unit: mm
