Place of Origin:
CHINA
Hàng hiệu:
KACISE
Chứng nhận:
CE
Model Number:
KSGYR301M

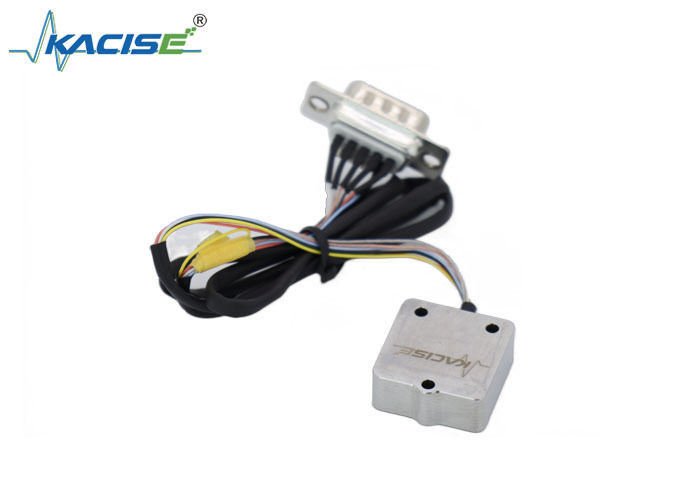

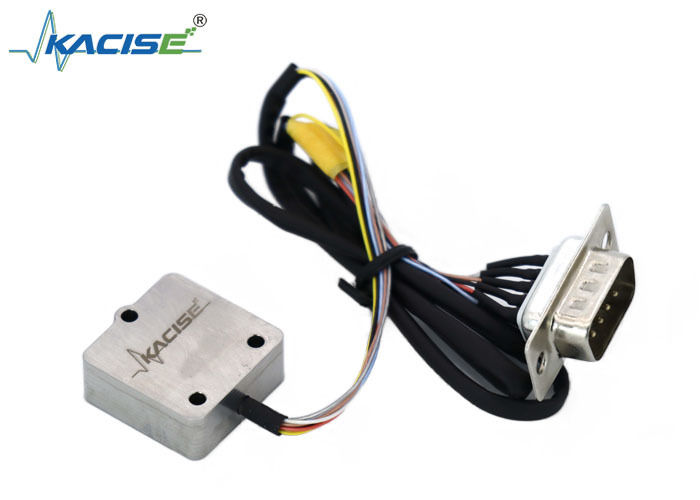

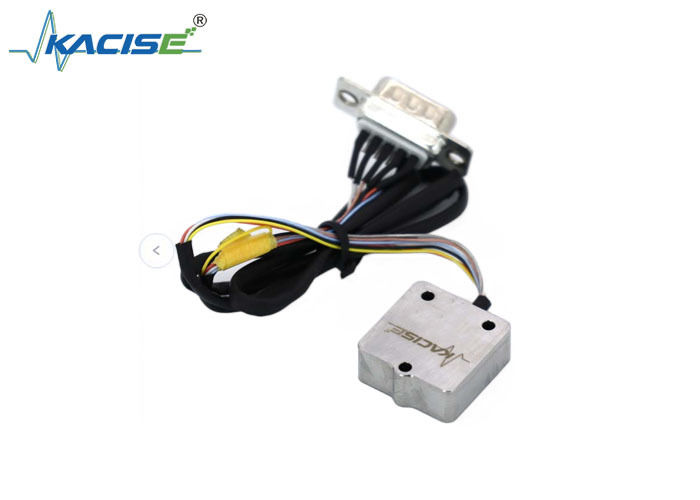

The KSGYR301M MEMS Quartz Gyroscope utilizes advanced quartz MEMS technology to measure angular velocities across multiple axes (configurable to customer requirements), with digital output via serial port.
| Attribute | Value |
|---|---|
| Input Voltage | 5±0.2 Vdc |
| Input Current | < 50 mA |
| Measurement range | ±100°/s |
| Bias | ≤0.03°/s |
| Bias stability | ≤20°/h |
| Bias repeatability | ≤20°/h |
| Parameter | KSGYR301M |
|---|---|
| Power Requirements | |
| Power Voltage | 5V DC |
| Power @ 25°C | 0.3W |
| Supply current | ≤50 mA |
| Performance | |
| Range | ±100°/s |
| Output | RS422 |
| Size | 22.4mm×22.4mm×9mm |
| Run-up time | 2s |
| Bias | ≤0.03°/s |
| Bias stability | ≤20°/h |
| Random walk | ≤0.25°/√h |
| Scale factor nonlinearity | ≤0.02% |
| Noise | ≤0.01°/s/g |
| Resolution | ≤0.005°/s |
| Bandwidth | ≥90Hz |
| Weight | ≤50g |
| Environmental | |
| Operating temperature | -40°C~+65°C |
| Random vibration | 6.06g |
| Shock | 200g |
Unit: mm
