Place of Origin:
CHINA
Hàng hiệu:
KACISE
Chứng nhận:
CE
Model Number:
KSGYR311M
| Attribute | Value |
|---|---|
| Input voltage | 6-15Vdc |
| Incoming current | <30 mA |
| Offset voltage | 2.5±0.05V |
| Output voltage | 0.5-4.5V |
| Range | ±250°/s |
| Weight | ≤40g |

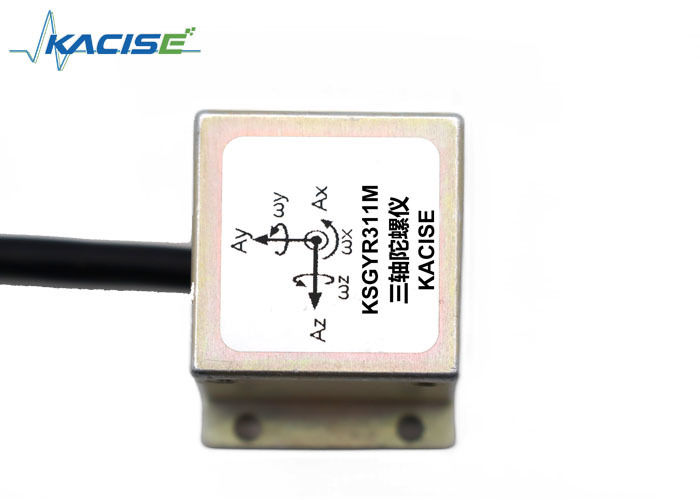

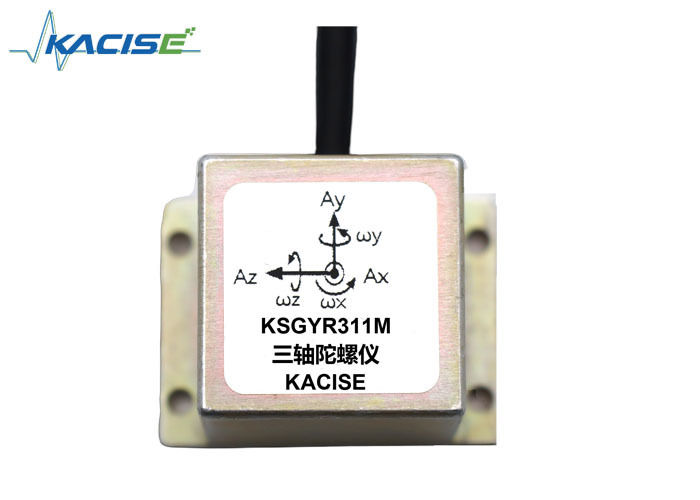

The KSGYR311M series three-axis universal angular rate gyro is developed by Kacise for measuring three-axis angular rates. Each axis utilizes MEMS technology chips, offering high performance, low cost, reliability, and rugged packaging with Self-Test functionality.
The KSGYR311M operates on the resonator gyro principle. Two polysilicon sensitive structures, each containing a high-frequency vibrating frame, are electrostatically driven to resonate. The frame's outer ends form a capacitance-sensitive structure that detects Coriolis motion from angular rates, generating an electrical signal processed through amplification and modulation stages to output a proportional angular rate signal.
| Power Supply Parameters | |
|---|---|
| Power Voltage | +6~+15V DC |
| Power @25°C | 0.4W |
| Supply current | ≤30mA |
| Output Range | 0.5-4.5(V) |
| Product Performance | |
| Range | ±250°/s |
| Size | 34mm×25mm×24mm |
| Run-up time | 0.02s |
| Bias | 2.5±0.05V dc |
| Bias stability | ≤12°/h |
| Bias temperature sensitivity | ≤1°/s |
| Scale factor | 8mV/°/s±0.5mV/°/s |
| Scale factor nonlinearity | ≤0.05% |
| Noise | ≤0.02°/s/g |
| Threshold | ≤2% |
| Resolution | ≤0.02°/s/√Hz; ≤0.01°/s |
| Bandwidth | ≥80Hz |
| Weight | <40g |
| MTBF | 100000h |
| Environmental Specifications | |
| Operating temperature | -45°C～+85°C |
| Storage temperature | -65°C~+125°C |
| Shock resistance | 20000g |
