Place of Origin:
CHINA
Hàng hiệu:
KACISE
Chứng nhận:
CE
Model Number:
KSGYR322M
| Attribute | Value |
|---|---|
| Input voltage | 5V DC |
| Power dissipation | ≤1W @5V DC |
| Range | ±500(triaxial)°/s |
| Bias | ≤±0.1°/s(In 500°/s) |
| Bias stability | ≤0.5°/h(Allan deviation) |
| Bias repeatability | ≤0.05°/s |
| Size | 45×39×20mm |

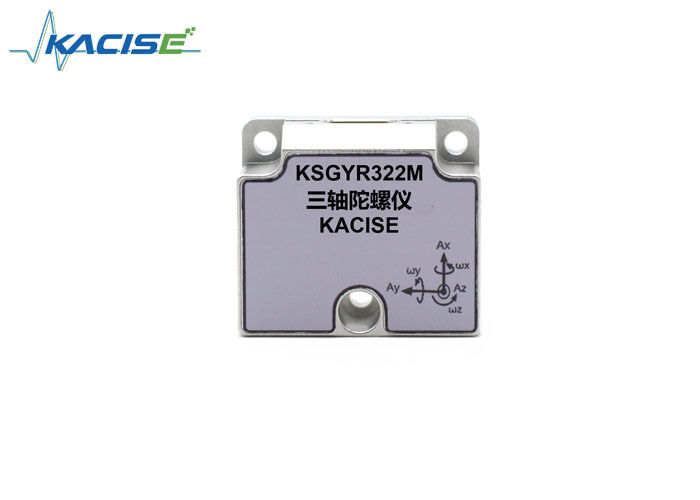

KSGYR322M series solid state angular rate sensor (gyro) measures angular rate using micromechanoelectronic system (MEMS) technology chips. Manufactured with bipolar metal oxide semiconductor (BIMOS) technology production process and spherical grid arrangement of current carrier welding technology, it offers high reliability and package ruggedness. Features include Self-Test function for in-machine detection (BIT).
KSGYR322M series angular rate sensors operate on the principle of resonator gyro. Two polysilicon sensitive structures, each containing a high-frequency vibrating frame, are driven electrostatically to resonate. The frame's outer ends form a capacitance-sensitive structure that detects Coriolis motion generated at the angular rate, producing an electrical signal proportional to the angular rate after amplification and modulation.
| Power Voltage | 5V DC |
| Power @25°C | 1W |
| Range | ±500°/s |
| Bias | ≤±0.1°/s |
| Bias stability | ≤0.5°/h |
| Bias temperature sensitivity | ≤4°/s |
| Scale factor nonlinearity | ≤0.05% |
| Resolution | ≤0.01°/s |
| Weight | <60g |
| MTBF | 10000h |
| Operating temperature | -40°C to +80°C |
| Storage temperature | -55°C to +85°C |
| Random vibration | 6.06g |
| Shock resistance | 5000g |
