Place of Origin:
China (Mainland)
Hàng hiệu:
Kacise
Chứng nhận:
certificate of explosion-proof, CE
Model Number:
KSQA11

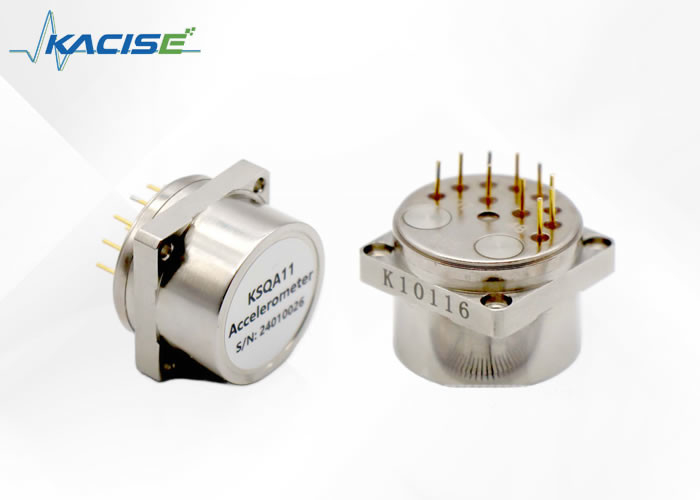

The Quartz Flexible Accelerometer is a precision instrument that is made up of a quartz glass flexible support and an advanced servo circuit based on the principle of inertia. It is designed to output a signal that is precisely proportional to the input acceleration of the carrier.
One of the benefits of using our accelerometer is its current output form of high output impedance which allows users to choose the sampling resistance according to their requirements without affecting the stability of the system.
Our quartz flexible accelerometer is highly versatile and has been developed into a series of products that cater to various needs. These range from the high-precision μg KSQA07 accelerometer for satellite microgravity measurements to the low-cost, anti-harsh environment KSQA13 accelerometer. Dozens of these products are widely used across several fields including aerospace, aviation, navigation, ships, vehicles, petroleum, geotechnical engineering, and other related areas.
Our product has become an essential provider of signals for navigation, guidance, control, leveling, monitoring, and other systems.
● Excellent index repeatability
● Analog output
● Wide temperature range
● Wide load resistance range
● Small size and light weight
● Shock and vibration resistance
| Parameter | KSQA11 |
| Power supply parameter | |
| Power Voltage | ±12~±18V DC |
| Product performance | |
| Input Range | ±30g |
| Bias | ≤8mg |
| Temperature Sensitivity | ≤40μg/°C |
| One-month Composite Repeatability (1σ) | ≤50μg |
| Scale Factor | 1.0 ~ 1.6mA/g |
| Temperature Sensitivity | ≤80ppm/°C |
| One-month Composite Repeatability (1σ) | ≤80ppm |
| Linearity | ≤40μg/g2 |

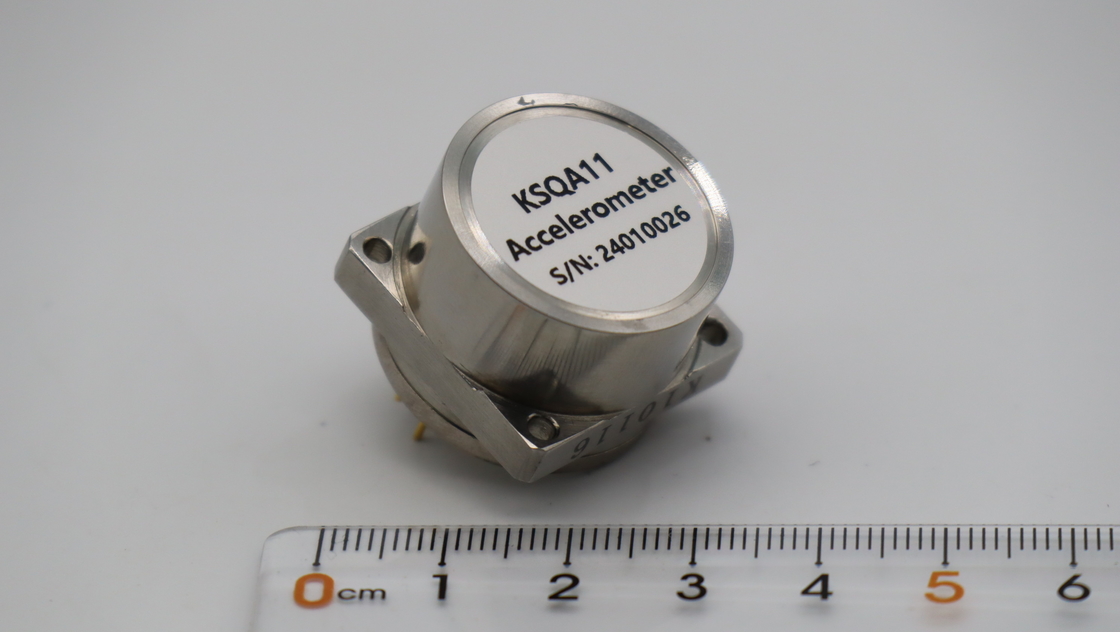

| Size | Ø25×25mm |
| Weight | ≤50g |
| Environment | |
| Operating Temperature | -45°C~+100°C |
| Storage temperature | -55°C～+110°C |
| Shock | 500g |
| Vibration Peak Sine | 25g@20Hz ~ 2000Hz |
Dimensions:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
Acceleration sensor product technical support and services include:
- Troubleshooting assistance
- Installation and setup consultation
- performance optimization Suggestions
- repair and replacement services
- technical documents and manuals
Product Packaging:
The Accelerometer Sensor product will be packaged in a sturdy cardboard box with ample protective material to prevent damage during shipping. The product will be securely sealed to ensure its safety during transit.
Shipping:
The Accelerometer Sensor product will be shipped through a reliable courier service that offers tracking information to the customer. The shipping cost will be calculated based on the destination and weight of the package. The estimated delivery time will be provided to the customer at the time of purchase.
