Place of Origin:
China (Mainland)
Hàng hiệu:
Kacise
Chứng nhận:
certificate of explosion-proof, CE
Model Number:
KSQA11

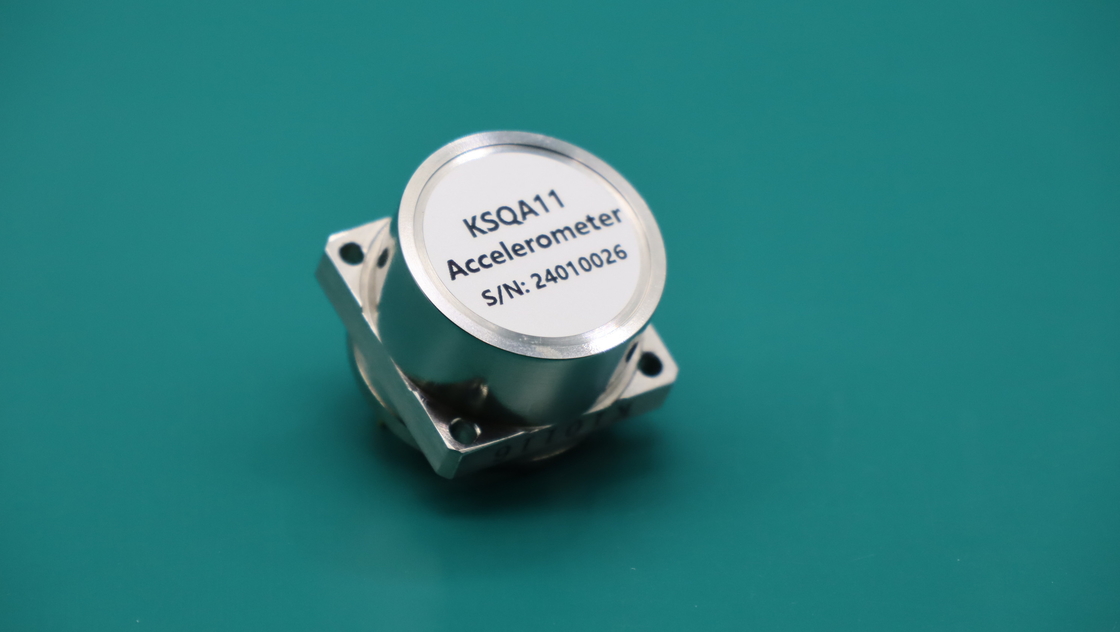

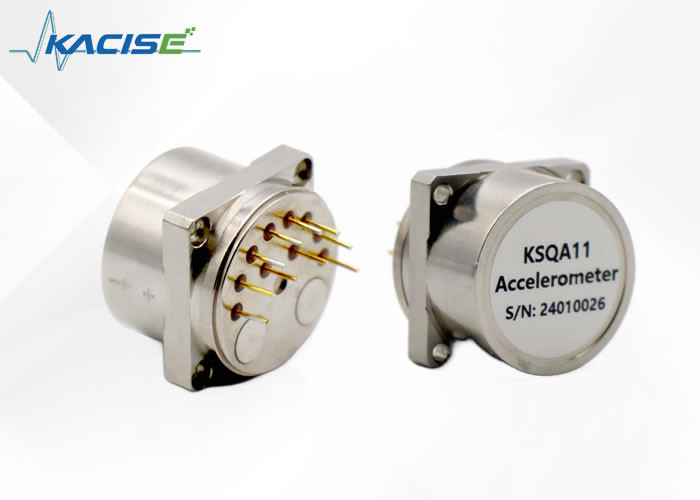

The Quartz Flexible Accelerometer is a precision instrument that consists of a quartz glass flexible support and an advanced servo circuit based on the principle of inertia. When the carrier experiences acceleration, the output of the accelerometer is precisely proportional to the input acceleration. This accelerometer has a high output impedance in the current output form, and users can select the sampling resistance according to their requirements without affecting the system's stability.
Currently, our Quartz Flexible Accelerometer has a range of products, including dozens of types. These types range from the high-precision μg KSQA07 accelerometer for satellite microgravity measurement to the low-cost, anti-harsh environment KSQA13 accelerometer. Our accelerometers are widely used in aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering, and other fields. They provide signals for navigation, guidance, control, leveling, monitoring, and other systems.
● Excellent index repeatability
● Analog output
● Wide temperature range
● Wide load resistance range
● Small size and light weight
● Shock and vibration resistance
| Parameter | KSQA11 |
| Power supply parameter | |
| Power Voltage | ±12~±18V DC |
| Product performance | |
| Input Range | ±30g |
| Bias | ≤8mg |
| Temperature Sensitivity | ≤40μg/°C |
| One-month Composite Repeatability (1σ) | ≤50μg |
| Scale Factor | 1.0 ~ 1.6mA/g |
| Temperature Sensitivity | ≤80ppm/°C |
| One-month Composite Repeatability (1σ) | ≤80ppm |
| Linearity | ≤40μg/g2 |

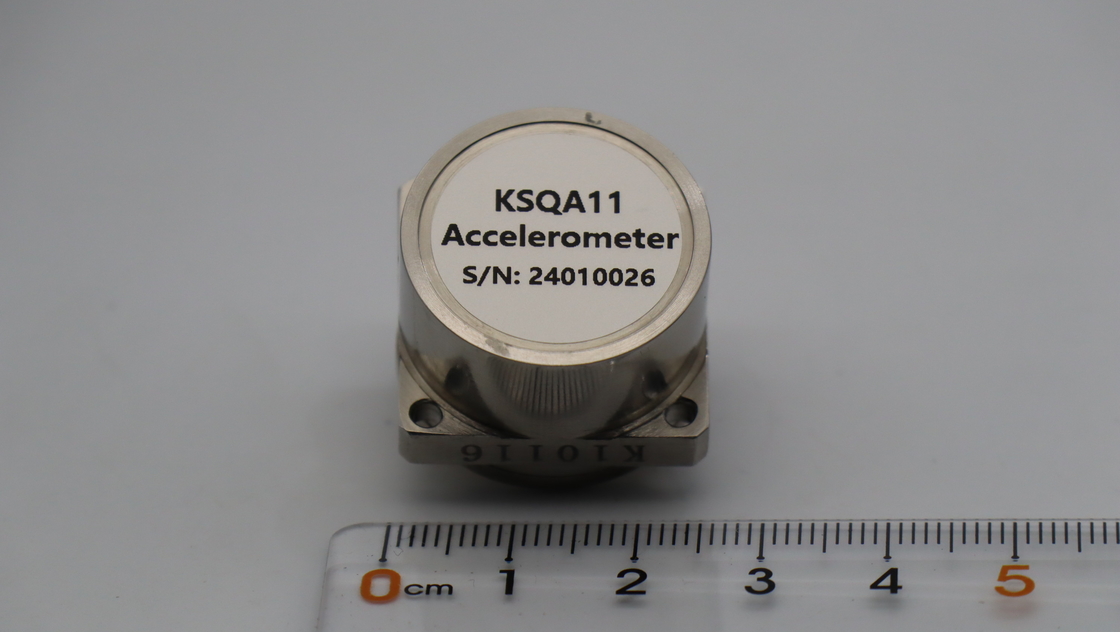

| Size | Ø25×25mm |
| Weight | ≤50g |
| Environment | |
| Operating Temperature | -45°C~+100°C |
| Storage temperature | -55°C～+110°C |
| Shock | 500g |
| Vibration Peak Sine | 25g@20Hz ~ 2000Hz |
Dimensions:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
Acceleration sensor product technical support and services include:
- Troubleshooting assistance
- Installation and setup consultation
- performance optimization Suggestions
- repair and replacement services
- technical documents and manuals
Product Packaging:
The Accelerometer Sensor product will be packaged in a sturdy cardboard box with ample protective material to prevent damage during shipping. The product will be securely sealed to ensure its safety during transit.
Shipping:
The Accelerometer Sensor product will be shipped through a reliable courier service that offers tracking information to the customer. The shipping cost will be calculated based on the destination and weight of the package. The estimated delivery time will be provided to the customer at the time of purchase.
