Place of Origin:
China (Mainland)
Hàng hiệu:
Kacise
Chứng nhận:
certificate of explosion-proof, CE
Model Number:
KSLV606
Băng hình

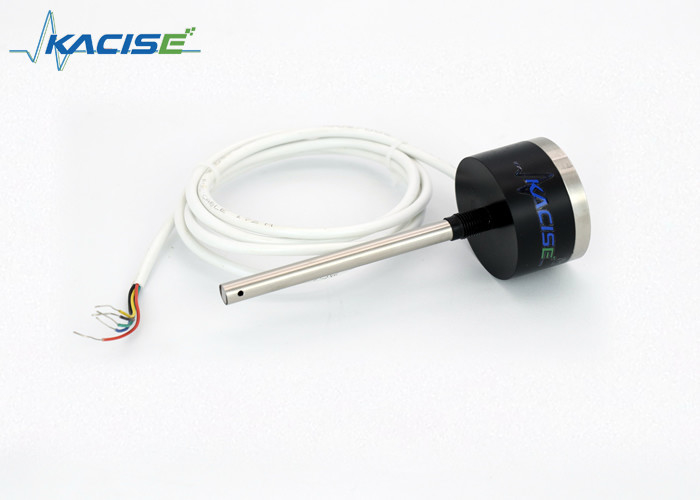

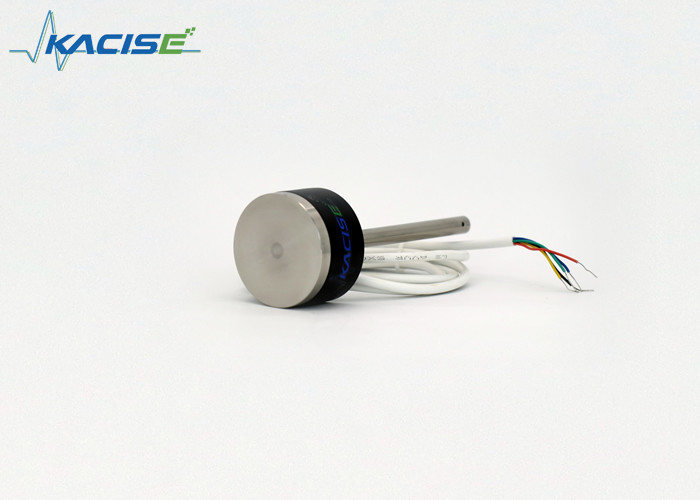

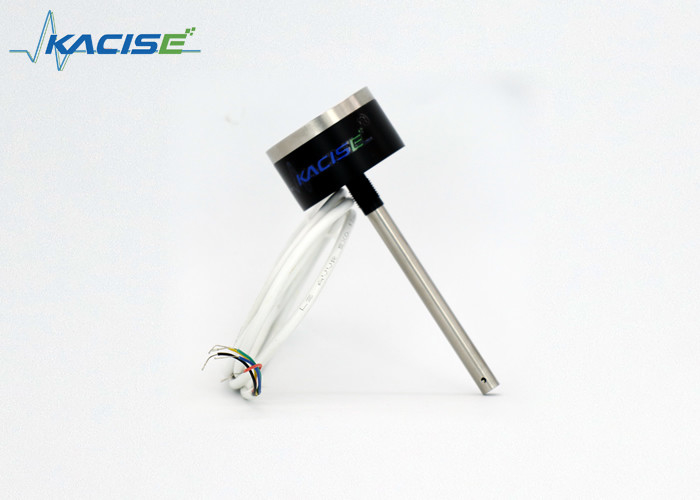

The KSLV606 capacitive level sensor produced by Kacise is a small range level sensor, can be used to measure a variety of liquids, no moving parts inside, not affected by steam. It also has a good physical filtering effect for liquid fluctuations, making the measurement result fluctuate less, and the use of multiple capacitor detection plate technology, the maximum measurement range is greatly improved, and more flexible, and can help troubleshoot sensor faults.
The KSLV606 sensor has the advantages of miniaturization, long-term reliability, high temperature resistance, high sensitivity, good linearity, customizable length, customizable output, customizable protection level, and customizable corrosion resistance process. The output is RS485, two-wire 4-20mA, voltage output, switching output, RS485 to 4G, RS485 to Bluetooth and other output modes. Widely used in water treatment, paper making, petrochemical, metallurgy, electric power, pharmaceutical.
● The MODBUS RTU protocol is easy to integrate.
● Multiple output types to choose from.
● Customizable output.
● Customizable protection level.
● Corrosion resistance process can be customized.
● No moving parts, reliable and stable work.
● Can measure any liquid medium.
● Can measure the level of fluctuating liquid.
| Range | 5cm-20cm |
| Accuracy | ±2% |
| Capacitance measurement range | 10PF~500PF |
| Protection level | IP65; IP68(Can customize) |
| Pressure range | Can customize(Default normal pressure) |
| Probe temperature resistance | -200°C~200°C |
| Ambient temperature | -40°C~85°C |
| Output | RS485; 4-20mA; 0-10V; Switch(Can customize) |
| Power supply voltage | 5~36V DC; 12~36V DC(analog output) |
| Level sensor material | 304 Stainless Steel; PVC; PTFE |
| Long-term stability | <0.1%FS/Year |
| Temperature drift | <0.01%FS/°C |
D=48mm, H=29mm, d=M10*1mm(Mounting thread), L=Range, D1=8mm
Voltage output wiring:
Red: VCC Black: GND Yellow: 0-5V Blue: RS485A Green: RS485B
Current output wiring:
Red: Loop+ Loop: Loop- Yellow: Null Blue: RS485A Green: RS485B
485 Output cable wiring:
Red: VCC Loop: GND Yellow: Null Blue: RS485A Green: RS485B
For other and customized wiring methods, see the label on the sensor, or consult the after-sales personnel.
The Kacise Fluid Level Meter is a capacitive level sensor that uses advanced technology to ensure accurate measurements. This feature makes it suitable for use in environments with extreme ambient temperatures ranging from -40°C to 85°C. This product can effectively measure levels of liquids such as water, oil, and other non-corrosive liquids.
The Fluid Level Meter product has a wide range of applications, including water treatment plants, oil refineries, chemical processing plants, and many others. It is also suitable for use in tanks, pipes, reservoirs, and other containers. Its high level of precision and accuracy ensures that it delivers reliable measurements, making it a popular choice among users.
The Kacise Fluid Level Meter product is designed with a capacitive liquid level sensor that uses 304 Stainless Steel, PVC, or PTFE materials. This feature makes it resistant to corrosion, ensuring that it can withstand harsh environments. Additionally, the product's long-term stability is <0.1%FS/Year, making it an excellent investment for those who require long-term usage.
The KSLV606 model has a customizable pressure range, making it an excellent choice for different applications. It has a power supply voltage of 5~36V DC and 12~36V DC(analog output), making it easy to use and operate. Additionally, the product's capacitive level switch ensures that it can detect changes in liquid levels quickly, providing accurate readings.
In conclusion, the Kacise Fluid Level Meter is a reliable and accurate product that is ideal for use in various industrial applications. Its advanced technology, capacitive level sensor, and long-term stability make it a popular choice among users. With its customizable pressure range and easy-to-operate features, this product is perfect for different scenarios and occasions.
- Installation support to ensure proper setup and calibration
- Troubleshooting assistance to quickly identify and resolve any issues
- Regular maintenance and calibration services to ensure continued accuracy and reliability
Our team of experienced technicians is dedicated to providing exceptional support and service to our customers. Contact us today to learn more about how we can help you get the most out of your Fluid Level Meter.
