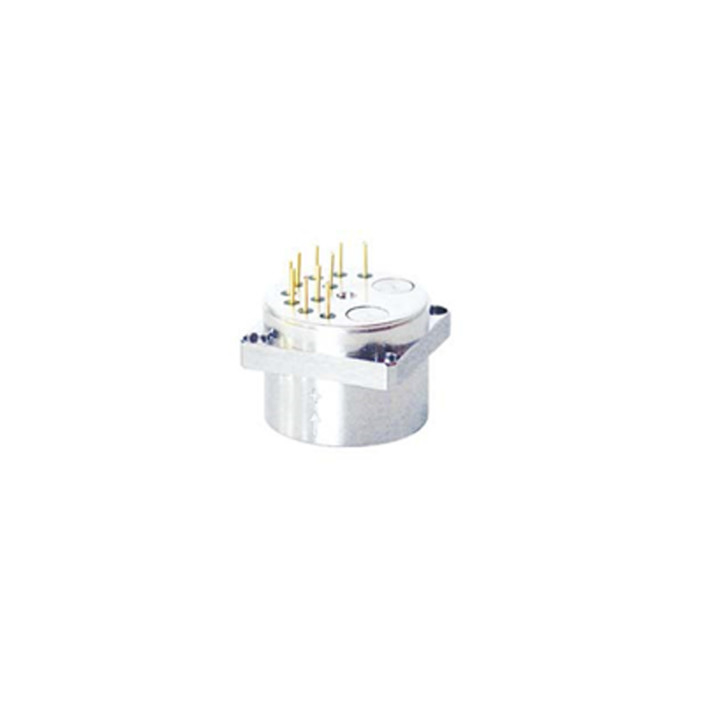

Name: Flexible Quartz Accelerometer For Harsh Conditions survival under 500g Shock
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSQA13
Price: 478.00 USD
Availability: InStock

Nhà > các sản phẩm > cảm biến gia tốc >

Flexible Quartz Accelerometer For Harsh Conditions survival under 500g Shock

500g Shock Quartz Accelerometer

Flexible Quartz Accelerometer

Quartz Accelerometer Sensor Vibration Resistant

Place of Origin:

China (Mainland)

Hàng hiệu:

Kacise

Chứng nhận:

certificate of explosion-proof, CE

Model Number:

KSQA13

Liên hệ với chúng tôi

Yêu cầu Đặt giá

Flexible Quartz Accelerometer For Harsh Conditions survival under 500g Shock

Chi tiết sản phẩm

Vibration Peak Sine:

15g@20Hz ~ 2000Hz

Scale Factor Temperature Sensitivity:

≤100 (ppm/℃)

Input Voltage:

±12 ~ ±18(V)

Size:

Ø25×25(mm)

Bias Temperature Sensitivity:

≤100(μg/℃)

Storage Temperature:

-55~ +120(℃)

Range:

±10g

Bias One-month Composite Repeatability:

≤100(1σ) (μg)

Shock:

500g, half-sine, 1ms ~ 3ms

Làm nổi bật:

500g Shock Quartz Accelerometer

Flexible Quartz Accelerometer

Quartz Accelerometer Sensor Vibration Resistant

Điều khoản thanh toán và vận chuyển

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 working days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

1000 Pieces per Week

Sản phẩm liên quan

Honeywell QA2000-030 Bộ cảm biến gia tốc, Ứng dụng hàng không vũ trụ

Nhận được giá tốt nhất

Magnetic Suction Linear Accelerometer Sensor Uniaxial Module Vibration Performance

Nhận được giá tốt nhất

K-3JSJ-001 Lightweight 3 Axis Acceleration Sensor /Triaxial High Speed Accelerometer 0~3 V

Nhận được giá tốt nhất

Stable Accelerometer Sensor Fiber Optic Gyroscope Easy To Carry High Performance

Nhận được giá tốt nhất

Liên hệ với chúng tôi

86--17719566736

Liên hệ ngay bây giờ

Mô tả sản phẩm

Product Description:

Quartz flexible accelerometers function as uniaxial torque feedback devices, relying on mass detection to identify external acceleration signals. Subsequently, these signals undergo demodulation and amplification through a servo circuit, resulting in an output current signal proportional to the detected acceleration. Widely utilized in aerospace for high-precision navigation systems, as well as in inclinometers for oil drilling and strapdown inertial navigation systems in geological exploration. The key components include a differential capacitance sensor, a detection mass pendulum assembly, an electromagnetic torque device, and an electronic amplifier. Acceleration along the sensitive axis prompts a positional change in the detection mass, detected by a position detector. This signal is then fed into the amplifier, which drives the force generator to restore the detection mass to its original position.

Product Feature:

● Small size and light weight

● Analog output

● Shock, vibration and high temperature resistance

● Wide load resistance range

● Square precision mounting flanges

Performance Characteristics:

Performance	KSQA13
Input Range (g)	±10
Bias (mg)	≤10
Temperature Sensitivity (μg/℃)	≤100
Three-hour Stability (1σ) (10^-6)	≤100
Scale Factor (mA/g)	2.3 ~ 3.5
Temperature Sensitivity (10^-6/℃)	≤100
Three-hour Stability (1σ) (10^-6)	≤100
Input Voltage (V)	±12 ~ ±18
Operating Temperature (℃)	-45 ~ +100
Size (mm)	Ø25×25
Weight (g)	≤60

Outline:

Outline

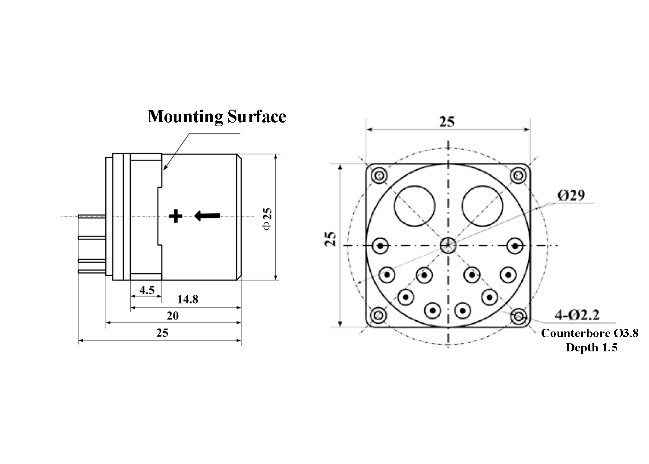

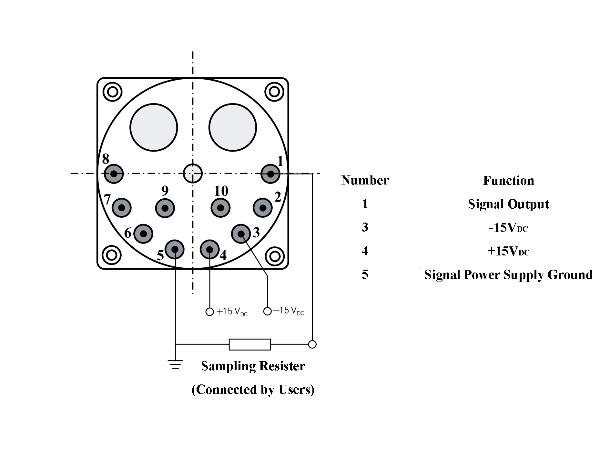

JKSQA13 Configuration Drawings	KSQA13 Pin & Wiring Diagram

Environment
Vibration Peak Sine	15g@20Hz ~ 2000Hz
Shock	500g, half-sine, 1ms ~ 3ms
Storage Temperature	-55℃ ~ +120℃

Support and Services:

Accelerometer Sensor Technical Support and Service

Our technical support team is available to answer any questions you may have about Accelerometer Sensor. We will provide you with comprehensive information about the product, as well as troubleshooting tips and advice on how to optimize your experience. Our team is also available to provide remote assistance with installation and setup.

Our service team is available to provide repair and maintenance services for Accelerometer Sensor. We can provide timely and efficient repairs and preventive maintenance to ensure that your product is performing at its best. We also offer extended warranties for added peace of mind.

Packing and Shipping:

Packaging and Shipping for Accelerometer Sensor:

The Accelerometer Sensor product will be packaged in a box made of corrugated cardboard, to ensure that the product is safe and secure during shipping. The box will be sealed with packaging tape. The product will be protected with bubble wrap.

The Accelerometer Sensor product will be shipped via a reliable and secure courier service. Tracking information will be provided to the customer to ensure safe delivery.
