Name: High-performance motion tracking with Electronic Gyroscope Sensor with ≤0.005º/h^1/2 Random walk coefficient
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSFG-98
Price: 431.00 USD
Availability: InStock

Nhà > các sản phẩm > Bộ cảm biến vòng xoáy điện tử >

High-performance motion tracking with Electronic Gyroscope Sensor with ≤0.005º/h^1/2 Random walk coefficient

Place of Origin:

China (Mainland)

Hàng hiệu:

Kacise

Chứng nhận:

certificate of explosion-proof, CE

Model Number:

KSFG-98

Liên hệ với chúng tôi

Yêu cầu Đặt giá

High-performance motion tracking with Electronic Gyroscope Sensor with ≤0.005º/h^1/2 Random walk coefficient

Chi tiết sản phẩm

Random walk coefficient:

≤0.005(º)/h^1/2

Dimensions:

98×98×35mm

Bias drift(10s smooth) -45~ + 70℃:

≤0.1(°) / H

Operate temperature:

-40～+70℃

Steady-state power consumption (full temperature):

<3W

Supply voltage:

±5V

weight (g):

<550

start time:

≤5s

Điều khoản thanh toán và vận chuyển

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 working days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

1000 Pieces per Week

Sản phẩm liên quan

Băng hình

Single Axis Fiber Optic Electronic Gyroscope Sensor Shocking Resistance

Nhận được giá tốt nhất

Băng hình

Well Logging Dynamically Tuned Gyroscope For High Temperature Environment

Nhận được giá tốt nhất

Small Size Mems Gyroscope Sensor Angel Measuring Instruments Dip Performance

Nhận được giá tốt nhất

200Hz Single Axis Gyro Sensor , Gyroscope Sensor Module High Bias Stability

Nhận được giá tốt nhất

Liên hệ với chúng tôi

86--17719566736

Liên hệ ngay bây giờ

Mô tả sản phẩm

Product Description:

This product serves as an inertial angle rate sensor utilizing the optical Sagnac effect for measuring rotational angular velocity along the sensitive axis of the carrier. The incorporation of a digital closed-loop detection circuit facilitates the extraction of the optical path difference induced by external physical angular speed in clockwise light. Through modulation and demodulation of the optical path signal voltage, closed-loop feedback and control are established, achieving real-time detection of angular velocity signals.

Components and Functionality: Consisting of two integral parts—an optical angular velocity sensitive unit and a signal detection module—this product supplies information on uniaxial angle increments and internal temperature.

Areas of Use: Tailored for applications including photoelectric cranes, conventional cranes, flying platforms, inertial navigation, inertial measurement systems, optical instruments, photographic tools, platform stabilization devices, and inertial measurement instruments.

This high-performance gyroscope sensor is ideal for all types of navigation and attitude determination applications, providing superior reliability and accuracy. It has been designed with the highest quality materials and components, ensuring optimal performance and durability.

The Electronic Gyroscope Sensor is the perfect solution for any navigation and attitude determination needs. With its superior performance, reliability, and accuracy, it is the ideal choice for any application.

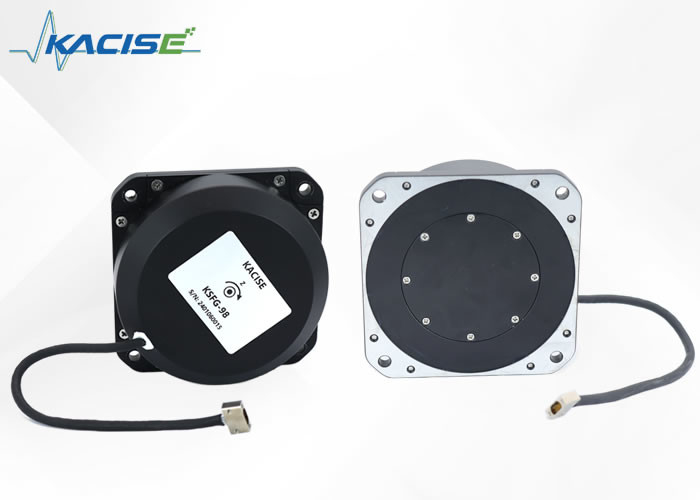

High-performance motion tracking with Electronic Gyroscope Sensor with ≤0.005º/h^1/2 Random walk coefficient 0

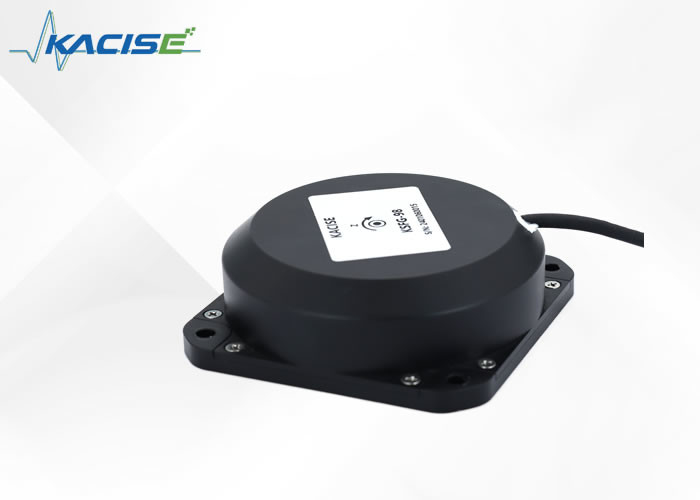

High-performance motion tracking with Electronic Gyroscope Sensor with ≤0.005º/h^1/2 Random walk coefficient 1

Technical Parameters:

Sn#	Test item	H	L	Remark
1	Dimensions (mm)	98×98×35	98×98×35
2	start time (s)	≤5	≤5
3	Bias drift (°) / h (10s smooth, fix temperature)	≤0.015	≤0.03
4	Bias drift (°) / h (10s smooth) -45~ + 70	≤0.03	≤0.06
5	Bias repeatability (°) / h	≤0.005	≤0.01
6	Random walk coefficient⁽º⁾/h^1/2	≤0.001	≤0.002
7	Scale factor non-linearity (ppm)	≤10	≤20
8	Scale factor repeatability (ppm)	≤10	≤20
9	Operate temperature ℃	-40～+70	-40～+70
10	Storage temperature of (℃)	-45～+80	-45～+80
11	Dynamic range (°) / s	±300	±300
12	Supply voltage (V)	±5	±5
13	Steady-state power consumption (full temperature) (W)	<3	<3
14	weight (g)	＜550	＜550

Support and Services:

At Electronic Gyroscope Sensor, we provide technical support and services to ensure that our customers have access to the most up-to-date information and products. Our technical support team is available to answer any questions and provide technical assistance for our products. Our services include:

On-site installation and setup
Troubleshooting and repair
Product customization
Upgrades and software updates
Training and user education

We strive to provide the highest quality technical support and services to our customers. If you have any questions, please don't hesitate to contact our technical support team.

Packing and Shipping:

Packaging and Shipping

Electronic Gyroscope Sensor

The electronic gyroscope sensor will be packaged in a cardboard box with appropriate cushioning and foam lining to ensure the product arrives safely and undamaged. The package will be marked with the product name and a barcode for easy identification.

The package will be shipped via a reliable delivery service, such as UPS/FedEx or USPS. The package will be tracked so that the customer can see where their package is at all times.
