Place of Origin:
China (Mainland)
Hàng hiệu:
Kacise
Model Number:

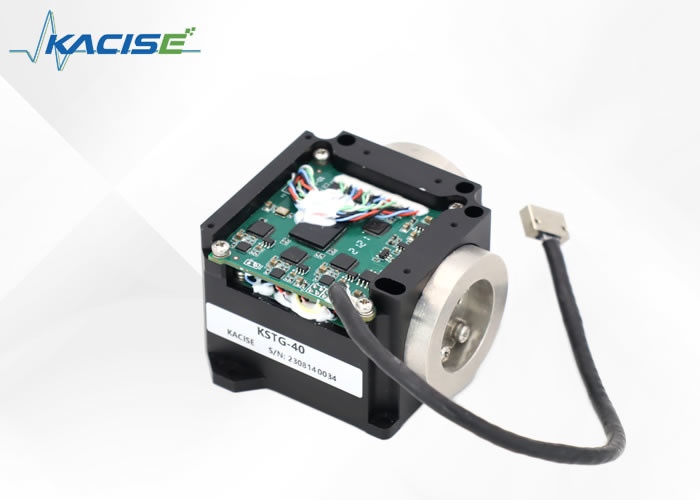

KSTG-40
Băng hình
Băng hình

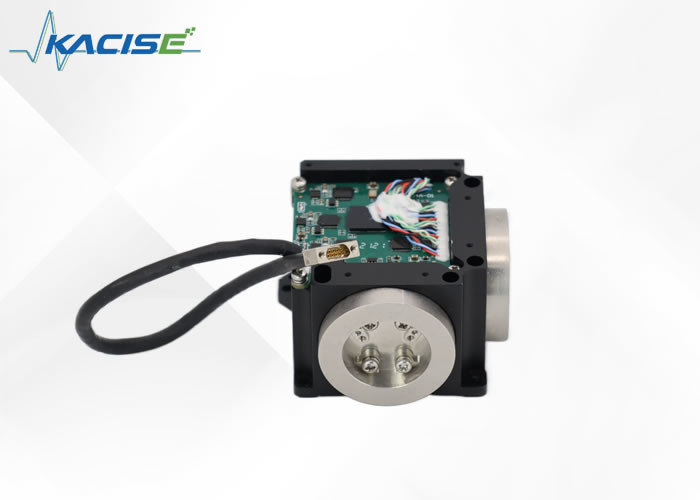

This product is an inertial angle rate sensor based on the optical Sagnac effect for measuring the rotational angular velocity of the carrier along the sensitive axis. The digital closed-loop detection circuit is used to extract the optical path difference of the clockwise light caused by the external physical angular speed, and the voltage signal of the optical path signal is modulated and demodulation, and the closed loop feedback and control are realized to achieve the purpose of real-time angular velocity signal detection.
Function: This product consists of two parts: optical angular velocity sensitive unit and signal detection, providing uniaxial angle increment information and internal temperature information.
Application scope: The products are mainly suitable for photoelectric crane / crane / flying platform / inertial navigation / inertial measurement system / optical / photographic instrument / platform stabilization device / inertial measurement instrument and other applications.

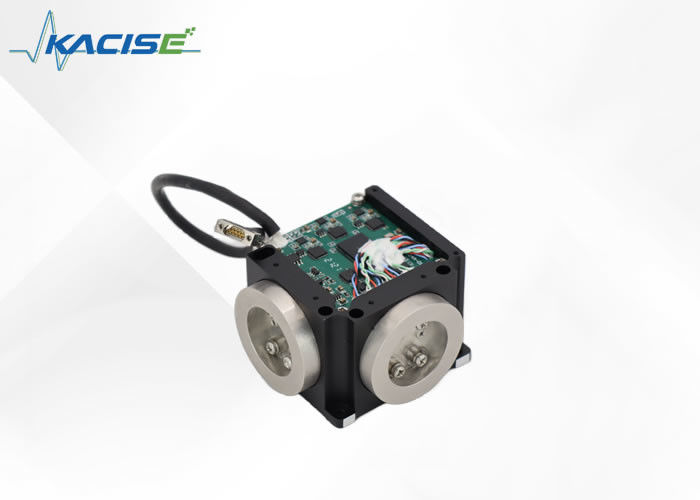

Three-axis gyroscope
Small size and light weight
High Reliability
RS422 Digital output
Wide range of available areas
| Sn# | Test item | H |
| 1 | Dimensions (mm) | 71.5×68×45 |
| 2 | start time (s) | 3 |
| 3 | Bias drift (°) / h (10s smooth, fix temperature) | ≤0.1 |
| 4 | Bias drift (°) / h (10s smooth) -45~ + 70℃ | ≤0.5 |
| 5 | Bias repeatability (°) / h | ≤0.1 |
| 6 | Random walk coefficient(º)/h1/2 | ≤0.01 |
| 7 | Scale factor non-linearity (ppm) | ≤20 |
| 8 | Scale factor repeatability (ppm) | ≤10 |
| 9 | Operate temperature ℃ | -45～+70 |
| 10 | Storage temperature of (℃) | -50～+80 |
| 11 | Dynamic range (°) / s | ±500 |
| 12 | Supply voltage (V) | +5 |
| 13 | Steady-state power consumption (full temperature) (W) | <4 |
| 14 | weight (g) | ＜320 |
We provide technical support and services for Electronic Gyroscope Sensor. Our support team is composed of experienced engineers and technicians who can quickly and accurately answer any questions you may have about the product. We provide on-site and remote technical support and services, such as installation, calibration, troubleshooting, maintenance, and upgrades. We also offer free online tutorials and user guides to help you get the most out of your Electronic Gyroscope Sensor.
The Electronic Gyroscope Sensor is packaged in a custom-made cardboard box to ensure the product is secure during shipment. The box is lined with bubble wrap to further protect the product from external shocks and vibrations.
The box also includes all necessary paperwork, such as product manuals and warranty cards. The box is then secured with tape and labelled with the address of the recipient.
The product is then shipped via a reliable carrier with a tracking number, allowing customers to easily monitor their shipment.
