Place of Origin:
China (Mainland)
Hàng hiệu:
Kacise
Model Number:
KSTG-40
Băng hình
Băng hình

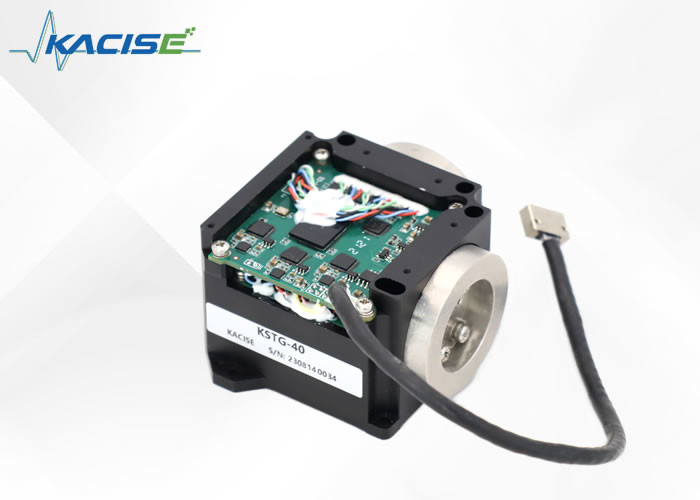

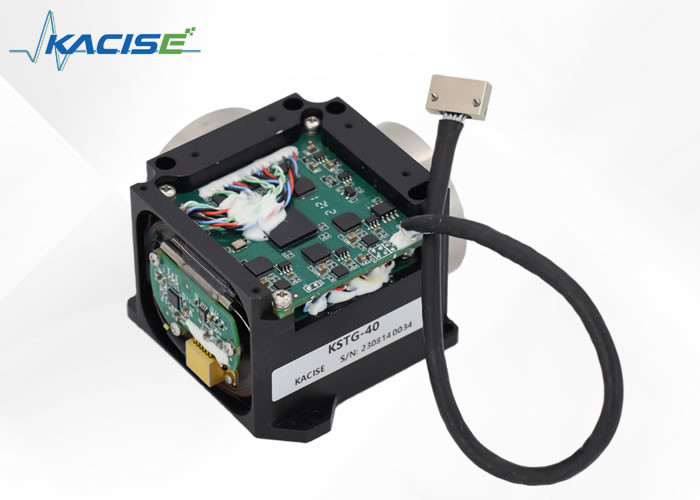

This product is an inertial angle rate sensor based on the optical Sagnac effect for measuring the rotational angular velocity of the carrier along the sensitive axis. The digital closed-loop detection circuit is used to extract the optical path difference of the clockwise light caused by the external physical angular speed, and the voltage signal of the optical path signal is modulated and demodulation, and the closed loop feedback and control are realized to achieve the purpose of real-time angular velocity signal detection.
Function: This product consists of two parts: optical angular velocity sensitive unit and signal detection, providing uniaxial angle increment information and internal temperature information.
Application scope: The products are mainly suitable for photoelectric crane / crane / flying platform / inertial navigation / inertial measurement system / optical / photographic instrument / platform stabilization device / inertial measurement instrument and other applications.
Three-axis gyroscope
Small size and light weight
High Reliability
RS422 Digital output
Wide range of available areas
| Sn# | Test item | H |
| 1 | Dimensions (mm) | 71.5×68×45 |
| 2 | start time (s) | 3 |
| 3 | Bias drift (°) / h (10s smooth, fix temperature) | ≤0.1 |
| 4 | Bias drift (°) / h (10s smooth) -45~ + 70℃ | ≤0.5 |
| 5 | Bias repeatability (°) / h | ≤0.1 |
| 6 | Random walk coefficient(º)/h1/2 | ≤0.01 |
| 7 | Scale factor non-linearity (ppm) | ≤20 |
| 8 | Scale factor repeatability (ppm) | ≤10 |
| 9 | Operate temperature ℃ | -45～+70 |
| 10 | Storage temperature of (℃) | -50～+80 |
| 11 | Dynamic range (°) / s | ±500 |
| 12 | Supply voltage (V) | +5 |
| 13 | Steady-state power consumption (full temperature) (W) | <4 |
| 14 | weight (g) | ＜320 |
We provide technical support and service for our Electronic Gyroscope Sensor for customers who have purchased our product. Our technical support team is available to help customers with any questions or issues they may have.
Our technical support team is available 24 hours a day, 7 days a week. We can be reached via phone, email or chat. We will respond to your inquiries as quickly as possible.
Our team is knowledgeable and experienced in troubleshooting and resolving any issues you may have with your Electronic Gyroscope Sensor. We are also able to provide advice on using the product and making the most out of its features.
Electronic Gyroscope Sensor Packaging and Shipping:
The Electronic Gyroscope Sensor will be packaged in a secure box to protect it during transit. It will be shipped using a reliable carrier with tracking and insurance to ensure it arrives at its destination in perfect condition.
