Nguồn gốc:
Trung Quốc
Hàng hiệu:
KACISE
Chứng nhận:
CE
Model Number:
GXPS

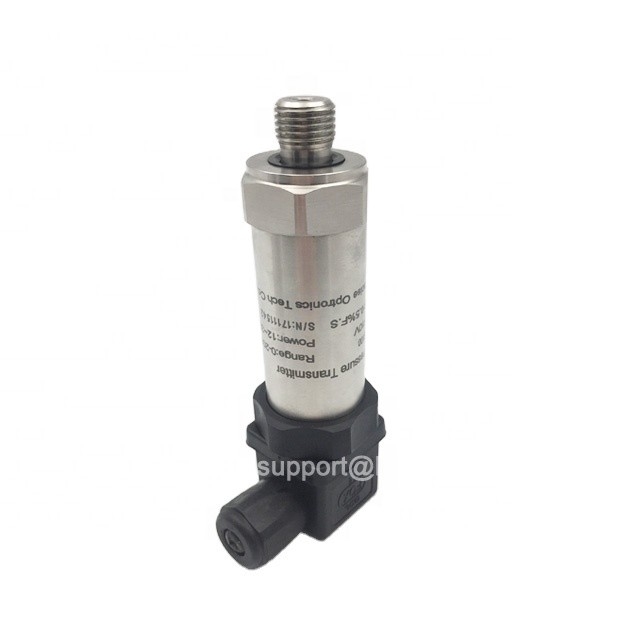

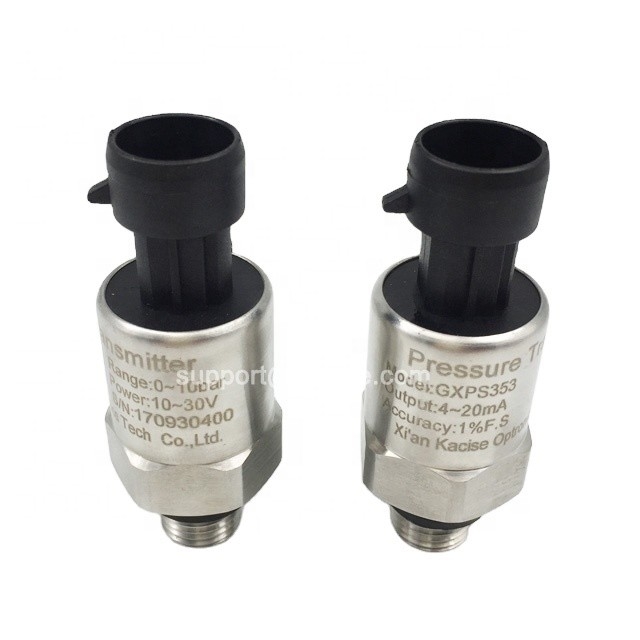

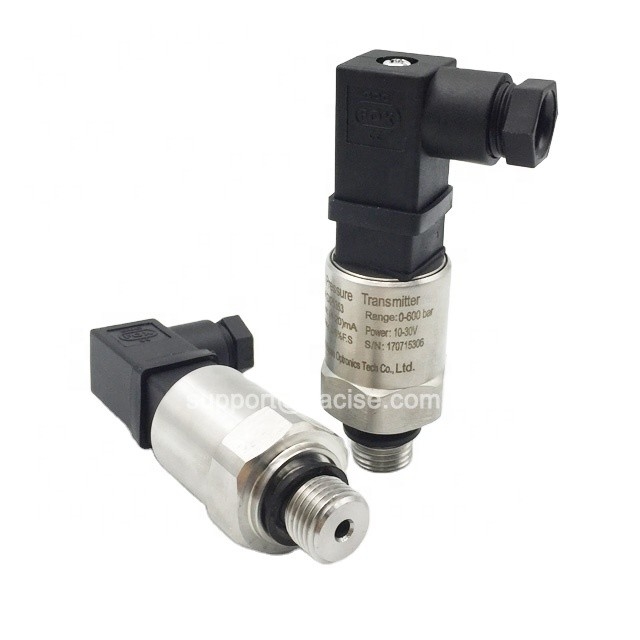

Economic Water, Air and Oil analog Pressure Sensor
Feature of analog pressure sensor
Accuracy ±0.1%F.S ±0.25%F.S ±0.5%F.S ±1.0%F.S
Various measuring range and signal output
High stability and high quality
Introduction of analog pressure sensor
The GXPS pressure sensor has the characteristics of high reliability, high stability, high accuracy. It contains a wide kind of transmitters which can meet different demands and applications. Widely used in gas, liquid pressure detection, such as water,oil,mildly corrosive,corrosive gas and liquid pressure.
Parameter of analog pressure sensor
Spec. | Value | |
Pressure range | -0.1MPa~1kPa......800MPa (customizable) | |
Temperature range | -40°C~85°C (customizable) | |
Load pressure | 2 times nominal value pressure (2X) | |
Rupture pressure | 4 times nominal value pressure (4X) | |
Accuracy | ±0.1%, ±0.25%, ±0.5%, ±1.0%F.S (customizable) | |
Stability | Typical value 0.25% F.S, Max. value: 0.4%F.S | |
Operating temperature | -40°C~85°C (customizable) | |
Compensation temperature | -10°C~70°C (customizable) | |
Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti | |
Output signal | 4~20mA, 0~5V,0~10 V, 1~5V,1~10V, RS232, RS485,USB and so on (customizable) | |
Power supply | 5VDC,24VDV,6~24VDC,12~30VDC, 9VDC battery, 3.6VDC battery and so on (customizable) | |
Insulation | >100M &;@50V | |
Electrical connection | Waterproof fixed cable, Hirschmann, Air plug and so on (customizable) protection grade : IP65, IP67, IP68 | |
Pressure port | M20×1.5, G1/4, G1/2, R1/2, NPT1/2 (customizable) | |
Pressure type | Gage, Seal, Absolute | Response time: 10ms |
Certificate | Intrinsically safe , CE, explosion suppression | |
EMI/EMC | EMI: EN50081-1/-2; EMC: EN50082-2 | |
Package of analog pressure sensor
In order to choose the suitable pressure sensor for you, please send us below information with the feedback.
1. pressure range
2. accuracy
3. output signal
4. power supply voltage
5. pressure port
6. elec. connection
7. medium
8. temperature range
We supply high quality pressure sensors and services, and welcome your inqury at any time.
