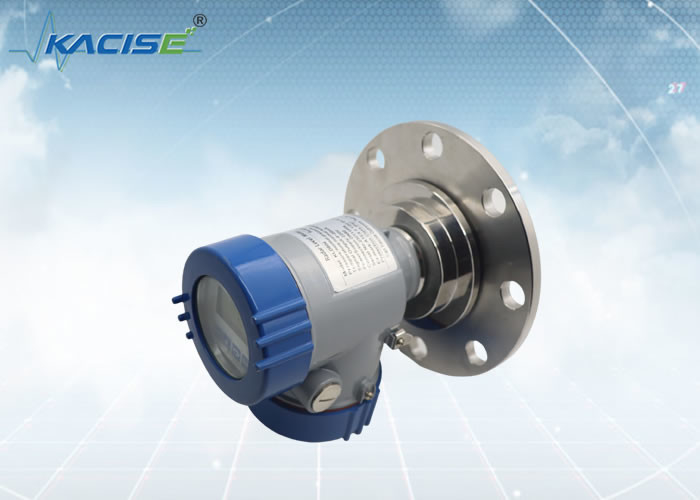

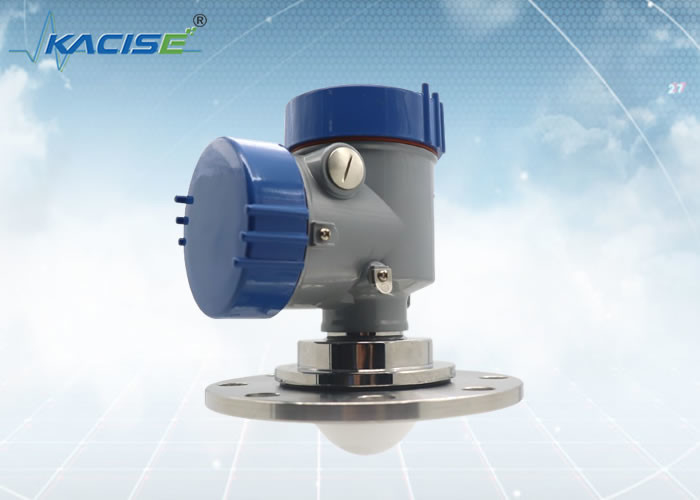

KLD804 80G FM Radar Level Sensor
Introduction
80GHz high frequency radar level meter has the advantages of small antenna size, narrow beam, large signal bandwidth and high range resolution. PTFE sensor for liquid, especially corrosive liquid.
Feature
|
KLD804
|
Medium: strong corrosive liquid, steam, foam Measuring range: 0.1m~10/20/30/60/100m Process connection: flange ≥ DN50 Process temperature: -40～130℃ Process pressure: -0.1～1.0MPa Antenna size: 76mm lens antenna Antenna material: PTFE Accuracy: ±1mm Protection class: IP67 Center frequency: 80GHz Launch angle: 2° Power supply: two-wire /DC24V four-wire /DC12~24V four-wire /AC220V Casing: aluminum/plastic/stainless steel Signal output: two-wire /4...20mA/HART protocol four-wire 4...20mA/ RS485 Modbus |
Casing Dimension
Unit in mm:
Installation Method
Flange Installation
When using flange installation, the minimum distance between the instrument and the tank wall should be 200mm.
Hoisting Installation
Note: Please avoid vibration, strong electromagnetic interference and loads during installation.
Misalignment method:
1. On-line calibration: on-site process equipment needs to stop production;
2. Reference point calibration: full scale setting;
3. Upper computer calibration: 250Ω resistor, Hart converter, USB interface are required.
Xi'an Kacise Optronics Tech Co., Ltd considers itself a solution provider and manufacturer. We offer maximum flexibility and a cost-optimised offer for our OEM customers.
What we could provide:
The range includes customized shell version/color, thread type(G-Thread/NPT Thread), Customized Software, prints, manual and catalog. If you are interested in installing at your side, Radar Module is available for sure.
