Place of Origin:
China
Hàng hiệu:
Kacise
Model Number:
KOP300

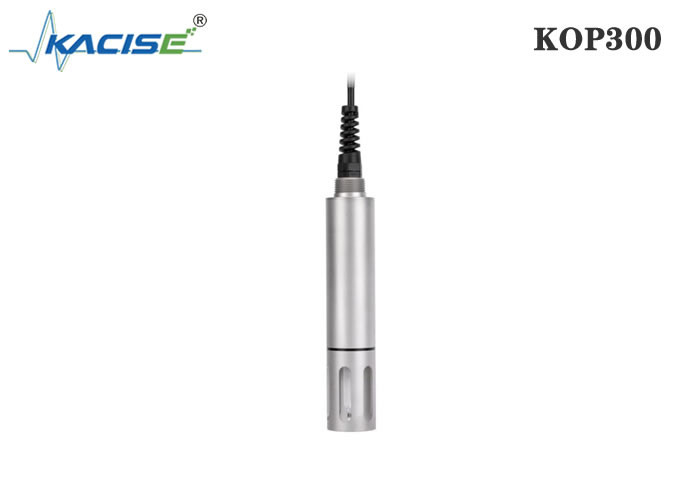

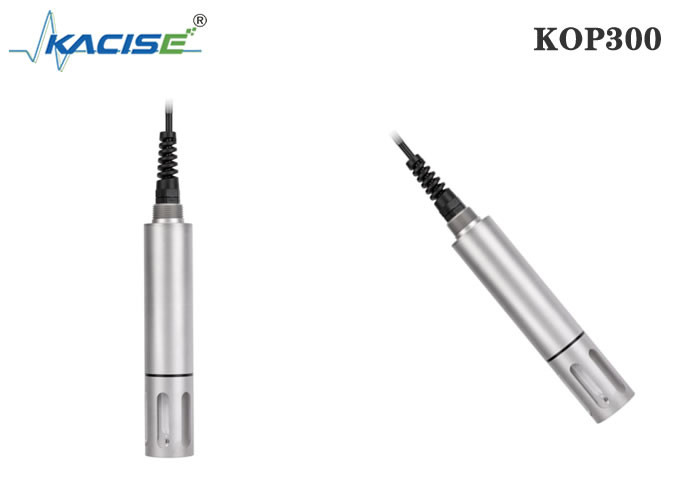

KOP300 Online ORP Sensor Brief Datasheet
Instrument Introduction
KOP300 online ORP sensor is an online water quality analyzer based on digital water quality analysis platform. Integrated design, using industrial online electrode, digital, intelligent sensor design concept. The functions of electrode signal detection, temperature detection and digital signal conversion are realized in the instrument. RS485 signal output, easy networking and system integration, widely used in surface water, pollution sources and other industries.
Characteristics
Technical Specifications
| Model number | KOP300 |
| Measurement parameter | ORP, temperature |
| Method of measurement | Glass electrode method |
| Measurement mode | Immersion measurement |
| Measuring range |
ORP: (- 2000 ~ + 2000) mV Temperature: (0 ~ 60) °C |
| Accuracy | ≤ ± 1 mv |
| Repeatability | ≤ ± 1 mv |
| Resolution | 0.1 mv |
| Response time | ≤10s |
| Drifts | ≤ ± 1 mv |
| Calibration period | Six months |
| Temperature range | (0 ~ 60) °C |
| Protection level | IP68 |
| MTBF | ≥1440h/Time |
| Means of communication | RS485(Modbus RTU), maximum baud rate 115200 bps |
| Supply voltage | (12/24) V DC |
| Power consumption | < 0.5W |
| Material Quality | Stainless steel, POM |
| Weight | 0.5 kg |
| Contour dimension | 205 mm × φ40 mm |
