Place of Origin:
China
Hàng hiệu:
Kacise
Model Number:

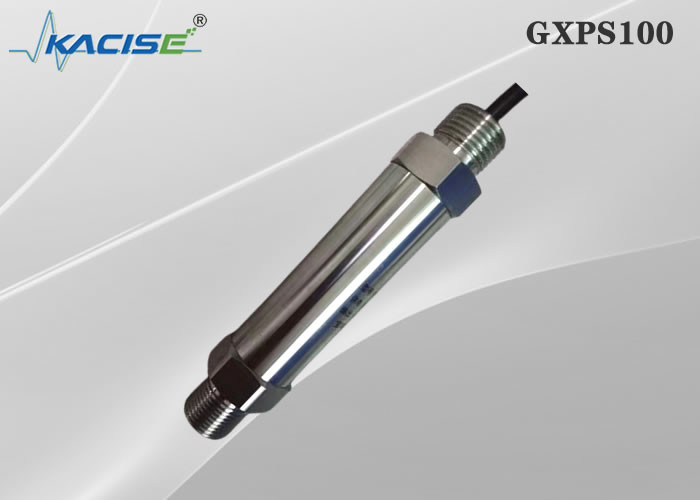

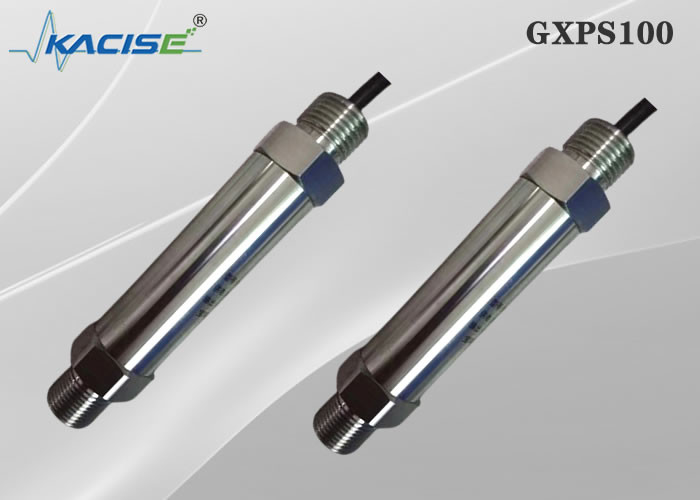

GXPS100
1.Introduction
Smart pressure transmitter is designed for use in applications which deal with corrosive pressure media. A high sensitivity silicon pressure chip is employed in the sensor.Through strict component making, semi-finished product and all-finished product testing and aging, the transmitter is stable
and reliable, having excellent flexibility, sensitivity and diversity.It is widely used for pressure measure and control of petroleum,chemi-industry, metallurgy, power station and hydrology, etc.
2. Specification
| Measuring media | Liquid/gas | ||
| Measuring range | -0.1...0~0.01...60MPa | ||
| Overpressure | 150 %FS | ||
| Pressure type | Gauge pressure | ||
| Power supply | 12~30V | ||
| Output signal | 4~20 mA | ||
| Accuracy | ±0.25%FS ±0.5%FS | ||
| Long-term stability | 0.2%FS/year | ||
| Storage temperature | -40~+120°C | ||
| Operating temperature | -30~+80°C | ||
| Process connection | Bottom thread | 1/4”NPT male or others | |
| Electrical connection | G1/2 | ||
| Protection | IP rating | IP65 | |
| Housing material | Stainless steel 304 | ||
3. Dimension (Unit:mm OEM acceptable)
4.Electrical connection
(2 wires,4~20mA)
RED: Power +
BLACK: Power - (4~20mA)
5.Production and shipment pictures
