Nguồn gốc:
Trung Quốc
Hàng hiệu:
KACISE
Chứng nhận:
CE
Model Number:
KLD-2601
Product Overview

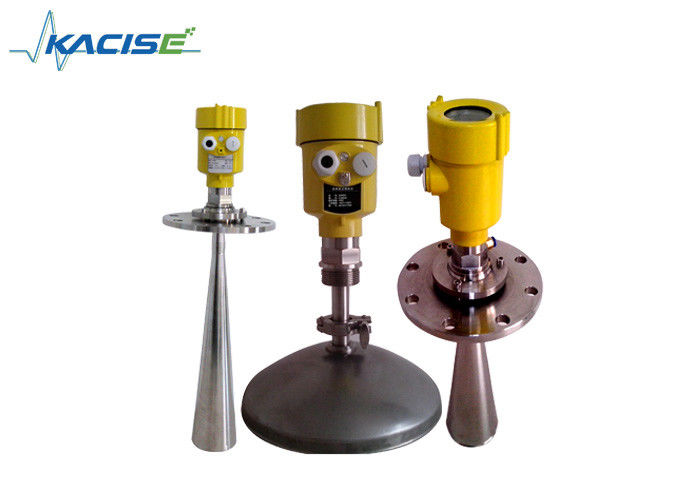

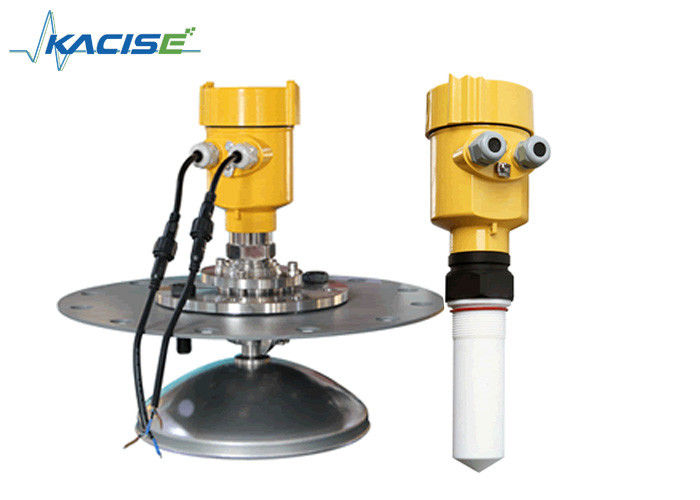

This series of radar level meter adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 80 meters. Antenna is optimized further processing, the new fast microprocessors have higher speed and efficiency can be done signal analysis, the instrumentation can be used for reactor, solid silo and very complex measurement environment.
| Suitable for Medium | Strongly corrosive liquid |
| Application | HCl, H2SO4, HF and strong base in tank, etc. |
| Measuring Range | 10m |
| Process Connection | Flange, Min. flange is DN80 |
| Medium Temperature | -40 ~ 120 ℃ |
| Process Pressure | -0.1 ~ 0.1MPa |
| Accuracy | ±5~10mm |
| Protection Grade | IP67 |
| Frequency Range | 26GHz |
| Explosion-proof Grade | Exia IICT6 Gb |
| The signal Output | 4 ~ 20mA/HART(2 wire/4wire),RS485/Modbus is optional |
|
(4~20)mA/HART (Two wire system) The power supply and the output current signal sharing a two core shield cable. The supply voltage range see technical data. For intrinsically safe type must be a safety barrier between the power supply and the instrument. |
| (4~20)mA/HART(Four wire system) Separate power supply and the current signal, respectively using a two-core shielded cable. The supply voltage range see technical data. |
| RS485 / Modbus Power supply and Modbus signal line separate drespectively using a two-core shielded cable, the power supply voltage range see technical data. |
