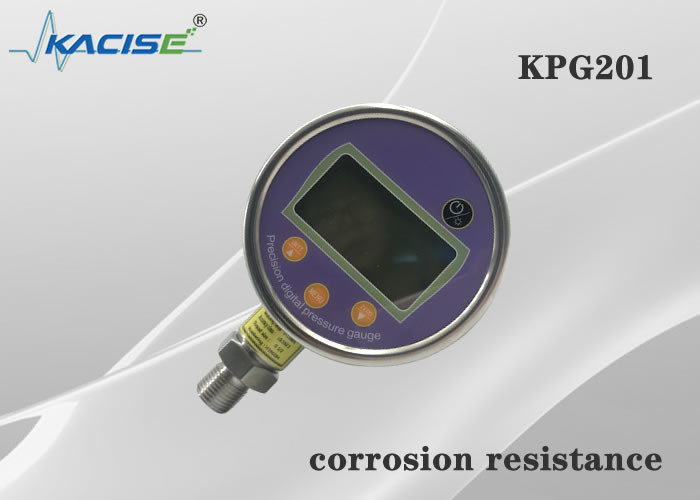

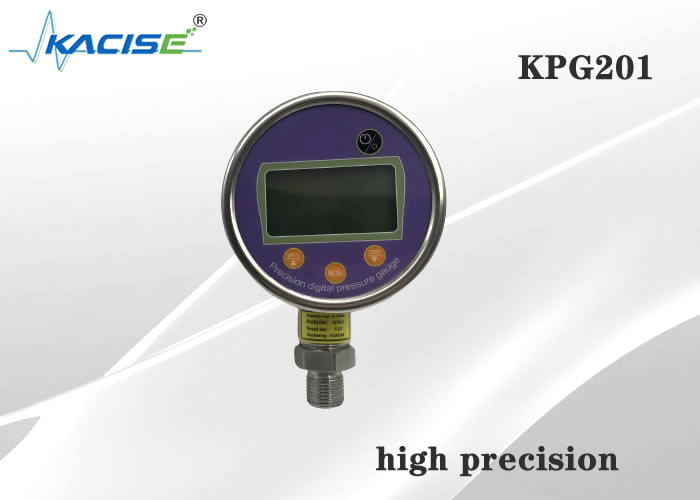

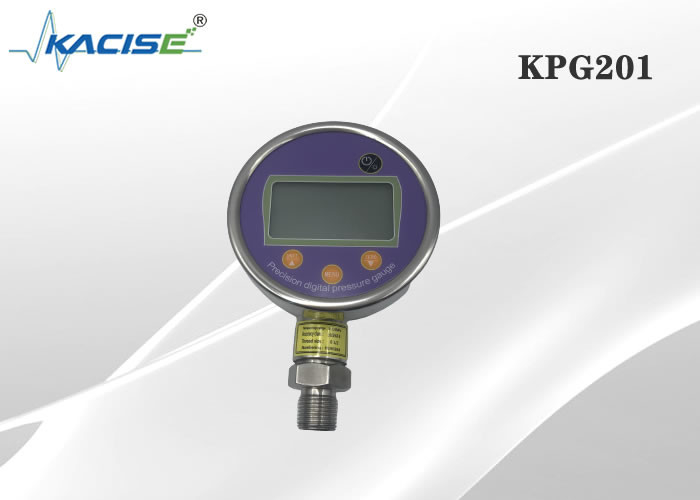

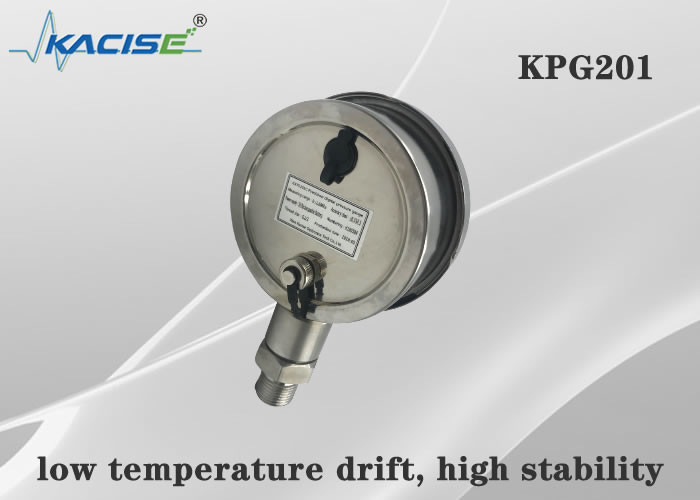

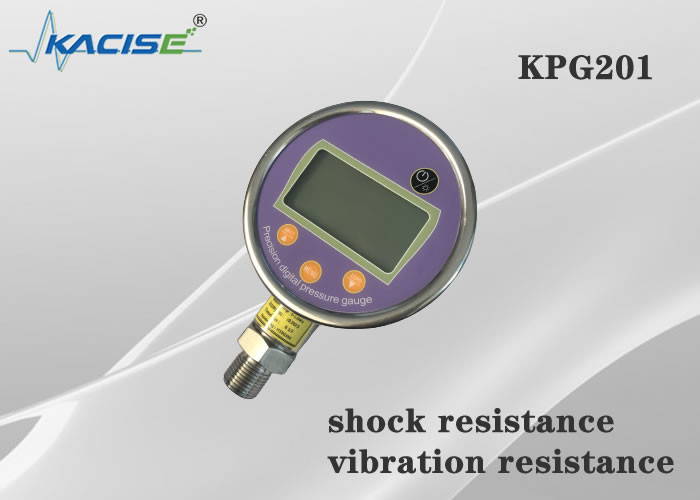

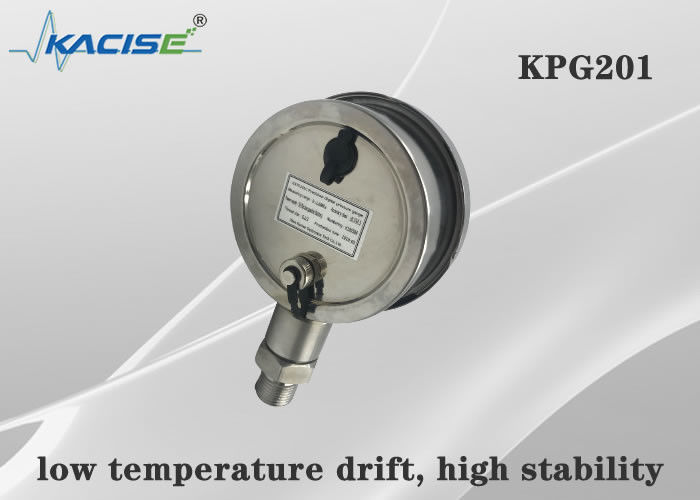

KPG201 Digital Pressure Gauge With Data Logger
1. Description
KPG201 precision digital pressure gauge is in accordance with the latest national standards developed and produced high-precision smart pressure measuring instruments. Pressure gauge mainly by the pressure sensor and signal processing circuit. Imported pressure sensor, superior performance, with high precision, corrosion resistance, shock resistance, vibration resistance, low temperature drift, high stability and other advantages; signal processing circuit using the latest ultra-low power processors, signal processing chips and power supply Management chip composition. High-capacity high-performance lithium battery-powered, no external power supply. The appearance of the instrument delicate, compact, beautiful, easy to use.
2. Features
• Touch button, no mechanical contact, a good solution to the problem of life and sealing.
• Wide temperature compensation, ultra-low power consumption.
• Unit changing, peak valley and other functions fully preserved.
• Multi additional setting and functions available, user can set by environment and habits.
• IP grade ≧ IP66, higher than the industry level.
3. Specification
| Item | Spec. |
| Pressure range | -100kpa~250pa~5kpa~250Mpa |
| Accuracy | 0.5%, 0.4%, 0.2%, 0.1%, 0.05%, 0.02% |
| Display | 5-digit dynamic display + percentage indicator |
| Pressure unit | Pa, kPa, MPa, psi, bar, mbar, mmH2O, mmHg, inH2O, inHg, kgf/cm2 |
| Overload pressure | 150% FS |
| Destruction pressure | 200% FS |
| Power supply | 4.2V rechargeable lithium battery |
| Temperature | -20 ℃ ~ 60 ℃ |
| Humidity | ≤ 85% RH |
| Calibration environment | 20 ℃ ± 2 ℃ |
| Explosion-proof level | ExiaIICT4 optional |
| IP Grade | IP66 |
| Data record limit | 50000 |
| Process connection | M20 × 1.5 (male), special thread customizable |
| Dimensions | height 170mm, width 110mm, thickness 50mm |
