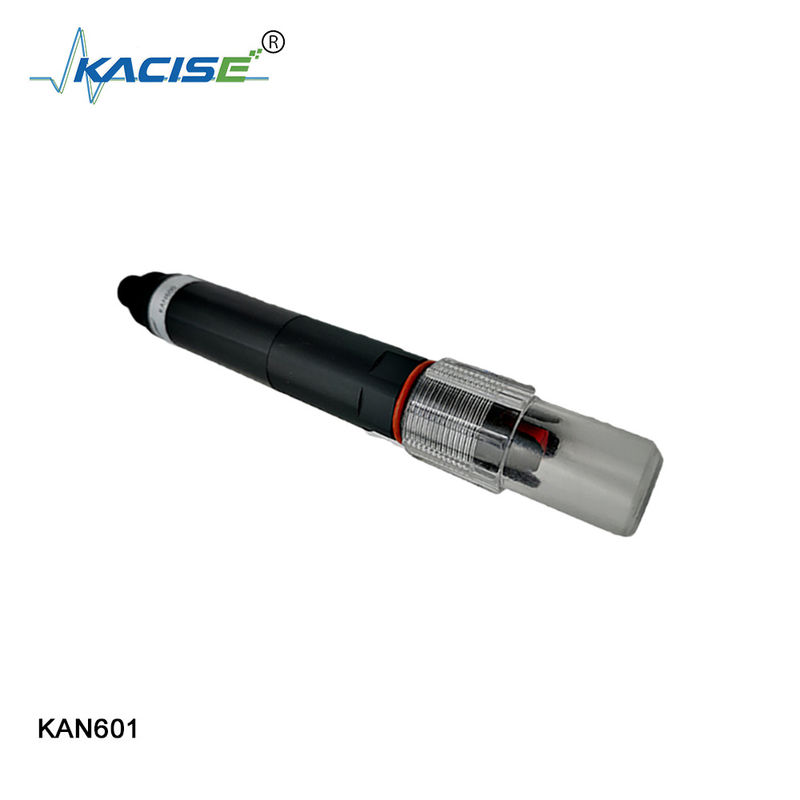

Kacise KAN601 Online Ammonia Nitrogen Sensor

Application Environment

KAN601 integrated online ammonia nitrogen sensor is fabricated using a PVC membrane-based ammonium ion-selective electrode for testing ammonium ion content in water with temperature compensation to ensure fast, simple, accurate, and economical testing. The technical parameters, maintenance, and communication protocols of the ammonia nitrogen sensor are described in detail in this user manual.

• Signal output: RS-485 bus, Modbus/RTU protocol, convenient to connect to PLC, DCS, industrial control computer, general controller, paperless recording instrument or touch screen, and other third-party equipment.
• In the patented ammonium ion probe, the internal reference solution oozes extremely slowly from the microporous salt bridge at a pressure of at least 100 KPa (1 Bar). Such a reference system is very stable and has a longer electrode life than conventional industrial electrodes.
• Easy to install: 3/4 NPT thread (pipe thread) for easy submersible installation or installation in pipes and tanks.
• IP68 protection level.

Technical Specifications

Dimensional Drawing

Tip: Measuring principle of the spectral on-line sensors for nitrate, nitrite, and COD

The spectral measurement of nitrate and nitrite by kacise is based on the principle of an absorption measurement; nitrate and nitrite ions absorb light in the UV range.

The absorption measurement of 256 wavelengths over a wide wavelength range is the so-called absorption spectrum.

From the high information content of the measured spectrum, the measured values are calculated using evaluation models. The evaluation models are based on methods and characteristics, which were obtained from a variety of measurements and long-term analyses. By using the entire information content of the spectrum, it is possible to determine the parameters, several parameters at a time and simultaneously eliminate cross-sensitivities of individual parameters and interference effects such as turbidity.

• By using UV-VIS sensors (wavelength range of 200 – 720nm),

nitrate and carbon parameters (COD, BOD, TOC, SAC) and TSS can be measured.

• In order to distinguish nitrate and nitrite, UV sensors

(wavelength range of 200-390 nm) are required. These sensors can also determine carbon parameters (COD, BOD, TOC, SAC).

In-situ UV-VIS spectrometric sensors represent a precise measuring technique with long-term stability, which permit quasi-continuous recording of the selected parameter NO3 and NO2 in the smallest measuring cycles of minutes.

The disturbance variables for optical measuring, such as turbidity/suspended solids, are eliminated by spectral recording.

Thanks to integrated ultrasonic cleaning, a very long maintenance-free operation is possible.
