Place of Origin:
CHINA
Hàng hiệu:
kacise
Chứng nhận:
CE
Model Number:
KAN310

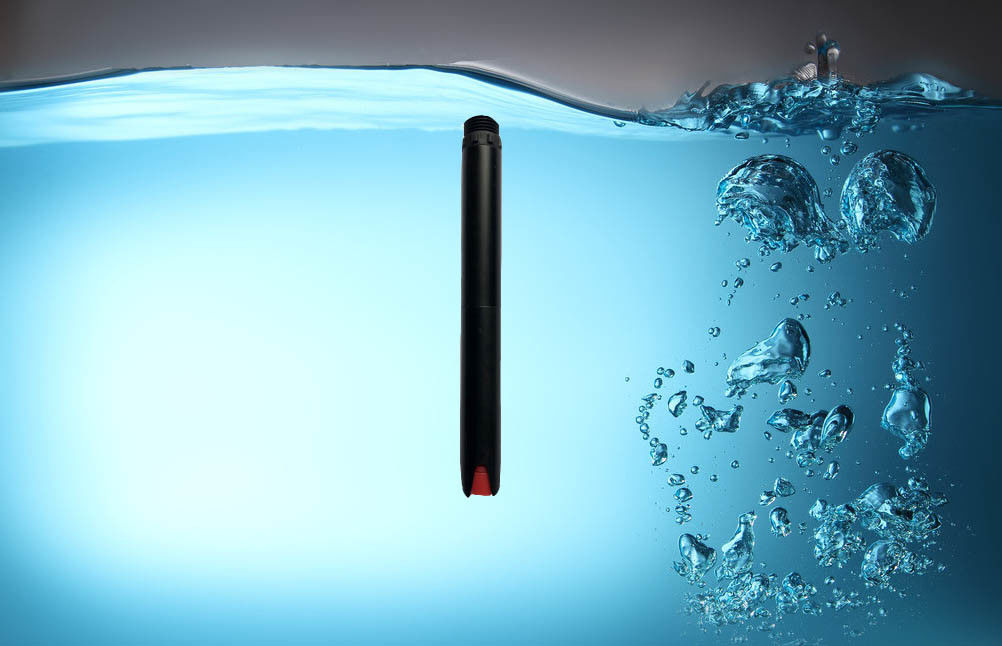

KAN310 integrated on-line ammonia-nitrogen sensor is made of ammonium ion selective electrode based on PVC membrane, which is used to measure the content of ammonium ion in water with temperature compensation.
| Model Number | KAN310 |
| Range | 0 ~ 10.00 mg/L (0 ~ 100.00 mg/L) |
| Resolution | 0.01 MGL |
| Precision | ± 10% or ± 1MG/L |
| Operating Temperature | 0 ~ 40 °C |
| Working Pressure | < 0.1 mpa |
| The Ph Range Of The Medium | 4 ~ 10ph |
| Temperature Compensation | Automatic temperature compensation (PT1000) |
| Power Supply | 12 ~ 24 VDC ± 10% |
| Signal Output | RS-485 bus, Modbus/RTU protocol |
| Contact Material | PVC and POM |
| Installation Mode | Immersion mounting |
| Cable Length | 5 meters, other length can be customized |
| Calibration Mode | Two-point calibration |
| Power Consumption | < 0.05 W |
| Protection Level | IP68 |
Tip:The difference between total nitrogen and ammonia nitrogen
Total nitrogen includes organic nitrogen, organic amines, amino acids, proteins, ammonia nitrogen, etc.
And ammonia nitrogen only includes NH4+ and NH3.
