Place of Origin:
CHINA
Hàng hiệu:
kacise
Chứng nhận:
CE
Model Number:
KFDO601

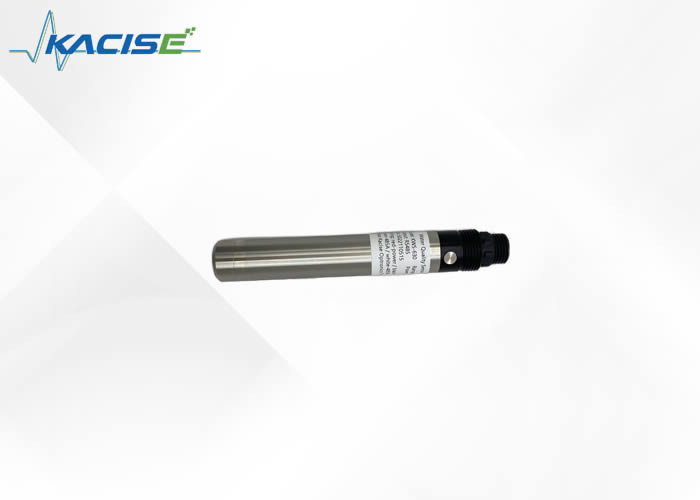

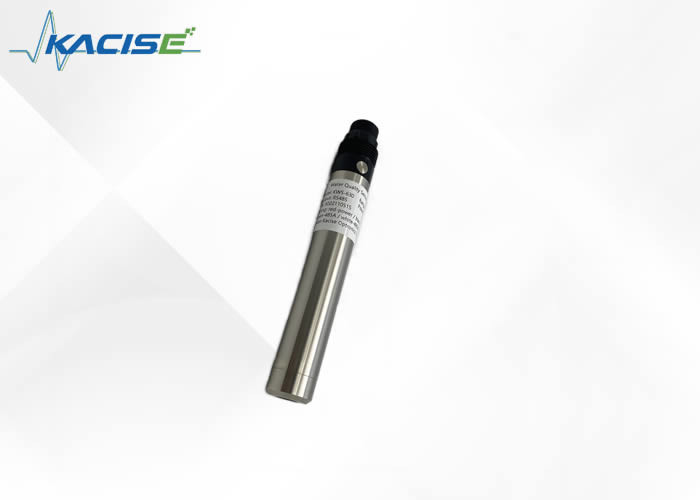

KFDO601 Online Fluorescence Dissolved Oxygen No Electrolyte Is Required And Will Not Be Polarized No Oxygen Consumption
1.Dissolved oxygen measurement applications
2.the Difference of Polarographic probe and optical probe
| Polarographic probe | optical probe | |
| maintence | Replace the electrolyte approximately every 2 months and polish the cathode as needed to clean the probe | Clean probe, cover and optical window as needed |
| storage | Stored in a wet calibration sleeve;For long-term storage, remove the film cover and store in a dry place | Store in a wet calibration sleeve |
| film | Replace approximately every 2 months as needed | no |
| solution | Replace approximately every 2 months as needed | no |
| Need to preheat | (30-60 minutes) if only connected to the meter | |
| stir | need | unnecessary |
| disturb | Ozone, sulfides, sulfur dioxide, nitrous oxide and carbon monoxide |
3.Feature
4.Technical Specifications
| Model | KFDO601 |
| Measuring principle | Fluorescence method |
| Range ability | 0~20mg/L (0 ≤ 200% saturation) |
| Resolution ratio | 0.01mg/L,0.1℃ |
| Precision | ±2%F.S.,±0.5℃ |
| Temperature compensation | Automatic temperature compensation(Pt1000) |
| Output mode | RS-485 bus, Modbus-RTU protocol |
| Working conditions | 0～45℃,<0.2MPa |
| Storage temperature | -5～65℃ |
| Installation mode | Immersion mounting |
| Cable length | 5 meters, other lengths customizable |
| Power dissipation | ＜0.3W@12V |
| Source | 12～24VDC ±10% |
| levels of protection | IP68 |
| Calibration | Two-point calibration |
| Fluorescent cap life | Guaranteed use for one year (under normal use) |
| Sensor shell material | POM and 316L stainless steel |
Note:The sensor connector is m16-5 core waterproof connector male.
The sensor shall be installed fixedly below the liquid level. The installation and use shall avoid collision or scraping against the surface of the fluorescent film head. The fluorescent film head part shall avoid being attached by the bottom sediment.Remove the rubber cover when use.
