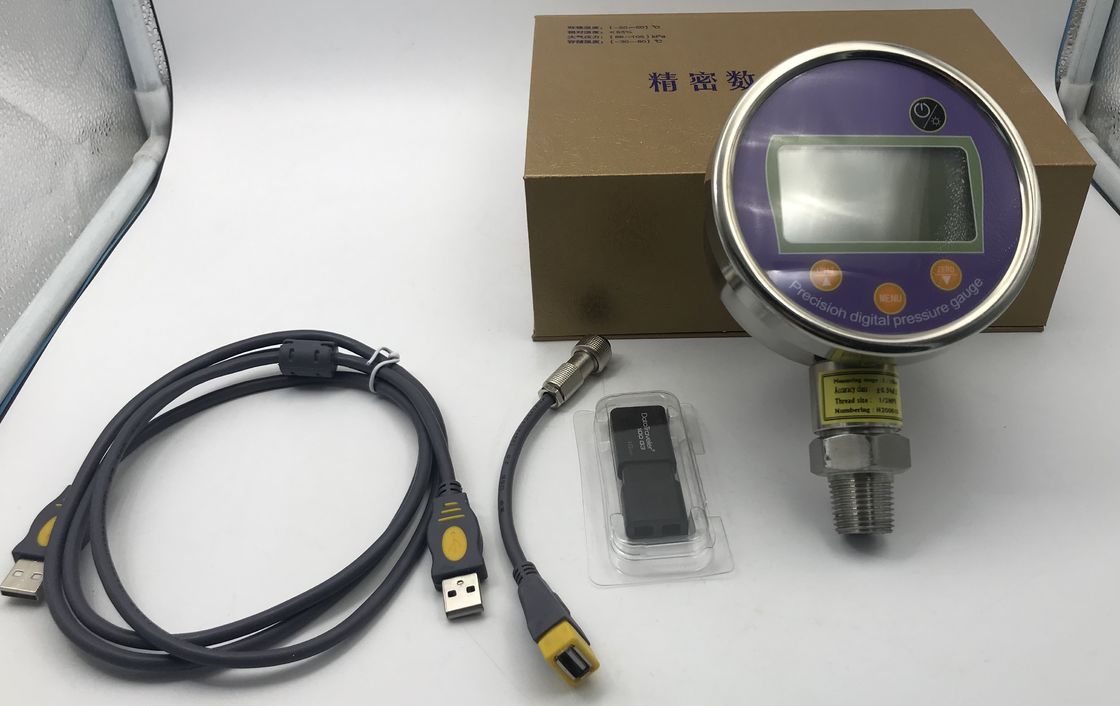

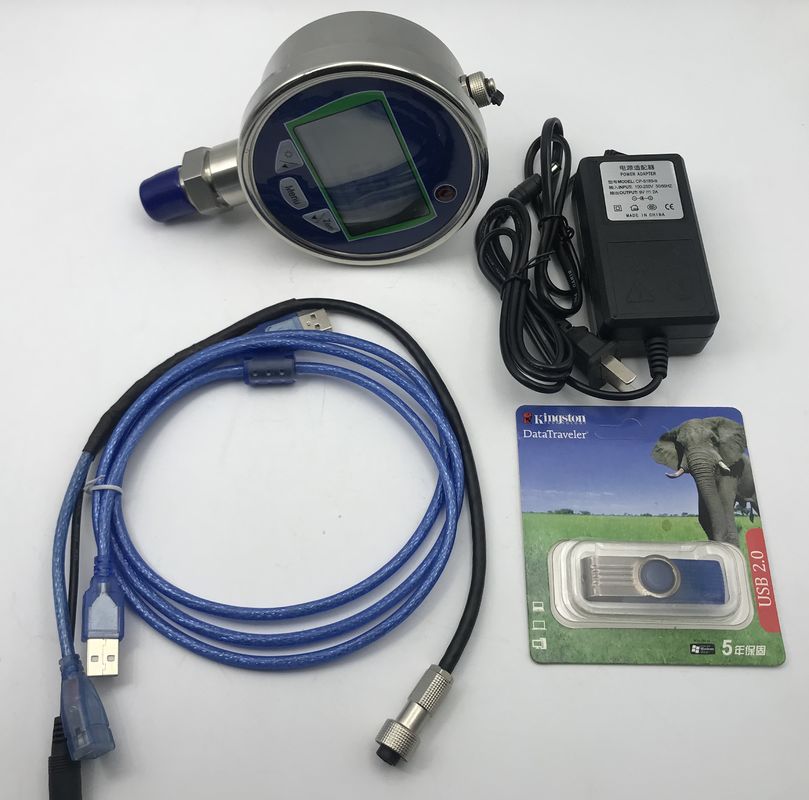

KPG201 Digital Pressure Gauge with Data Logger
Introduction
KPG201 Battery Operated Digital Pressure Gauge with Data Logger is a digital gauge with local display and data storage and communication function together. 10 thousand data storage capacity, USB communication and other bundled software which has functions of data acquisition, analyze,report and graph. Humanized interface design and efficient data processing ability. Six figures display on big LCD screen, very striking, which is the essentials of experimental data acquisition
Feature
0.025 ~ 7200 seconds per time acquisition speed
4.1V rechargeable battery, not need to change battery
11000 datas storage capacity, easy to carry and collect data
Magnetic induction button design
Pressure percentage bar charts shows
Signal isolation technique, anti-electromagnetic interference and RF technique
Zero stable technology, automatic temperature compensation technologyn
Application
Oil and gas pressure data collection, storage and analysis
Urban water network, heat supply network and gas network pressure data collection, storage and analysis
Lab pressure test and analyze
Verify pressure (differential pressure) transmitter, precision pressure gauge, general pressure gauge
Measuring corollary software of pressure monitor and other pressure instruments,
Accuracy grade can arrive 0.05, which can meet high precision pressure acquisition
Can work well in corrosive, impact and versatility environment
Meet the lab and industrial field high precision pressure acquisition requirement
Item | Spec. |
Pressure range | -100kpa~250pa~5kpa~250Mpa |
Accuracy | 0.5%, 0.4%, 0.2%, 0.1%, 0.05%, 0.02% |
Display | 5-digit dynamic display + percentage indicator |
Pressure unit | Pa, kPa, MPa, psi, bar, mbar, mmH2O, mmHg, inH2O, inHg, kgf/cm2 |
Overload pressure | 150% FS |
Destruction pressure | 200% FS |
Power supply | 4.2V rechargeable lithium battery |
Temperature | -20 ℃ ~ 60 ℃ |
Humidity | ≤ 85% RH |
Calibration environment | 20 ℃ ± 2 ℃ |
Explosion-proof level | ExiaIICT4 optional |
IP Grade | IP66 |
Data record limit | 11000 |
Process connection | M20 × 1.5 (male), special thread customizable |
Dimensions | height 170mm, width 110mm, thickness 50mm |
