KLD2602 26GHz Radar Level Gauge Flange Mounting With Purge Function For Strong Dust Environment

KLD2602 26GHz Radar Level Gauge Flange Mounting With Purge Function For Strong Dust Environment

water turbidity sensor

oil in water sensor

Place of Origin:

china

Hàng hiệu:

kacise

Chứng nhận:

ce

Model Number:

KBU601

Liên hệ với chúng tôi
Yêu cầu Đặt giá
Chi tiết sản phẩm
Range:::
20m
Signal Ouput::
4-20mA/Hart RS485/Modbus
Frequency::
26GHz
Protection::
IP67
Process Connection::
Flange
Accuracy::
±5mm
Làm nổi bật:

water turbidity sensor

,

oil in water sensor

Điều khoản thanh toán và vận chuyển
Minimum Order Quantity
0-100
Giá bán
có thể đàm phán
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work day
Payment Terms
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100
Sản phẩm liên quan
Liên hệ với chúng tôi
86--17719566736
Liên hệ ngay bây giờ
Mô tả sản phẩm

KLD2602 26GHz Flange Mounting Radar Level Gauge With Purge Function For Strong Dust Environment



Product Overview



This series of radar level meter adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 80 meters. Antenna is optimized further processing, the new fast microprocessors have higher speed and efficiency can be done signal analysis, the instrumentation can be used for reactor, solid silo and very complex measurement environment.



Principle

Radar level transmitter antenna microwave pulse is narrow, the downward transmission antenna. Microwave exposure to the medium surface is reflected back again by the antenna system receives, sends the signal to the electronic circuit automatically converted into level signals (because the microwave propagation speed, electromagnetic wave to reach the target and the reflected back to the receiver this time is almost instantaneous).

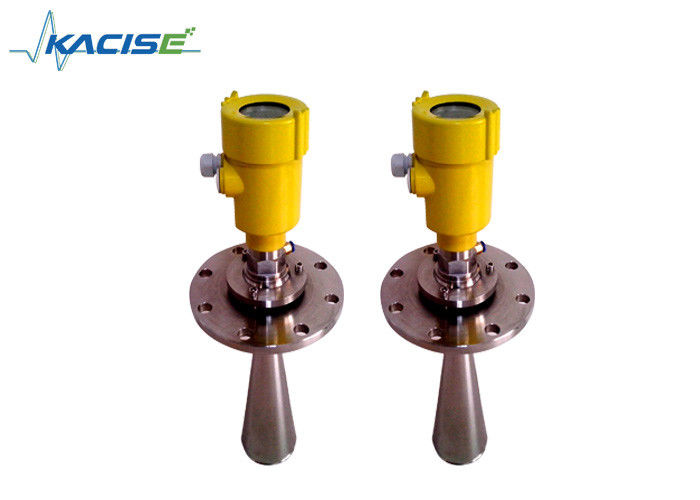

KLD2602 26GHz Radar Level Gauge Flange Mounting With Purge Function For Strong Dust Environment 0

  • The characteristics of 26G radar level meter:

1) Small antenna size, easy to install; Non-contact radar, no wear, no pollution.

2) Almost no corrosion, bubble effect; almost not affected by water vapor in the atmosphere, the temperature and pressure changes.

3) Serious dust environment on the high level meter work has little effect.

4) A shorter wavelength, the reflection of solid surface inclination is better.

5) Beam angle is small, the energy is concentrated, can enhance the ability of echo and to avoid interference.

6) The measuring range is smaller, for a measurement will yield good results.

7) High signal-to-noise ratio, the level fluctuation state can obtain better performance.

8) High frequency, measurement of solid and low dielectric constant of the best choice.

Parameters



Suitable for Medium Strongly corrosive liquid
Application HCl, H2SO4, HF and strong base in tank, etc.
Measuring Range 10m
Process Connection Flange, Min. flange is DN80
Medium Temperature -40 ~ 120
Process Pressure -0.1 ~ 0.1MPa
Accuracy ±5~10mm
Protection Grade IP67
Frequency Range 26GHz
Explosion-proof Grade Exia IICT6 Gb
The signal Output 4 ~ 20mA/HART(2 wire/4wire),RS485/Modbus is optional

The Electrical Connection

The power supply voltage:

(4~20)mA/HART (Two wire system) The power supply and the output current signal sharing a two core shield cable. The supply voltage range see technical data. For intrinsically safe type must be a safety barrier between the power supply and the instrument.

(4~20)mA/HART(Four wire system) Separate power supply and the current signal, respectively using a two-core shielded cable. The supply voltage range see technical data.

RS485 / Modbus Power supply and Modbus signal line separate drespectively using a two-core shielded cable, the power supply voltage range see technical data.

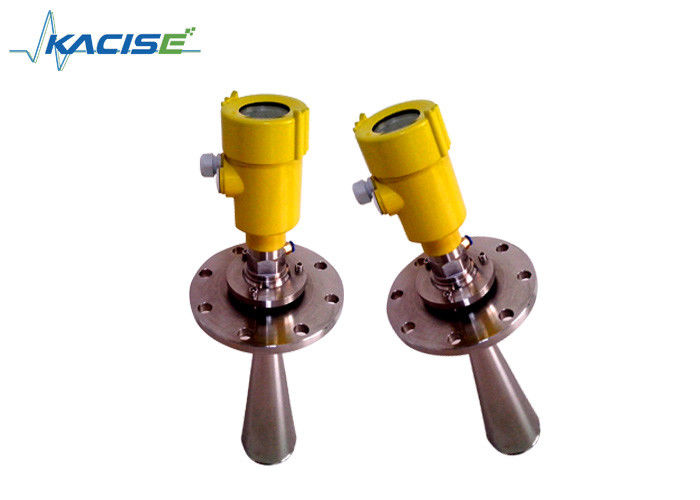

KLD2602 26GHz Radar Level Gauge Flange Mounting With Purge Function For Strong Dust Environment 1

Applications and Cases:

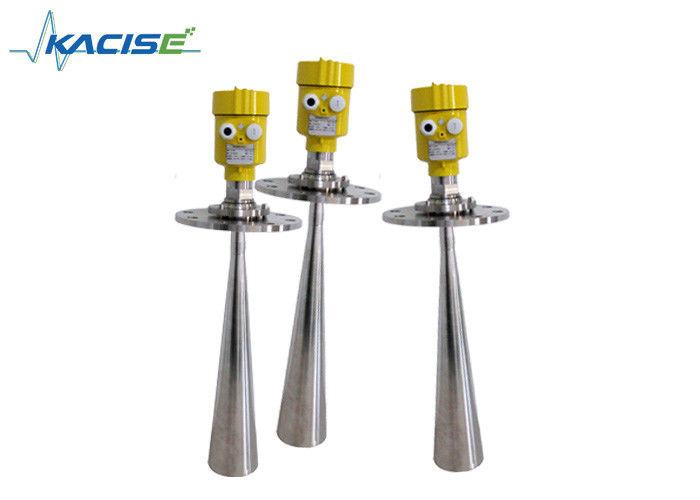

KLD2602 26GHz Radar Level Gauge Flange Mounting With Purge Function For Strong Dust Environment 2
