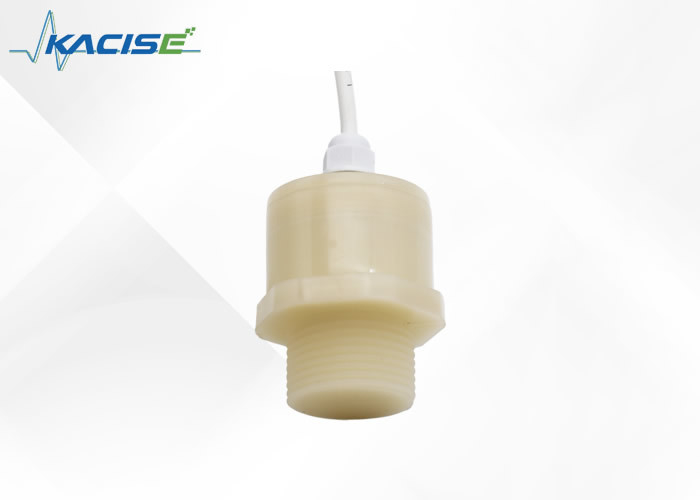

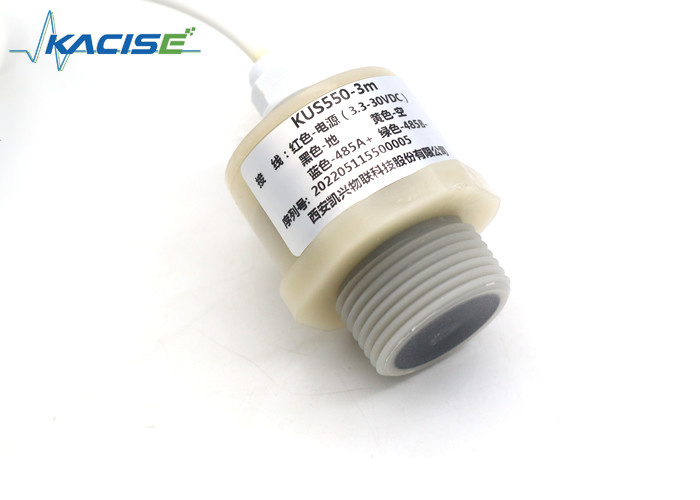

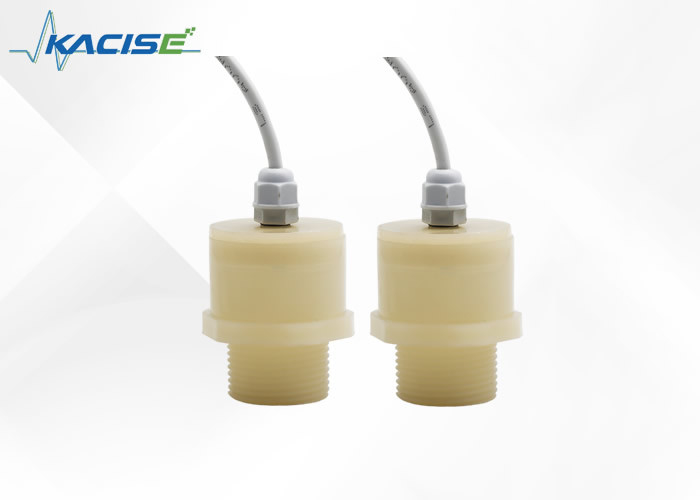

4G Wireless Ultrasonic liquid Level Sensor 3 Meters Range Digital Output 24VDC Operating Voltage
1. Product Description
This sensor provides very short to long-range detection and ranging, in a compact, robust PVC housing,designed to meet IP68.
2. Product features
3. Parameter
General specifications
| Model: KUS550 | |
| Measuring range |
0.25m~3m (5m customizable)KUS550A 0.15m-0.6m(1m customizable)KUS550B； |
| Blind spot | The dead zone of KUS550A is 0 ... 250 mm (within 250mm is unstable working zone, it is not recommended to work in this range); the dead zone of KUS550B is 0-150mm; |
| Supply voltage | 3.3 ... 30 VDC, ripple 10 %SS |
|
Working current |
≤ 45 mA (fastest measurement speed), typical power consumption ≤ 10 mA; |
|
Output signal |
0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output. |
| Measurement accuracy | ≤1 %F.S. |
| Temperature compensation | Yes |
| Ranging resolution | 0.1mm； |
Working conditions
| Working temperature | -40…85℃(233...358K) |
| Storage temperature | -40…85℃(233...358K) |
Other instructions
| Electrical connection | 5-core cable (analog output), 6-core cable (switch output)； |
| Protection class | IP68 |
| Shell material | PVC /PVDF/PTFE/ABS |
4. Dimensions
5. Wiring
6. Application
7.Company Information
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
