Place of Origin:
China (Mainland)
Hàng hiệu:
Kacise
Chứng nhận:
certificate of explosion-proof, CE
Model Number:
KBU601
1. Applications

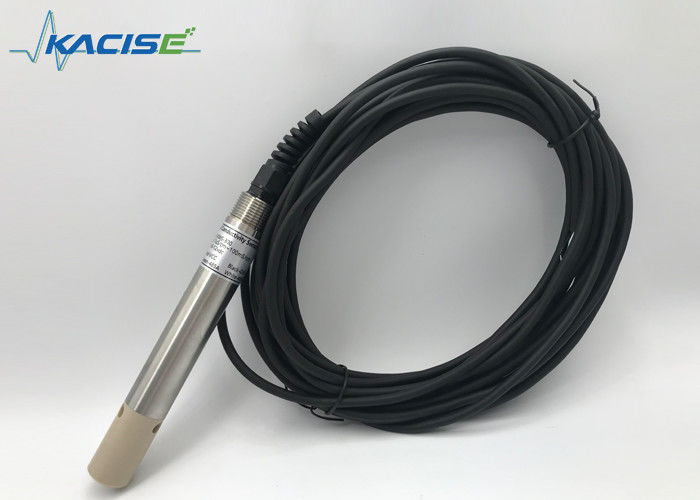

Kacise digital conductivity sensor, has the advantages of wide measuring range, automatic switching measuring range, built-in temperature sensor, real-time temperature compensation. It has excellent anti-pollution ability. It can make long time monitoring even in the harsh environment. The sensor can realize networking and system integration without controller by RS485 output.
2. Feature
3.Technical Specifications
| Range | 0～20μS/cm(0.01cm-1),0～200μS/cm(0.1cm-1),0～5000μS/cm(1.0cm-1),0～600mS/cm or 0～100PSU (Inductance electrode) Range can be set by customer. |
| Accurate | ±1.5%F.S. |
| Resolution |
0.01μS/cm(0.01cm-1),0.1μS/cm(0.1cm-1), 1μS/cm (1.0cm-1),1mS/cm or 0.1PSU |
| Protection level | IP68 |
| Max. Operation pressure | <0.6MPa |
| temperature range | 0 ~ 65℃ |
| Output | Support RS-485, MODBUS protocol |
| Power supply | DC 12~24V±10% |
| Probe cable length | 5 m, customized 10 m, 15 m and 30 m cable |
4. Application
The goods can be widely used in drinking water, surface water, various water supplies and industrial water treatment.
