Place of Origin:
china
Hàng hiệu:
Kacise
Chứng nhận:
ce
Model Number:
Kws-400

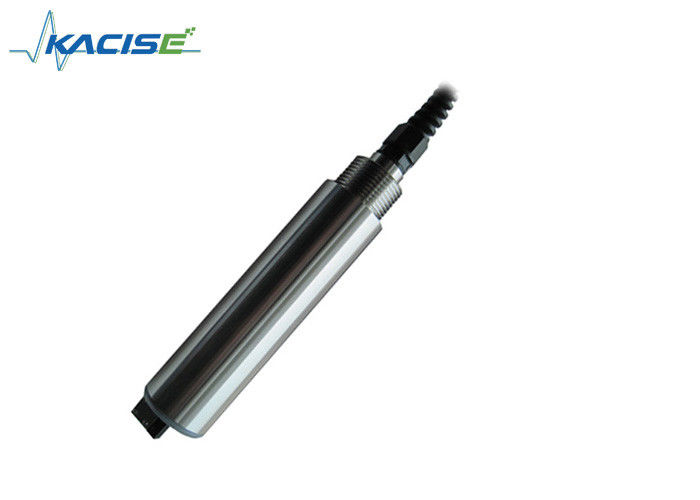

Online Fiber optic chlorophyll sensor
1. Applications
Chlorophyll and its metallic form are essential organic compounds located in chloroplasts, playing a critical role in capturing light energy and facilitating vital biological processes. Given their promising applications, the electrochemical properties of chlorophyll and metallic chlorophyll have garnered significant attention and research focus.
The fiber chlorophyll sensor operates based on the fluorescence principle. It employs a high-energy LED light source to illuminate water, taking into account the spectral absorption characteristics of chlorophyll a. This illumination stimulates chlorophyll a in the water to emit fluorescence at a specific wavelength, enabling the measurement of chlorophyll a concentration. The sensor's fiber structure exhibits outstanding repeatability and stability, remaining resilient against ambient light interference. Additionally, the integration of an automatic cleaning brush helps eliminate air bubbles, minimizing the impact of contamination on measurements. This design facilitates prolonged online use, extends maintenance intervals, and enhances overall measurement stability.
2. Introduction
The Kacise chlorophyll sensor, developed with advanced fluorescent sensing technology, stands out with its superior features, including high sensitivity, high linearity, and low noise in comparison to similar international products. Notably, the KWS-400B online self-cleaning chlorophyll sensor is uniquely equipped with an automatic cleaning brush, streamlining its design for increased efficiency.
The integrated structure of the sensor, combined with efficient power management, ensures stable data performance. This design eliminates the need for frequent maintenance and calibration, enabling long-term online use. The Kacise chlorophyll sensor is versatile, finding applications in monitoring, investigating, and researching algae and phytoplankton in various environments, including rivers, lakes, ponds, marine surveys, aquaculture, and drinking water sources.
3. Feature
Digital sensor, RS-485 output, support MODBUS
With automatic cleaning brush to prevent contamination and eliminate air bubbles
Direct measurement is easier than traditional analysis methods
Continuous online monitoring and real-time control of water quality
Integrated sensor field application example
4.Technical Specifications
Item | Fiber Chlorophyll Sensor | Self-Cleaning Chlorophyll Sensor |
Model | KWS-400A | KWS-400B |
Principle | fluorescence principle | |
Measuring Range | 0~400ug/L or 0~100RFU | |
Resolution | 0.01 µg/L | |
Protection Rate | IP68 | |
Max. pressure | 6 bar | 3 bar |
Temperature Range | 0 ~ 50℃ | |
Output | Support RS-485, MODBUS protocol | |
Power Supply | DC 9~24V, 1A | |
Working current | <50mA (when not brush); <200mA (when brush) | |
Installation | Input type, circulation type | Input type |
Size | Φ22mm*175.5mm | Φ36mm*198.2mm |
Cable Length | 10 m, customizable | |
Self-Cleaning System | NO | Yes |
Calibration | 0-point, one-point or two-point calibration | |
Casing Material | Stainless or Titanium |
KWS-400A KWS-400B
