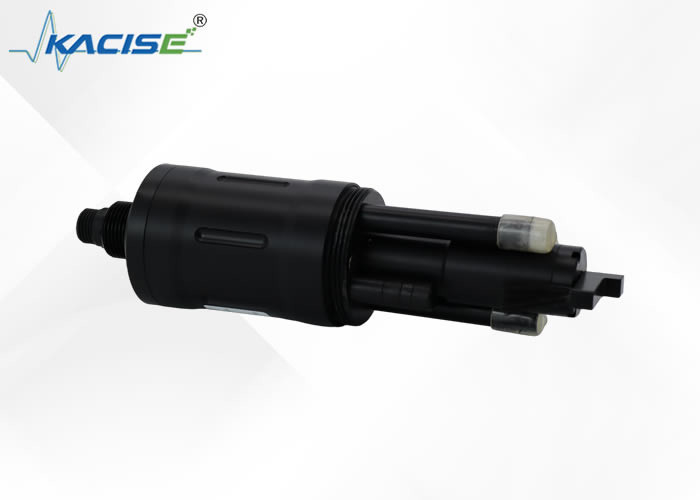

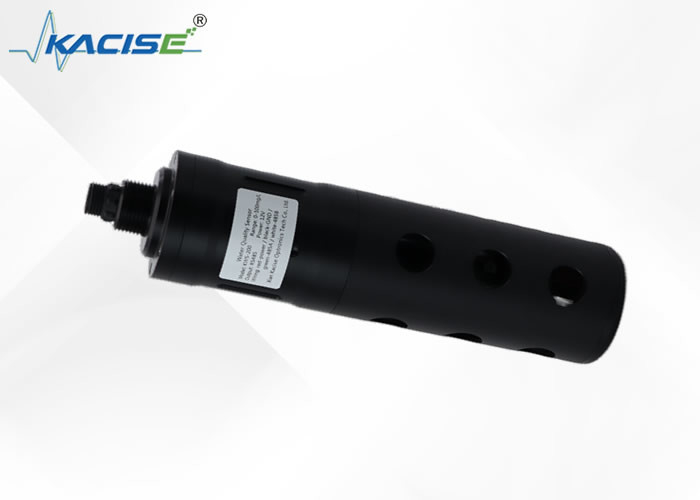

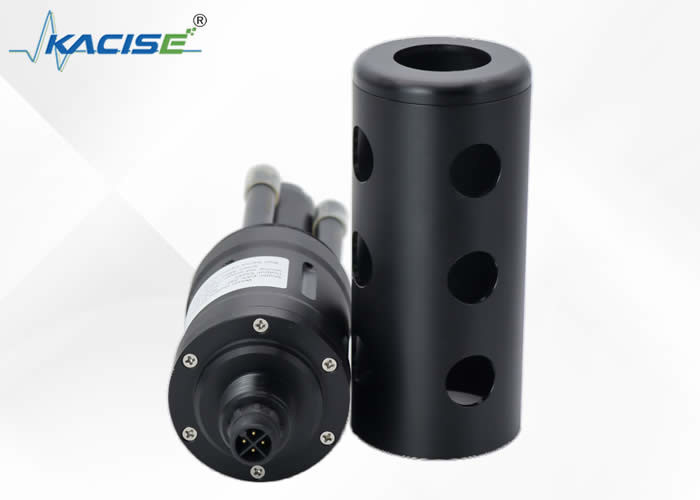

Online NH4-N ammonia nitrogen sensor
1. Applications
Kacise introduces an online ammonia nitrogen sensor that requires no reagents, is green and non-polluting, and can be monitored online in real time. Integrated ammonium, potassium (optional), pH and reference electrodes automatically compensate for potassium (optional), pH and temperature in water. It can be directly put into installation, which is more economical, environmentally friendly and convenient than traditional ammonia nitrogen analyzer. The sensor has a self-cleaning brush that prevents microbial adhesion, resulting in longer maintenance intervals and excellent reliability. It adopts RS485 output and supports Modbus for easy integration.
2. Feature
Digital sensor, RS-485 output, support MODBUS
No reagents, no pollution, more economical and environmentally friendly
Automatically compensates for pH and temperature in water
Self-cleaning brush to prevent microbial adhesion and longer maintenance intervals
3.Technical Specifications
| product | parameter | |
| Measuring range | 0-1000mg/L NH4-N | |
| Response time | 10 sec | |
| accurate | 5% | |
| pH range | 4-10 | |
| pH accurate | ±0.1 | |
| Protection level | IP68 | |
| Deepest depth | Underwater 60 meters | underwater 10 meters |
| temperature range | 0 ~ 50℃ | |
| Output | Support RS-485, MODBUS protocol | |
| Power supply | DC 5~12V, current <50mA | |
| size | Φ26*177.5 mm | |
| Probe cable length | 10 m, customizable 5 m, 15 m and 30 m cable | |
| product material | POM | |
4. Product Size
Online ammonia nitrogen sensor
