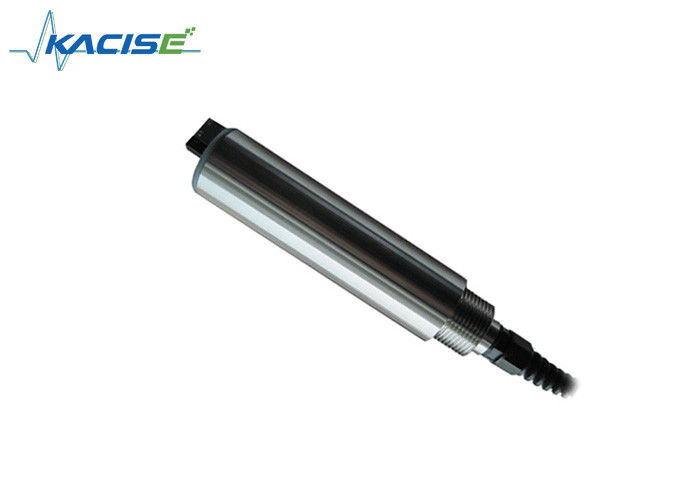

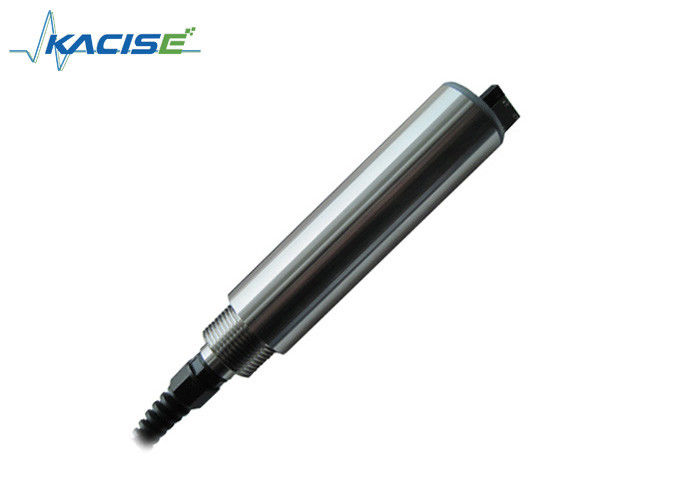

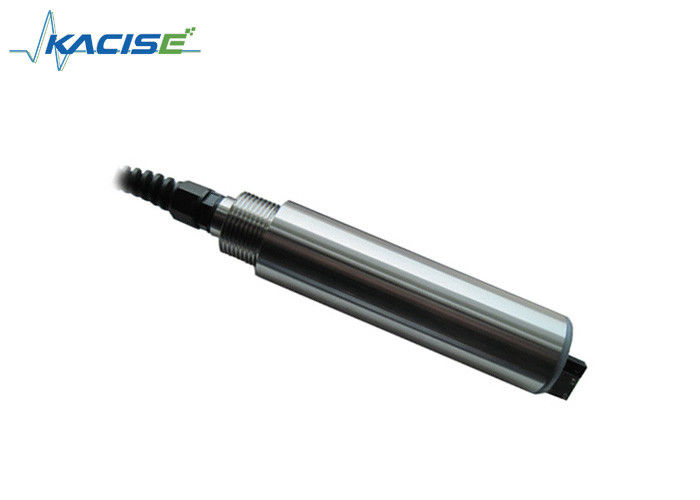

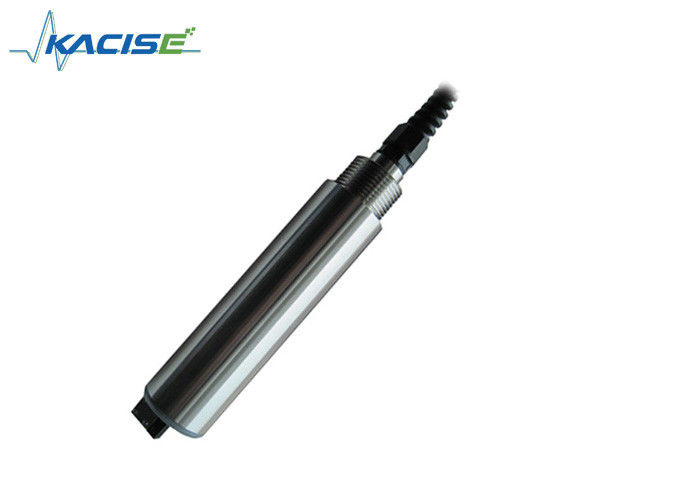

TSS Turbidity / Sludge Concentration Online Fluorescent Water Quality Sensor
1. Feature
TSS sc Sensor, RS-485 output, support MODBUS. Optional automatic cleaning brush to eliminate the impact of oil on the measurement, this product uses a unique optical and electronic filtering technology to eliminate the impact of ambient light on the measurement, not affected by suspended solids.
2. Application
The oil sensor in the water uses the principle of ultraviolet fluorescence analysis and has high sensitivity for detecting soluble and emulsifiable oil. were able
Use a self-cleaning brush to effectively eliminate the effect of oil on the measurement. Suitable for oil field monitoring, industrial circulating water, condensed water, wastewater treatment,
Various water quality monitoring programs, such as surface water stations.
3.Technical Specifications
| product | Fiber turbidity sensor | Self-cleaning turbidity sensor |
| principle | 90° scattered light | |
| Measuring range | 0-1000NTU | |
| Resolution | 0.1NTU | |
| accurate | 0.3NTU | |
| Protection level | IP68 | |
| Deepest depth | Underwater 60 meters | underwater 10 meters |
| temperature range | 0 ~ 50℃ | |
| Output | Support RS-485, MODBUS protocol | |
| Power supply | DC 5~12V, current <50mA | DC 5~12V, current <50mA (when not cleaned) |
| size | Φ22mm*120mm | Φ33mm*156mm |
| Probe cable length | 10 m, customizable 5 m, 15 m and 30 m cable | |
| product material | POM | |
| Self-cleaning system | exist | NO |
| Optical window | optical fiber | |
