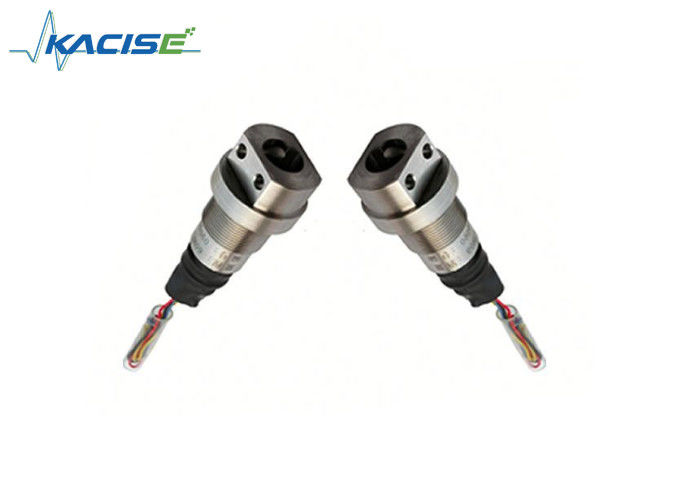

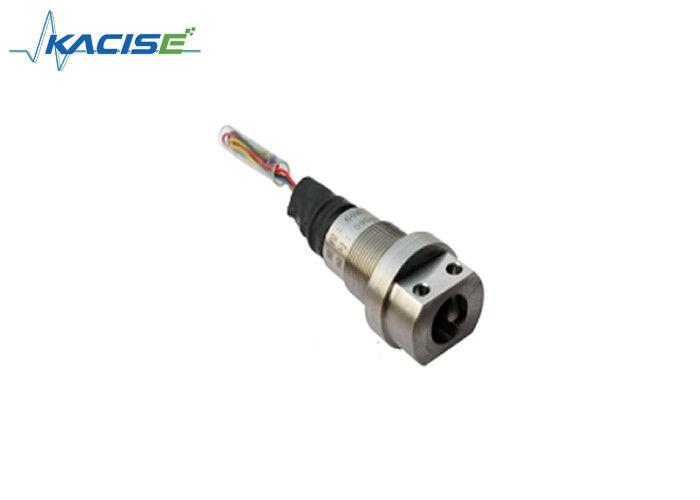

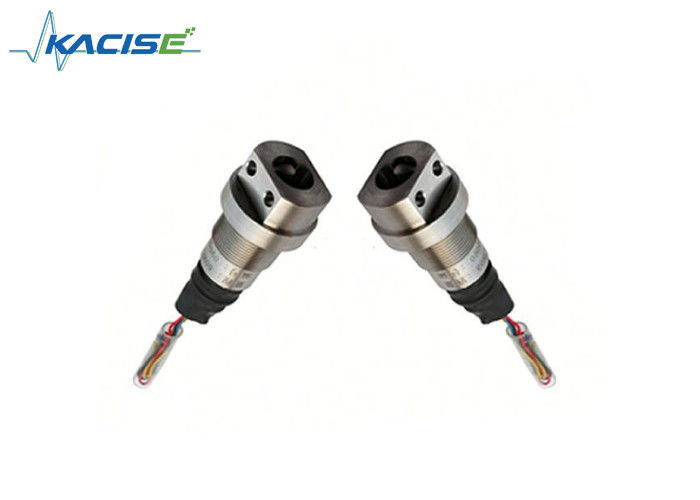

Operation Temoratureof -40°C~85°CTriclamp Sanitary Connection Pressure Transmitter with Diffusion Cilicon Core Body

Operation Temoratureof -40°C~85°CTriclamp Sanitary Connection Pressure Transmitter with Diffusion Cilicon Core Body

high accuracy pressure sensor

explosion proof pressure transmitter

Place of Origin:

China

Hàng hiệu:

Kacise

Chứng nhận:

Intrinsically safe mode E, Isolation explosion, CE

Model Number:

GXPS360

Liên hệ với chúng tôi
Yêu cầu Đặt giá
Chi tiết sản phẩm
Pressure range:
0~0.2MPa......200MPa
Accuracy:
±0.1%F.S, ±0.5%F.S
Operating temperature:
-40°C~85°C
Electrical performance:
2 wire system 3 wire system
Output signal:
4~20mA 0~5V 0~10V
Power supply:
10~30Vdc 10~30Vdc 12~30Vdc
Làm nổi bật:

high accuracy pressure sensor

,

explosion proof pressure transmitter

Điều khoản thanh toán và vận chuyển
Minimum Order Quantity
1 piece
Giá bán
có thể đàm phán
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
2000 pieces per week
Mô tả sản phẩm

GXPS360 Operation Temoratureof  -40°C~85°CTriclamp Sanitary Connection Pressure Transmitter with Diffusion Cilicon Core Body



Application

  • Mine hydraulic column
  • Refrigerating machine
  • Hydraulic control
  • Petrochemical Technology
  • Pressure instrument
  • Automatic detection system
  • Energy and water treatment
  • Well real-time management

Feature

  • Accuracy: 0.25,0.5%F.S
  • 0~5Vdc Output
  • Diffusion silicon core body
  • Micropower integrated circuit
  • Various pressure range and output signal
  • Various connector and pressure port
  • Non-polarity two wire current output
  • DC & AC in two voltage output
  • Intrinsically safe mode, isolation explosion, CE

Introduction



GX-PS360 pressure transmitter is a series designed specifically for the detection of the mine tunnel hydraulic support, stability, high reliability, high accuracy, ingenious structure for quick disassembly.

The product uses 1Cr18Ni9Ti stainless steel structure, The pressure core selection of well-known international brands, dedicated circuit design flameproof, can facilitate their zero and full scale calibration, certified intrinsically safe, explosion-proof certification and CE certification

Operating power is 8Vdc/ac (AC and DC).

The system composed of a set of every three constitute a test from the station, the slave three test pressure signal is converted into a digital signal transmission to the terminus.



Electronic interface and signals definition



Operation Temoratureof  -40°C~85°CTriclamp Sanitary Connection Pressure Transmitter with Diffusion Cilicon Core Body 0



Parameter



Spec. Value
Pressure range 0~0.2MPa......200MPa
Load pressure 2times nominal value pressure (2X)
Rupture pressure 4times nominal value pressure (4X)
Accuracy ±0.1%F.S, ±0.5%F.S
Stability Typical value 0.25%F.S, Max. value: 0.4%F.S
Operating temperature -40°C~85°C
Compensation temperature -10°C~70°C
Medium compatibility All Caustic Medium Compatible with 1Cr18Ni9Ti
Electrical performance 2 wire system 3 wire system
Output signal 4~20mA 0~5V 0~10V
Power supply 10~30Vdc 10~30Vdc 12~30Vdc
Load pressure (U-5)/0.02(Ω) >100kΩ
Insulation >100M Ω@50V
Electric strength 500V@60 second
Vibration/Impact 10g/5~2000Hz, axes X/Y/Z20g sine 11ms
Pressure durable 2×106pressure circle @25°C
Electrical connection Hirsmann , air plugs, fixed cable, water proof cable
Pressure port KJ10, G1/2, NPT1/2, M20×1.5,
Pressure type G, S Response time: 10ms
Certificate Intrinsically safe mode E, Isolation explosion, CE
EMI/EMC EMI: EN50081-1/-2; EMC: EN50082-2
