Place of Origin:
China (Mainland)
Hàng hiệu:
Kacise
Model Number:
KS 18 series

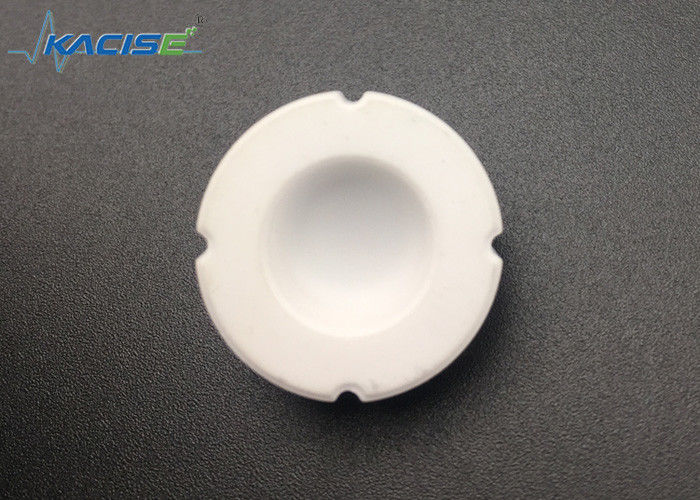

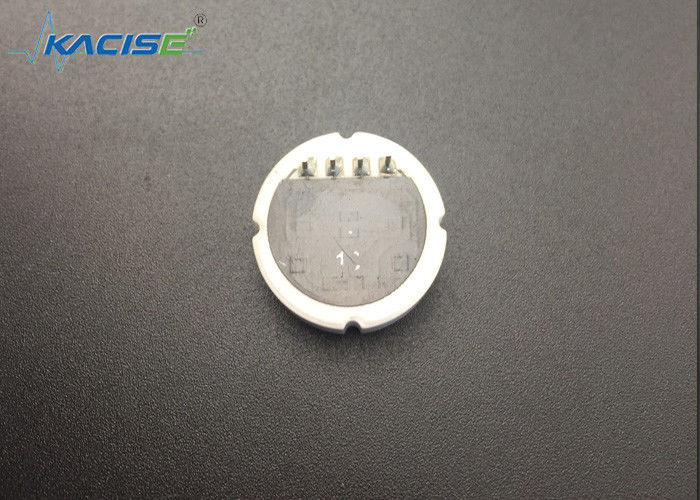

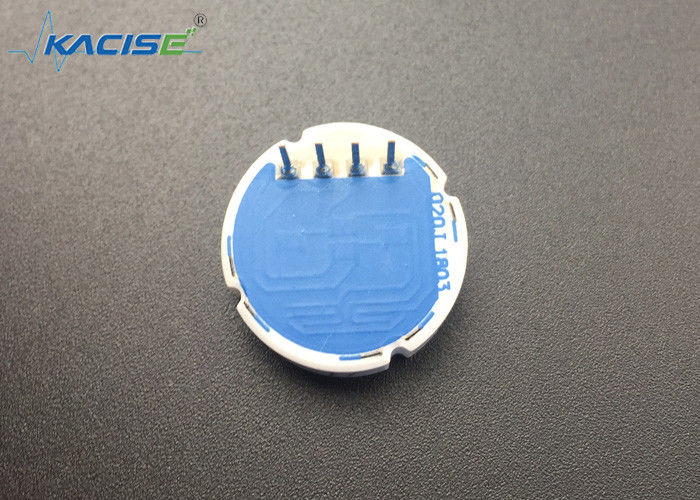

4 ... 30 VDC ceramic water pressure sensor transducer Element
1. Product Description
Kacise monolithic pressure sensors are manufactured in large series and are in use in a range of applications in machinery production, the automotive industry, and ventilation and climate control equipment. The easy installation and calibration of the sensors simplifies the customer's production processes. The KS18 SERIES features a compact design, high media compatibility and excellent long-term stability.
2. Details
Techinical parameters
| PRESSURE RANGE | LONG THERM STABILITY* | LINEARITY / HYSTERESIS | BURST PRESSURE | OVER-PRESSURE | VACUUM CAPABILITY |
| (BAR) | (TYP./MAX.) (% FS) ** | (BAR) | (BAR) *** | (BAR) | |
| 2 (1.6 ... 2.5) | ± 0.15 | ± 0.15 / 0.4 | ≥ 5 | ≤ 3 | −0.6 |
| 5 (4 ... 6) | ± 0.15 | ± 0.15 / 0.4 | ≥1 5 | ≤ 7.5 | −0.8 |
| 10 | ± 0.1 | ± 0.15 / 0.4 | ≥3 5 | ≤ 15 | −1 |
| 20 (16 ... 25) | ± 0.1 | ± 0.15 / 0.4 | ≥ 60 | ≤ 30 | −1 |
| 50 (40 ... 60) | ± 0.1 | ± 0.15 / 0.4 | ≥ 150 | ≤ 75 | −1 |
| 100 | ± 0.1 | ± 0.2 / 0.5 | ≥ 250 | ≤ 150 | −1 |
| 200 (160 ... 250) | ± 0.1 | ± 0.2 / 0.5 | ≥ 450 | ≤ 300 | −1 |
| 400 | ± 0.15 | ± 0.3 / 0.6 | ≥ 700 | ≤ 550 | −1 |
| 600 | ± 0.15 | ± 0.3 / 0.6 | ≥ 900 | ≤ 720 | −1 |
3. Feature
● 1000 hours @ 150 °C | 50 million pressure cycles @ 125 °C, 10 – 90 % FS @ 2.5 Hz | 3 thermal shocks +130 °C /−20 °C 3 K/sec. | 50 thermal cycles +150 °C /−40 °C, 2 K/min.
● For indipendent linearity 10 points are measured and compared to an ideal straight line.For all measurements, DUT’s are mounted in kacise standard Housing.
● Over-Pressure indicates the maximum (short time < 1 s) operating pressure within no irreversible damage to the printed circuit are expected.
3. Typical Application
