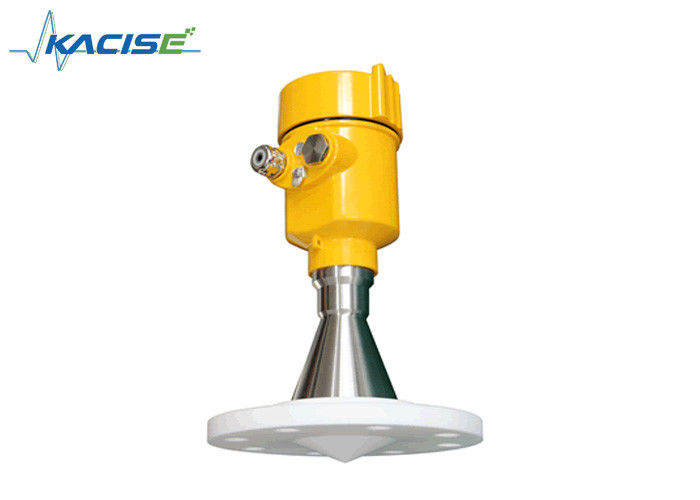

KLD260 Series Radar Level Meter , Radar Level Sensor 26Ghz High Frequency

KLD260 Series Radar Level Meter , Radar Level Sensor 26Ghz High Frequency

ultrasonic fluid level sensor

ultrasonic level transmitter

Nguồn gốc:

Trung Quốc

Hàng hiệu:

KACISE

Chứng nhận:

CE

Model Number:

KLD260

Liên hệ với chúng tôi
Yêu cầu Đặt giá
Chi tiết sản phẩm
Application:
corrosive liquid /solid / powder
Measuring range:
10m, 20m, 30m, 70m, 80m
Process Connection:
Thread or Flange
Frequency Range:
26Ghz
Temperature:
-40~400℃
Signal output:
4...20mA/HART/RS485 Modbus
Làm nổi bật:

ultrasonic fluid level sensor

,

ultrasonic level transmitter

Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu
1pcs
Giá bán
US $600-1,100 / Pieces
chi tiết đóng gói
Mỗi đơn vị có hộp riêng và tất cả các hộp được đóng gói theo tiêu chuẩn hoặc theo yêu cầu của khách
Thời gian giao hàng
5-8 ngày làm việc
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Khả năng cung cấp
1000 mảnh / mảnh mỗi tuần có thể thương lượng
Mô tả sản phẩm
KLD260 series 26Ghz  Radar Level Meter


Introduction



KLD260 series 26Ghz Radar Level Meter is suitable for liquid, paste, granule and block material level and non-contact measurement, suitable for changes in temperature,pressure big; there is an inert gas and volatile.The measurement method of microwave pulse, can work normally in the industrial frequency band range. The beam energy is low, can be installed on all kinds of metal, non-metallic container or pipe, no harm to human body and environment



Operation principle



Radar level sensor antenna of radar level gauge transmits the narrow microwave pulses and downward transmission by the antenna. Microwave is reflected back and received by the antenna system again, when the microwave exposure to the measured medium surface, and transmit the signal to the electronic circuit parts automatically converted into level signal



Features of 26G Radar Level Sensor


 1). Antenna size is small, easy to install;
 2). Non-contact radar, no wear, no pollution.
 3). Almost free from corrosion, foam impact;
 4). It is almost free from water vapor in the atmosphere, temperature and pressure changes.
 5). Severe dust working environment has little effect on high-frequency level meter.
 6). Shorter wave length that has a better reflection on the inclined solid surface.
 7). Small beam angle, energy concentration, enhanced echo capabilities meanwhile beneficial to avoid interferences.
 8). Measuring blind zone is smaller, it will achieve good results for canister’s measuring.
 9). High signal to noise ratio, even in the case of fluctuations can obtain better performance.
10). High frequency, it is the best choice for measurement of solids and low dielectric media



Parameters

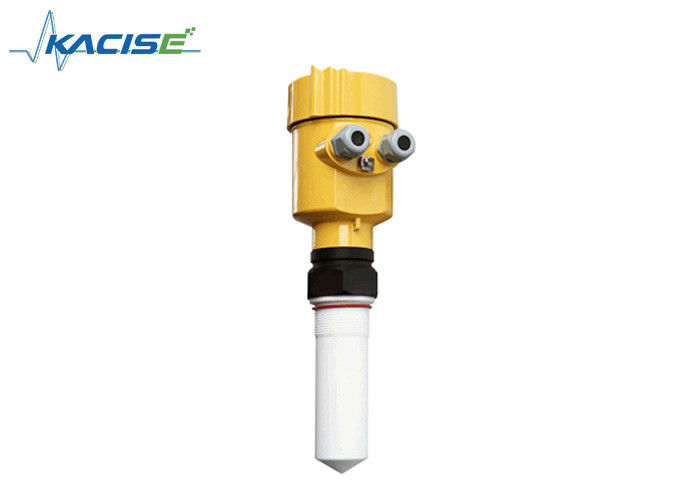

KLD2601

KLD260 Series Radar Level Meter , Radar Level Sensor 26Ghz High Frequency 0



Application: All kinds of corrosive liquid

Measuring Range:10 meters

Process Connection: Thread, Flange

Medium Temperature: -40 ~ 130

Process Pressure: -0.1~0.3 MPa

Accuracy: ± 5mm

Protection Grade: IP67

Frequency Range: 26GHz

Signal Output:4~ 20mA/HART (Two-wire / Four)

RS485/ Modbus

Explosion-proof Grade:Exia C T6 Ga/ Exd ia IIC T6 Gb





KLD2602

KLD260 Series Radar Level Meter , Radar Level Sensor 26Ghz High Frequency 1



KLD260 Series Radar Level Meter , Radar Level Sensor 26Ghz High Frequency 2





KLD2603

KLD260 Series Radar Level Meter , Radar Level Sensor 26Ghz High Frequency 3





KLD260 Series Radar Level Meter , Radar Level Sensor 26Ghz High Frequency 4



KLD2604

KLD260 Series Radar Level Meter , Radar Level Sensor 26Ghz High Frequency 5





KLD260 Series Radar Level Meter , Radar Level Sensor 26Ghz High Frequency 6



KLD2605

KLD260 Series Radar Level Meter , Radar Level Sensor 26Ghz High Frequency 7



KLD260 Series Radar Level Meter , Radar Level Sensor 26Ghz High Frequency 8



KLD2606

KLD260 Series Radar Level Meter , Radar Level Sensor 26Ghz High Frequency 9



Application:Hygienic liquid storage,

Corrosive medium container

Measuring Range:20 meters

Process Connection:Flange

Medium Temperature:-40 ~ 130

Process Pressure:-0.1 ~ 4.0MPa

Accuracy:± 3mm

Protection Grade:IP67

Frequency Range:26GHz

Power Supply: Two-wire (DC24V) / Four-wire (DC24V/AC220V)

Signal Output:4... 20mA/HART (Two-wire / Four) RS485/ Modbus

Explosion-proof Grade:Exia C T6 Ga/ Exd ia IIC T6 Gb
