Name: SC25V pH Sensor with Pt1000 Integration and Temperature Sensor for Accurate pH 7 Measurement
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Cảm biến SC25V
Price: 5,000.00 USD
Availability: InStock

Nhà > các sản phẩm > Cảm biến chất lượng nước >

SC25V pH Sensor with Pt1000 Integration and Temperature Sensor for Accurate pH 7 Measurement

Pt1000 Integration pH Sensor

Pt1000 Temperature Sensor SC25V

Isothermal Point pH 7 Water Quality Sensor

Hàng hiệu:

Yokogawa

Số mô hình:

Cảm biến SC25V

Liên hệ với chúng tôi

Yêu cầu Đặt giá

SC25V pH Sensor with Pt1000 Integration and Temperature Sensor for Accurate pH 7 Measurement

Chi tiết sản phẩm

Vòng nối:

Titan

Cảm biến đo:

Thủy tinh (loại G hoặc L)

O-ring:

Viton (Sao lưu EPDM)

Ngã ba tham chiếu:

PTFE xốp

Điểm đẳng nhiệt::

pH 7 / 3,3M kCl

Làm nổi bật:

Pt1000 Integration pH Sensor

Pt1000 Temperature Sensor SC25V

Isothermal Point pH 7 Water Quality Sensor

Điều khoản thanh toán và vận chuyển

Số lượng đặt hàng tối thiểu

1pcs

chi tiết đóng gói

Mỗi đơn vị có hộp riêng lẻ và tất cả các hộp được đóng gói trong các gói tiêu chuẩn hoặc yêu cầu của

Thời gian giao hàng

5-8 ngày làm việc

Điều khoản thanh toán

L/C, D/A, D/P, T/T, Liên minh phương Tây, Moneygram

Khả năng cung cấp

1000 mảnh/mảnh mỗi tuần có thể thương lượng

Sản phẩm liên quan

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Nhận được giá tốt nhất

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Nhận được giá tốt nhất

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Nhận được giá tốt nhất

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Nhận được giá tốt nhất

Liên hệ với chúng tôi

86--17719566736

Liên hệ ngay bây giờ

Mô tả sản phẩm

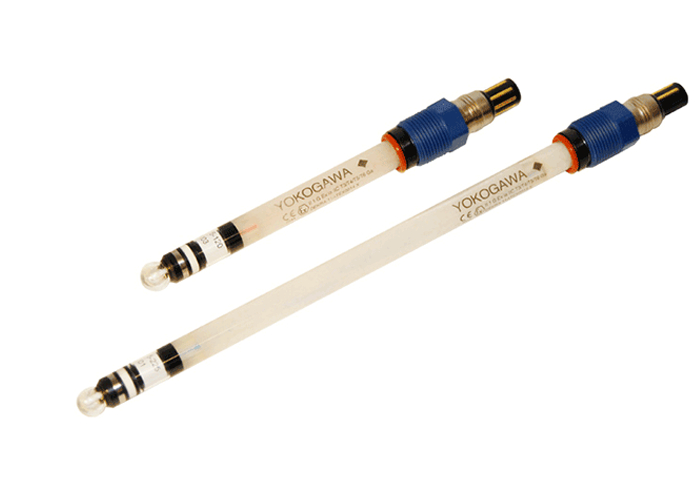

pH Sensor SC25V with External Liquid Earth and Built-in Temperature Sensor

For pH measurement and control, stable, reliable, and accurate readings are essential. The SC25V pH sensor is engineered to deliver consistent, precise results in all applications.

The integrated temperature sensor is positioned near the pH measuring glass, enhancing temperature compensation accuracy and, consequently, pH measurement precision. The large titanium liquid earth minimizes interference from stray or ground loop currents that could compromise the reference sensor.

Key Features

External titanium Liquid Earth for measurement stability
Integrated Pt1000 in pH compartment for highly accurate temperature compensation
Certified for use in Hazardous areas
Versatile installation options: in-line, immersion, or off-line
CIP and Steam cleaning compatible*
Operational up to 130°C / 266°F
Effective in low conductivity applications (from 10 μS/cm)
SC25V-ALP25 and -BLP25: Designed for chemically harsh environments and high temperatures
SC25V-AGP25 and -BGP25: Suitable for general-purpose applications
Available with ID-chip for compatibility with SENCOM platform

Measuring Elements

pH glass electrode
Silver/silver chloride reference
Solid platinum electrode
Pt1000 temperature sensor

Wetted Parts

Sensor body/shaft: AR-Glass, PEEK
Earthing ring: Titanium
Measuring sensor: Glass (type G or L)
O-ring: Viton (EPDM back-up)
Reference junction: Porous PTFE

Functional Specifications (at 25°C)

Parameter	Specification
Isothermal point	pH 7 / 3.3M KCl
Reference system	Ag/AgCl with saturated KCl
Glass impedance	G-Glass: 200 MΩ nominal L-Glass: 775 MΩ nominal
Junction resistance	< 5 kΩ
Liquid outlet	Non-flow single junction
Temperature element	Pt1000 to IEC 751
Asymmetry potential	8 ± 15 mV
Slope	> 96% (of theoretical value)
Sensor length	120 mm and 225 mm

Note: The integrated temperature sensor is for process compensation and indication only, not for process temperature control.

Dynamic Specifications

Response time pH: t₉₀ < 15 sec. (for 7 to 4 pH step)
Response time temperature: t₉₀ < 90 sec. (for 10°C step)
Stabilization time pH: < 2 min. (for 0.02 pH deviation during 10 sec.)

Operating Range

Parameter	Range
pH	0 to 14
Temperature (G-Glass)	-10 to +80°C (14 to 176°F)
Temperature (L-Glass)	+15 to +130°C (59 to 266°F)
Pressure	0 to 10 barg (0 to 145 psi) 0 to 0.985 barg (0 to 14.36 psi) (under pressure)
Conductivity	> 10 µS/cm

Note: Damaged screw threads may affect maximum process pressure tolerance.

Note: While the pH operating range at room temperature is 0-14, operation at high temperatures or outside 2-12 pH will significantly reduce sensor lifespan.

Note: For intrinsically safe versions, the upper process temperature is limited by the ambient temperature (tₐₘₙ) defined for each temperature class (T3, T4, T5, and T6).
