KAW102 Universal Industrial Pressure Sensor for Gas and Liquid
Product Introduction
The KAW102 Universal Industrial Pressure Sensor for Gas and Liquid is specifically engineered for industrial applications. It is highly suitable for measuring the pressure of various media, including liquids, gases, and steam. This sensor utilizes a ceramic capacitive pressure sensing element, ensuring reliable and accurate pressure measurements.
It offers a pressure measurement range that includes 0 - 1MPa and 0 - 2MPa, capable of measuring both gauge pressure and sealing pressure. With an output signal of 0.5 - 4.5V and a power supply of 4.75 - 5.25 VDC, it can integrate well with different industrial systems. The sensor is designed to operate stably within a wide temperature range, with an ambient and working temperature of -40℃ to 110℃, and a compensation temperature range of -20℃ to 70℃.
Features
Product Description
| Applicable media | Liquid, gas and steam |
| Pressure range | 0-1MPa,0-2MPa |
| Cell | Ceramic capacitive pressure sensor |
| Pressure measurment | Gauge Pressure, Sealing pressure |
| Output | 0.5-4.5V |
| Power supply | 4.75-5.25 VDC |
| Accuracy(linearity,Hysteresis and Repeatability) | 1%F.S. |
| Compensation temperature | -20~70ºC |
| Ambient temperature | -40~110ºC |
| Working temperature | -40~110ºC |
| Temperature drift(zero) | ±0.15% F.S. (-20~70ºC) |
| Temperature drift(full range) | ±0.15% F.S. (-20~70ºC) |

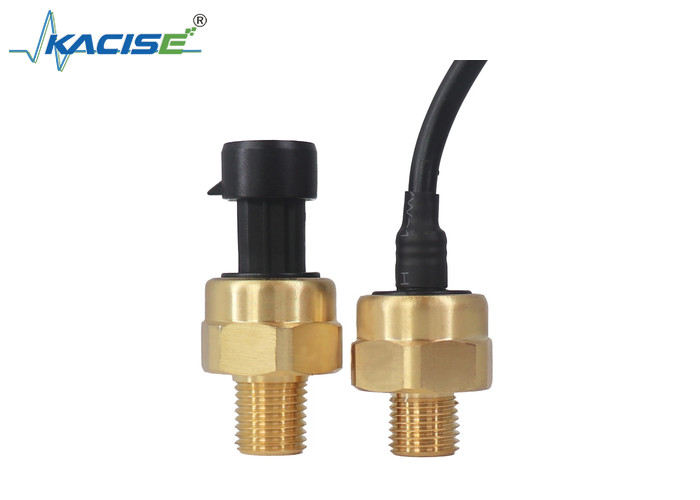

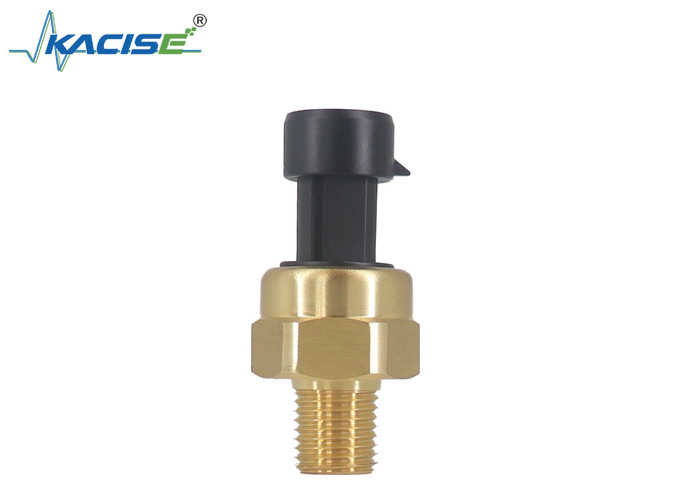

| Electrical connection | Cable Outlet/Parkard Connector |
| Mechanical connection | G1/4, NPT 1/4 Male |
| Housing material | Brass |
