Place of Origin:
China (Mainland)
Hàng hiệu:
Kacise
Chứng nhận:
certificate of explosion-proof, CE
Model Number:
KSQA08

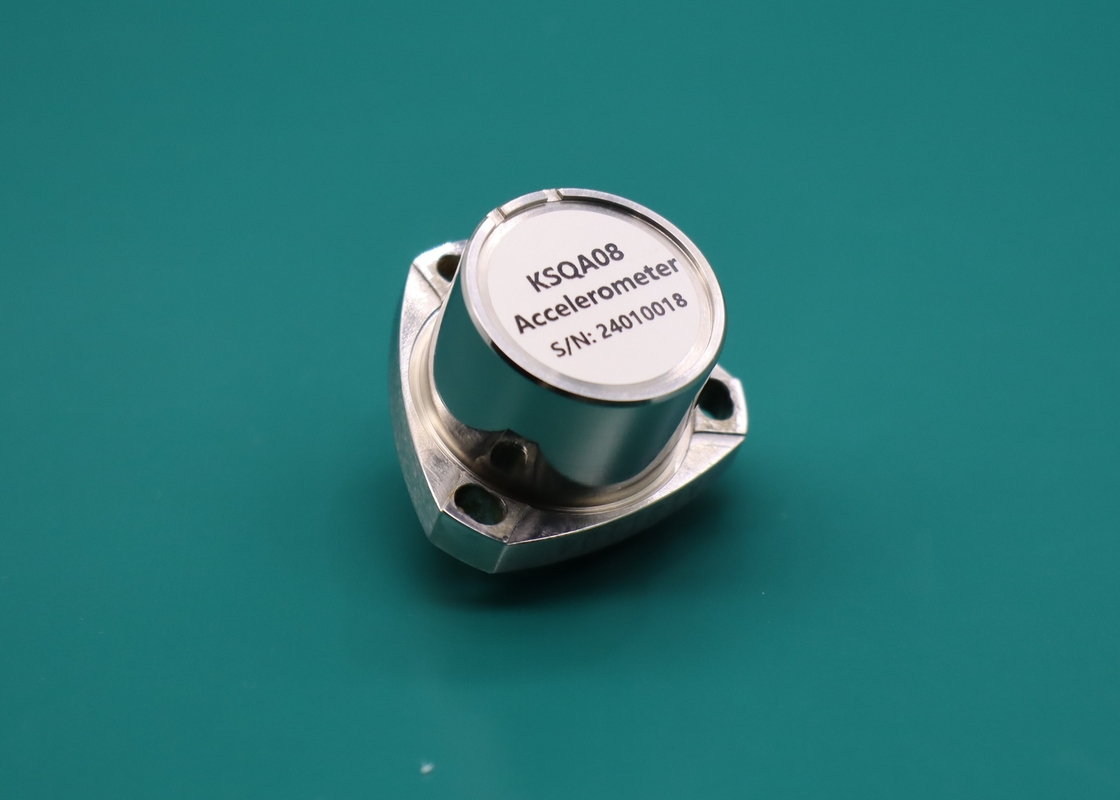

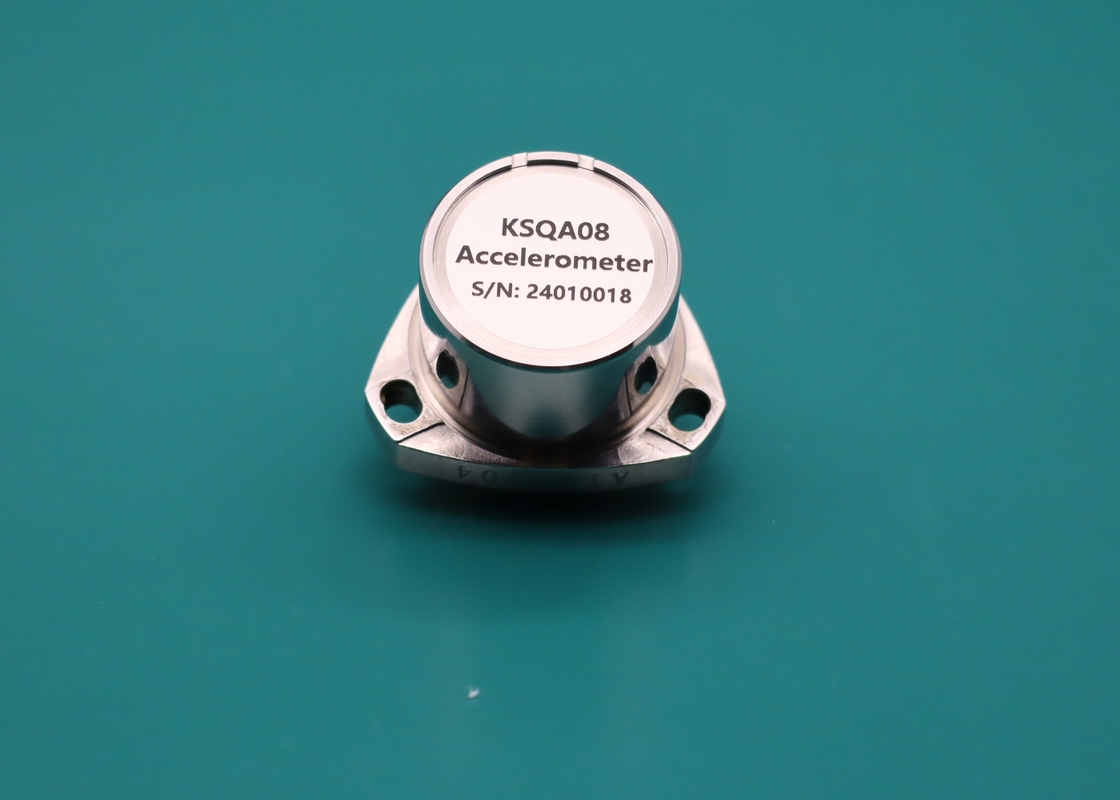

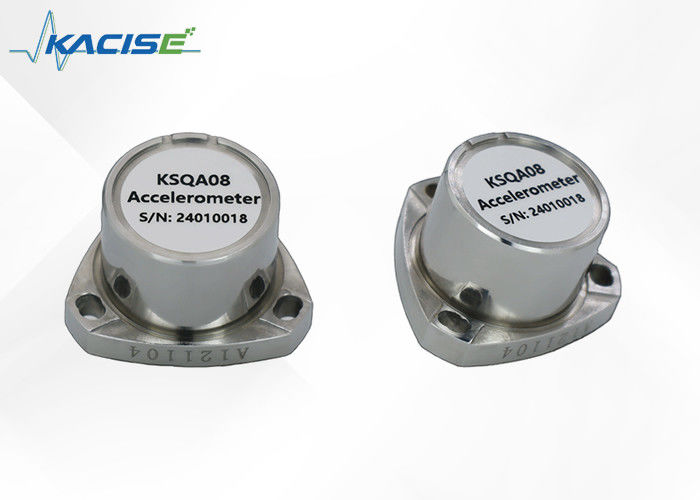

The Quartz Flexible Accelerometer is a highly precise instrument that is composed of a quartz glass flexible support and an advanced servo circuit based on the principle of inertia. It accurately detects acceleration and provides an output that is proportional to the input acceleration.
The accelerometer has a current output form of high output impedance, which allows users to choose their preferred sampling resistance without compromising on the stability of their system.
Our Quartz Flexible Accelerometer has a wide range of products, ranging from high-precision μg KSQA07 accelerometer designed for satellite microgravity measurement to the low-cost, anti-harsh environment KSQA13 accelerometer. We offer dozens of different types of accelerometers that are widely used in a variety of fields, including aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering and more. These accelerometers provide essential signals for navigating, guiding, controlling, leveling, monitoring, and other systems.
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range
● Triangle precision mounting flanges
● Application in the inertial navigation system of the new generation weapon
● Two models are available
| Parameter | KSQA08A | KSQA08B |
| Power supply parameter | ||
| Power Voltage | ±12~±18V DC | |
| Product performance | ||
| Input Range | ±20g | ±20g |
| Bias | ≤5mg | ≤5mg |
| Temperature Sensitivity | ≤10μg/°C | ≤30μg/°C |
| One-month Composite Repeatability (1σ) | ≤10μg | ≤30μg |
| Six-month Composite Repeatability (1σ) | ≤30μg | |
| Scale Factor | 1.2 ~ 1.6mA/g | 1.2 ~ 1.6mA/g |
| Temperature Sensitivity | ≤10ppm/°C | ≤50ppm/°C |
| One-month Composite Repeatability (1σ) | ≤10ppm | ≤40ppm |
| Six-month Composite Repeatability (1σ) | ≤50ppm | |
| Linearity | ≤10μg/g2 | ≤40μg/g2 |
| Threshold | <1μg | <5μg |
| Resolution | <1μg | <5μg |
| Size | Ø25.4×30mm | Ø25.4×30mm |
| Weight | ≤70g | ≤70g |
| Environment | ||
| Operating Temperature | -45°C~+80°C | |
| Storage temperature | -55°C～+80°C | |
| Shock | 100g | |
| Vibration Peak Sine | 15g@20Hz ~ 2000Hz | |
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
The Accelerometer Sensor product technical support and services include:
- Troubleshooting assistance for installation and setup
- Technical consultation for product usage and optimization
- Warranty information and support for product defects
- Repair and replacement services for damaged or faulty products
- Firmware and software updates to improve product performance
- Expert guidance for integrating the sensor into various applications
Product Packaging:
Our Accelerometer Sensor is packaged in a sturdy cardboard box with foam inserts to protect it during shipping. The box measures 6 inches x 4 inches x 2 inches and has a weight of 6 ounces.
Shipping:
We offer shipping worldwide via standard shipping methods such as USPS, UPS, and FedEx. Shipping rates and delivery times will vary based on your location and chosen shipping method. Once your order is processed, you will receive a tracking number so that you can track your package until it arrives at your doorstep.
