Place of Origin:
CHINA
Hàng hiệu:
KACISE
Chứng nhận:
CE
Model Number:
GXPS620
Băng hình
Băng hình
Băng hình

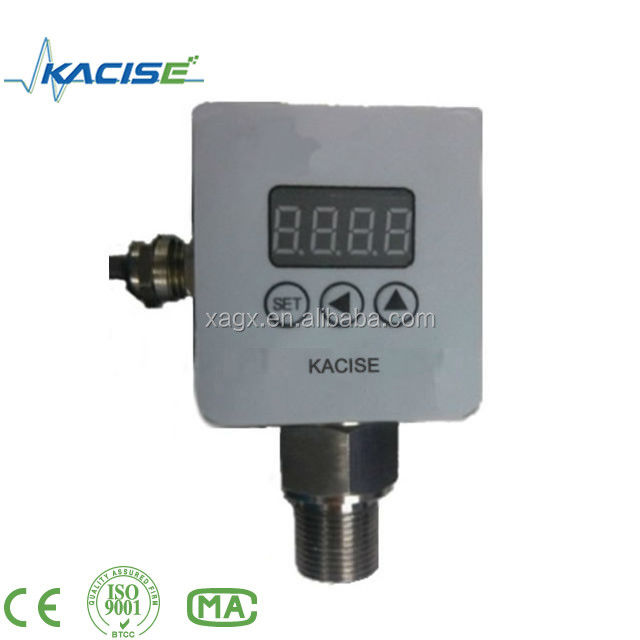

Display type water pressure sensor switch
1. Parameter
Spec. | Value | |
Pressure range | -100…0~35…100Kpa | |
Load pressure | 2 times nominal value pressure (2X) | |
Rupture pressure | 4 times nominal value pressure (4X) | |
Accuracy | ±0.5%F.S, ±1%F.S, ±2%F.S, optional | |
Stability | Typical value 0.25%F.S/year, | |
Operating temperature | -20°c ~60°c | |
Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti | |
Output signal | Two relay output, with normal close & normal open output | |
Life span of switch | More than 1, 000, 000 times | |
Power supply | 24±10%Vdc | |
Contact load | 0.5A 125VAC/1A 30VDC | |
Insulation | >100M Ω@50V | |
Pressure port | M20×1.5, G1/4, G1/2, R1/2, NPT1/2 | |
Pressure type | G, S | Response time : 10ms |
EMI/EMC | EMI: EN50081-1/-2 ; EMC: EN50082-2 | |
2. Electronic interface and signals definition
Electrical connection | ||||||||
Color | Red | Black | Green | Blue | Yellow | Brown | Orange | Purple |
Founction | Power + | Power - | common terminal1 | Normal close 1 | Normal open1 | Common terminal2 | Normal close 2 | Normal close 2 |
| ||||||||
3. Feature
1). Accuracy: 0.5% F.S, 1.0%F.S, 2.0%F.S
2). Field display
3). Adjustable alarm output
4). Two relay output
5). Various pressure range switch output
4. Application
1). Hydraulic control
2). Petrochemical
3). Pressure instrument
4). Automatic checkout system
5). Fluid pressure measurement
6). Chemical metallurgy
5. Product picture
| The quality principle: Quality is the best sales |
| Payment :We accept T/T, PayPal, Western Union, MoneyGram , Escrow |
| Shipping: |
| 1.All parts will be shipped out within 1 - 3 working days after comfirm the payment |
| 2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex |
| 3.We are not responsible for force majeure accidents, delays or other issues, like the shipping service. |
| 4.Any import fees or charges are afforded by the buyers |
| Service : |
| 1.Provide you one-stop service of electronic components |
| 2. Competitive price advantage help to save your purchase cost and bring in you more profits |
| 3. Having advanced e-commerce capabilities |
| 4. Quick and accurate delivery and flexible logistics support |
| 5. Personalized service, based on your programs and ideas to serve you |
