GPS Tracking Solution Capacitance Fuel Level Sensor with temperature of probe resist -50~ 250 °C

 Description of GPS tracking solution capacitance fuel level sensor

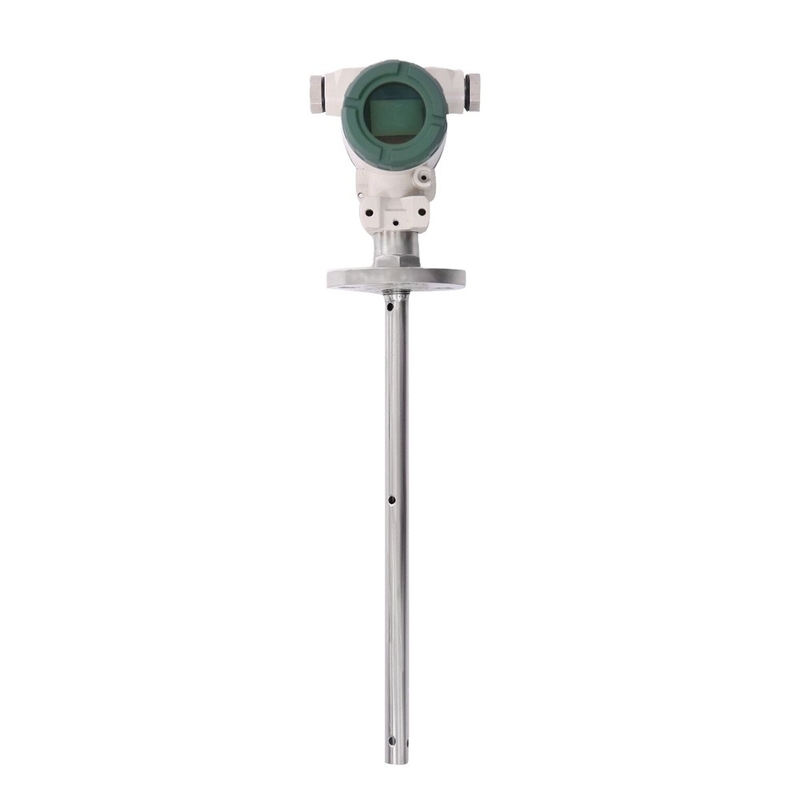

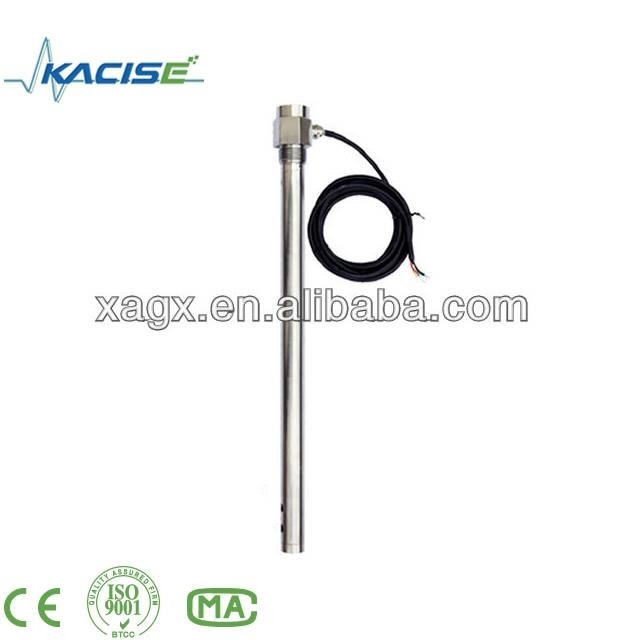

KCF capacitance level sensor is used to continuously detect fuel level by measuring the capacitance variations as the level changes.

Feature of GPS tracking solution capacitance fuel level sensor

• Suitable for vehicle, truck, coach, agrimotor, GPS fleet management, GPS tracking system, generator set, construction machinery and more.

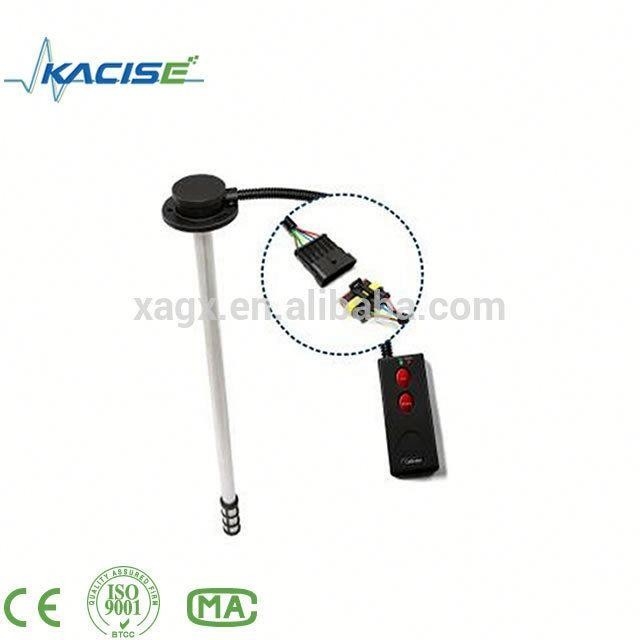

• KCF can be easily shortened to fit different tank depths in the field, and the parameters can be conveniently calibrated with an external calibrator.
• Used for diesel, gasoline and kerosene level measuring.
• Compatible with GPS market leading GPS tracker and software to monitor vehicle fuel level at any time.

Specification of GPS tracking solution capacitance fuel level sensor

• Supply voltage : 10~32V or 5V;
• Signal output : 0.5 ~ 4.5V, 0~5V, RS232,RS485,can be customized;
• Resolution ≤1mm;
• Assembly: SAE 5-bolt flange mount, other assembly methods are available;
• Accessories: 5 x M5 screws and 2mm thick NBR gasket. If installing on a gas tank, we recommend the optional 2mm thick FPM gasket.
• Protection rank : IP65
• Operational temperature : - 40℃ ~ +85℃

Dimension of GPS tracking solution capacitance fuel level sensor

Product Models of GPS tracking solution capacitance fuel level sensor

Packing Details  : Standard Export Packing

Delivery Details  : 3-15 days after payment
